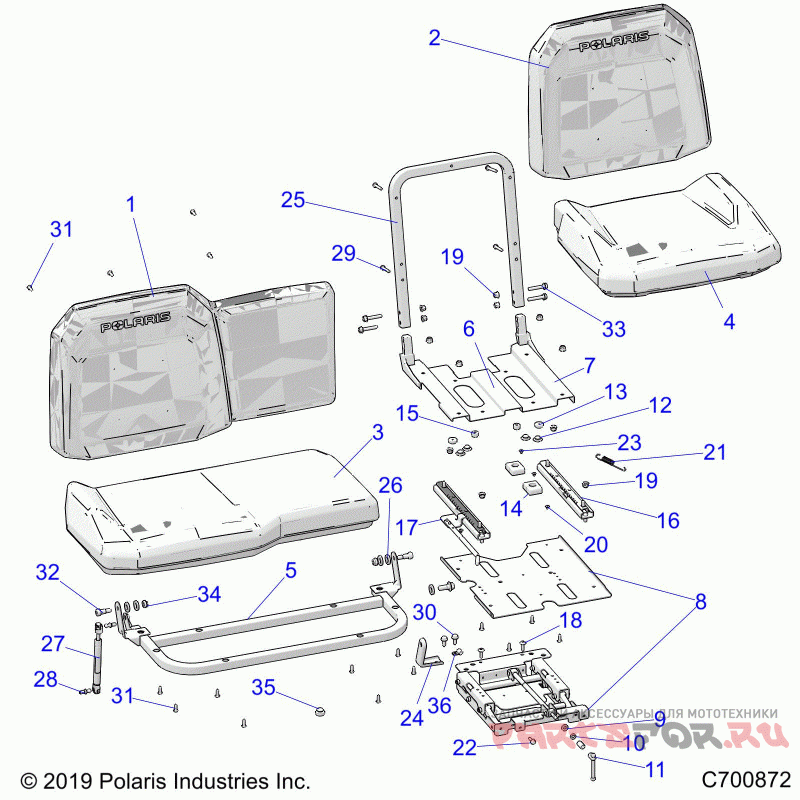

Body, seat asm. and slider - r20rrsd4c1 (c700872)

Polaris Ranger RANGER 902D EU/TRACTOR (R20RRED4F1/N1/SD4C1)

Polaris Ranger
#oem кодцена
1
2689777
ASM-SEAT,BACK,60,BLK [FROM 11/4/19]
1
2687919-070
ASM-SEAT,BACK,60,BLK [TO 11/4/19]
10
7556254
WSHR-FL,8.4X16.0X1.6 EP
12
5413441
GROMMET, SEAT, BASE
13
5414659
BUMPER-SEAT
14
5452641
SLIDE-SEAT,CENTER
15
5454922
WASHER 18X6.5
16
7081852
SLIDE, SEAT, LH
17
7081853
SLIDE, SEAT, RH
18
7519650
SCR-TXTH-M6X1.0X25 ZFB
19
7547332
NUT-M8X1.25, FLG, NYLOC-OLIVE D
2
2689773
ASM-SEAT,BACK,40,BLK [FROM 11/4/19]
2
2687921-070
ASM-SEAT,BACK,40,BLK [TO 11/4/19]
20
7621472
RIVET 3/16(.063-.250)ST-ST-LF-B
21
7082394
SPRING-SEAT SLIDER
22
7518529
SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
23
7621467
RVT-3/16(.251-.375)ST-ST-LF-B
24
5263494-458
BRKT-SEAT PIVOT, BLK
25
5340280-458
TUBE-SEAT,BACK,BLK
26
5813829
Washer, Seat Belt, Rubber
27
7044799
SHOCK-GAS, 285MM
28
7082301
BALL-END
29
7512093
SCR-#14X1-3/4 LG,HI/LO/TAPER-M
3
2688635-070
ASM-SEAT,BTM,60,VINYL,BLK [TO 11/4/19]
3
2689793
ASM-SEAT,BTM,60,VINYL,BLK [FROM 11/4/19]
30
7518555
SCR-TFHFL-M8X1.25X20 CHS ZOD
31
7519045
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
32
7519355
SCR-SHS-M10X1.5-M12X16 RIE
33
7519738
SCR-HXFL-M8X1.25X45 8.8 ZOD
34
7547442
NUT-HEX M10X1.5 8 ZOD NYL
35
5412067
BUMPER-RUBBER(10)
36
7081246
CLAMP, WIRE/TUBE .25 DIA
4
2689775
ASM-SEAT,BTM,40,TR,BLK [FROM 11/4/19]
4
2688985-070
ASM-SEAT,BTM,40,VINYL,BLK,TR [TO 11/4/19]
5
1023099-458
WELD-SEAT BASE,PASS,M.BLK
6
2689858
ASM-SLIDER, ADJUSTER,RGR [INCL. 7-23]
7
1022741-329
WELD-SLIDE,SEAT,TOP,BLK
8
1025290-458
ASM-SEAT ADJUSTER,T-KNOB,BLK [INCL. 9-11]
