Electrical, wire harness - r20rre99f1 / f9 / fk / s99c1 / c9 / ck / f1 / f9 / fk (c700341) для мотовездеходов Polaris Ranger RANGER 1000XP EPS EU/TR/ZUG (R20RRE99F1/F9/FK/S99C1/C9/CK/S99F1/F9/FK/P99CF/FF) (2020)

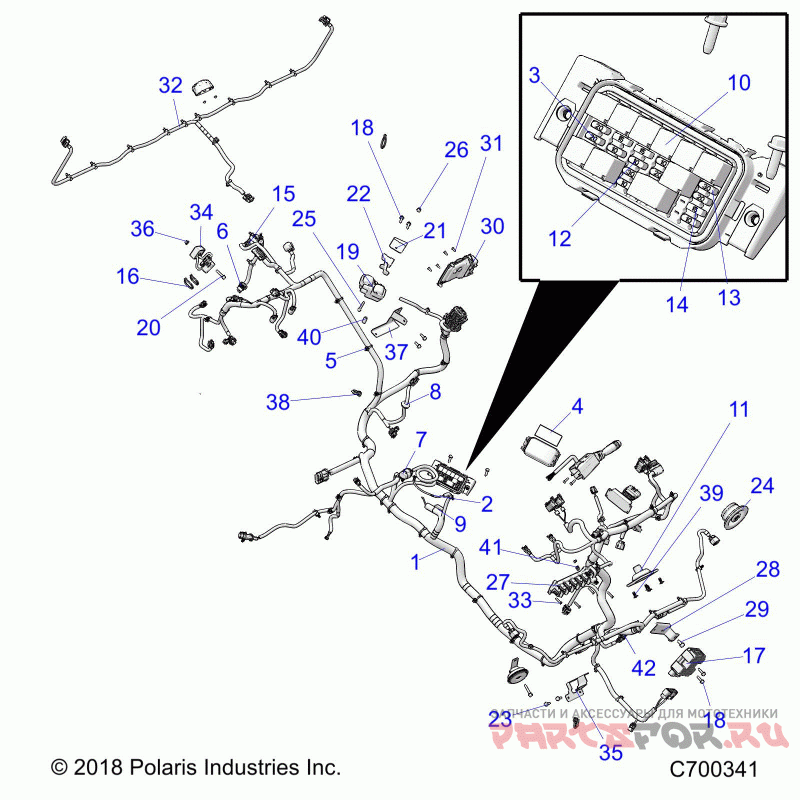

Electrical, wire harness - r20rre99f1 / f9 / fk / s99c1 / c9 / ck / f1 / f9 / fk (c700341)

Polaris Ranger RANGER 1000XP EPS EU/TR/ZUG (R20RRE99F1/F9/FK/S99C1/C9/CK/S99F1/F9/FK/P99CF/FF)

Electrical, wire harness - r20rre99f1 / f9 / fk / s99c1 / c9 / ck / f1 / f9 / fk (c700341)

oem код

название

цена

2415380

HARNESS-CHASSIS,RGR,1K,EU ([INCL. 2-16 ])

4016819

RELAY - SPST SERIES 303 SEALED

5814560

Уплотнитель резиновый

2434016

FUSE, 10 AMP

2434015

FUSMAIN, 30 AMP

4010859

FUSE-MINI BLADE, 15 AMP

4012260

COVER-FUSEHOLDER

7080138

PANDUIT STRAP

4016868

REGULATOR-3PH,50A,SERIES,HISPD

7520715

SCR-TFHFL-M6X1.0X25,ZY3

2876049

COIL-EFI

7518612

SCR-HXFL-M6X1.0X35 8.8 ZOD

5263891

BRKT-COIL MOUNT

5436577

SPACER-COIL MOUNT

7518529

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

5417082

GROMMET-HOOD LINER,SPLIT

7518780

SCR-M6X1.0X40,HX/SOC/CP-B

7547274

NUT-M6 FLANGE,NYLOC

4016007

BLOCK-TERMINAL,6 POS ([INCL. FUSE PLUG AND COVER])

COVER,TB,JCASE

FUSE-CARTRIDGE,40A

PLUG,ACCY TB

BRKT-MOUNT,REG

SCR-TFHFL-M8X1.25X20 CHS ZOD

4012811

FUSE-PARK,20 AMP

4014125

ECM-NO START,ME17

7519091

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

2413922

HARNESS,BOX,RANGER,EU ([TO 12/20/2020])

2415135

HARNESS,BOX,RANGER,EU ([FROM 12/20/2020])

7519731

SCR-TXPH-#14 X .75 HI-LO RIE

4012829

RELAY, SOLID STATE,9A,LONG LD

5264313-329

BRKT-ROUTING,BLK

7547339

Гайка

5264314-329

BRKT-HARNESS ROUTING,BLK

7082403

CLIP-EDGE,1-3MM THICKNESS

7670090

CLIP, PLASTIC DART, NYLON

5133658

SPACER-COIL,FRONTIER

7547270

NUT-HXFLGHD,M6,SERRATED

4018636

JUMPER-BRAKE PRESSURE SWITCH ([E99F1/F9/FK][S99F1/F9/FK])

7081496

CLIP, ROUTING

4012558

CONNECTOR-7-WAY,EURO TRAILER

4012170

COVER, DIAGNOSTIC, W/CLIP

5415308

GROMMET-USB, 3MM 22MM DIA

2410881

BREAKER-CIRCUIT,20 AMP SEALED
