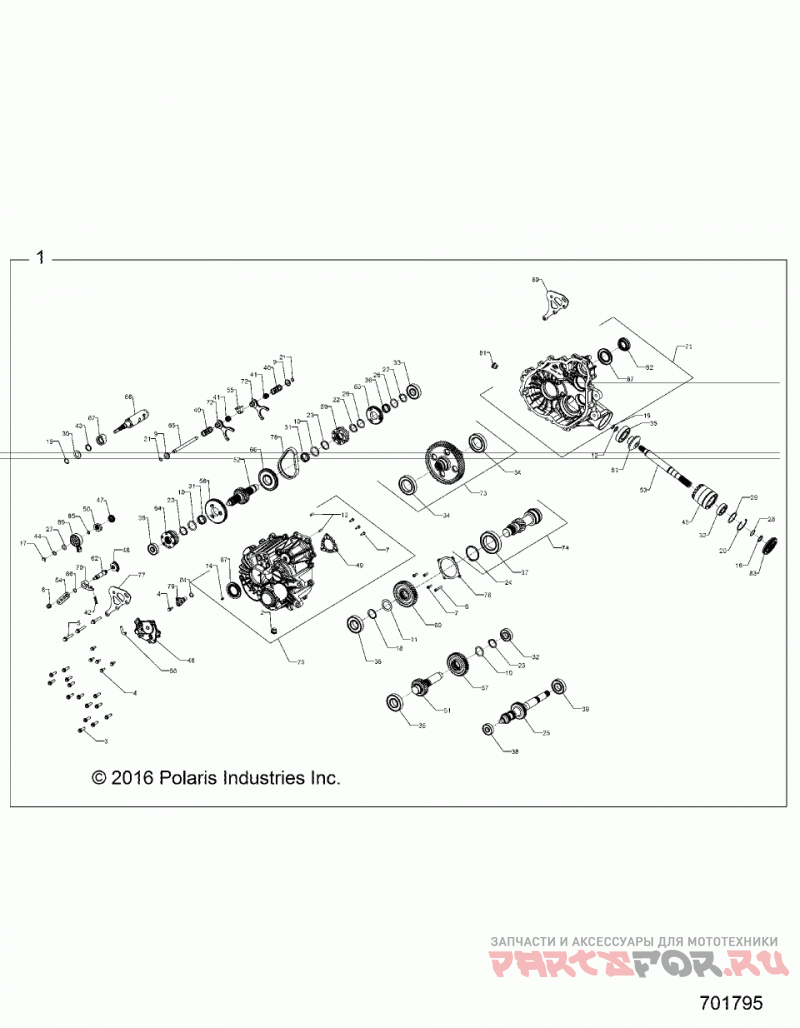

Drive train, main gearcase internals - z19vdm99al / r99ak / bk (701795)

Polaris Ranger Z19VDE99AD/BD/LD/AK/BK/AN/BN/L99AC/BC/M99AL/R99AK/BK/K99AD/AK/AN/BD/BK/BN RZR XP 1000

Polaris Ranger
#oem кодцена
1
1333536
ASM-GEARCASE,COMPLETE
2
3234756
PLUG M18 X 1.5, MAGNETIC
3
3234898
SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
4
3235206
SCREW, HEX FLANGE HEAD M6 X 1 X 20
5
3235207
SCREW HEX FLANGE M8 X 50
6
3235208
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
7
3235332
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
8
3235210
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
9
3234091
WASHER CUP
10
3235211
WASHER 32.3 X 42 X 1.5
11
3235212
WASHER 35.6 X 50 X 1.5
12
3235213
WASHER 17.3 X 25 X 1.5
13
3234330
PIN, DOWEL 6 X 20
14
7043746
PIN, SPRING SLOTTED 6 X 12
15
3233045
RING, RETAINING BASIC EXTERNAL 0.75
16
3233106
RING, RETAINING BASIC EXTERNAL 0.984
17
3233834
RING SNAP
18
3233364
RING, RETAINING SHAFT, DIA. 1.375
19
3234318
RING, RETAINING EXTERNAL SHR-66
20
3234269
RING, RETAINING BASIC INTERNAL 2.047
21
3234090
RING, RETAINING BASIC EXTERNAL 0.428
22
3234205
Стопорное кольцо
23
3235214
RING, EXTERNAL SNAP 32 X 2.4
24
3235216
RING, RETAINING VSH-237
25
3235953
SHAFT, INPUT 45T/20T/25T
26
3233378
WASHER, THRUST 1.187 X 1.5 X 0.06
27
3234642
WASHER, THRUST 0.446 X 0.88 X 0.025
28
3234272
SHIM 1.18 OD X 0.995 ID
29
3234273
SHIM 2.04 OD X 1.63 ID
30
3235883
SPACER, 19.4 X 34 X 2
31
3233014
BEARING, NEEDLE CAGE ASSY
32
3233019
BEARING, BALL 6205 C3 25X52X15
33
3233020
BEARING, BALL 6305 C3, 25 X 62 X 17
34
3233268
BEARING, BALL 6010 C3 50X80X16
35
3234065
BEARING, BALL 6207 C3 35X72X17
36
3233384
BEARING, NEEDLE CAGE ASSY
37
3235218
BEARING, BALL 6012 C3 60 X 95 X 18
38
3234652
BEARING, BALL 6303 17 X 47 X 14
39
3235496
BEARING, BALL 6206RSH2 STD 30X62X16
40
3234078
SPRING, COMPRESSION 0.92 O.D. X 2
41
3234089
SPRING, COMPRESSION 0.46 I.D. X 0.73
42
3234578
SPRING, COMPRESSION DETENT
43
3235885
Пружина
44
3235327
SPRING, WASHER
45
3234278
TUBE, SNORKEL MACH
46
3235954
COVER, SECTOR GEARS, MACH
47
3233839
GEAR, SECTOR 16T
47
3233839
GEAR, SECTOR 16T
48
3233832
GEAR, SECTOR 31T
48
3233832
GEAR, SECTOR 31T
49
3235456
PLATE, PARK 12-FACE
49
3235456
PLATE, PARK 12-FACE
50
3235982
STAR, DETENT
50
3235982
STAR, DETENT
51
3235223
SHAFT, IDLER 29T
51
3235223
SHAFT, IDLER 29T
52
3235224
SHAFT, REVERSE 29T
52
3235224
SHAFT, REVERSE 29T
53
3235394
SHAFT, FRONT OUTPUT
53
3235394
SHAFT, FRONT OUTPUT
54
3235227
BELLCRANK 92 DEGREE
54
3235227
BELLCRANK 92 DEGREE
55
3234073
COLLAR, SHIFT
55
3234073
COLLAR, SHIFT
56
3234230
TUBE, VENT 90 -1/4
56
3234230
TUBE, VENT 90 -1/4
57
3235229
GEAR, 44T STAGE 2
57
3235229
GEAR, 44T STAGE 2
58
3235232
GEAR, LOW 67T
58
3235232
GEAR, LOW 67T
59
3235233
ENGAGEMENT DOG, 6-FACE
59
3235233
ENGAGEMENT DOG, 6-FACE
60
3235236
GEAR, 46T STAGE 3
60
3235236
GEAR, 46T STAGE 3
61
3235237
GEAR, 13T SNORKEL
61
3235237
GEAR, 13T SNORKEL
62
3235238
SHAFT SHIFT
62
3235238
SHAFT SHIFT
63
3235396
GEAR, 49T
63
3235396
GEAR, 49T
64
3235457
SHIFT DOG, PARK
64
3235457
SHIFT DOG, PARK
65
3235542
RAIL, SHIFT SHAFT
65
3235542
RAIL, SHIFT SHAFT
66
3235762
SPROCKET 48T 6-FACE
66
3235762
SPROCKET 48T 6-FACE
67
3235983
PARK CAM
67
3235983
PARK CAM
68
3235984
DRUM, SHIFT MACH
68
3235984
DRUM, SHIFT MACH
69
3235558
WELDMENT, REAR MOUNT BRACKET
69
3235558
WELDMENT, REAR MOUNT BRACKET
70
3235452
SUBASSEMBLY, PAWL DETENT, ROLLER
70
3235452
SUBASSEMBLY, PAWL DETENT, ROLLER
71
3235514
SUBASSEMBLY, LH CASE
71
3235514
SUBASSEMBLY, LH CASE
72
3235920
SUBASSEMBLY, SHIFT FORK
72
3235920
SUBASSEMBLY, SHIFT FORK
73
3235955
SUBASSEMBLY OUTPUT
73
3235955
SUBASSEMBLY OUTPUT
74
3235956
SUBASSEMBLY PINION
74
3235956
SUBASSEMBLY PINION
75
3235957
SUBASSEMBLY RH COVER
75
3235957
SUBASSEMBLY RH COVER
76
3235241
COVER, BEARING CENTER DRIVE
76
3235241
COVER, BEARING CENTER DRIVE
77
3235559
BRACKET, REAR MOUNT
77
3235559
BRACKET, REAR MOUNT
78
3235633
CHAIN SILENT, TYPE 103 .25P X .48W X 58L
78
3235633
CHAIN SILENT, TYPE 103 .25P X .48W X 58L
79
4013908
Датчик скорости
79
4013908
Датчик скорости
80
7662299
SWITCH, ROTARY 2 PIN RESISTIVE
80
7662299
SWITCH, ROTARY 2 PIN RESISTIVE
81
3234755
PLUG M18 X 1.5
81
3234755
PLUG M18 X 1.5
82
3235495
SEAL, TRIPLE LIP, VITON HELIX 30 X47
82
3235495
SEAL, TRIPLE LIP, VITON HELIX 30 X47
83
3235658
SEAL, TRIPLE LIP, VITON 25 X 80 X 10
83
3235658
SEAL, TRIPLE LIP, VITON 25 X 80 X 10
84
3234302
Кольцо уплотнительное
84
3234302
Кольцо уплотнительное
85
3233836
O-RING, -12 VITON
85
3233836
O-RING, -12 VITON
86
3233828
O-RING, -14 VITON
86
3233828
O-RING, -14 VITON
87
3235052
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
87
3235052
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
