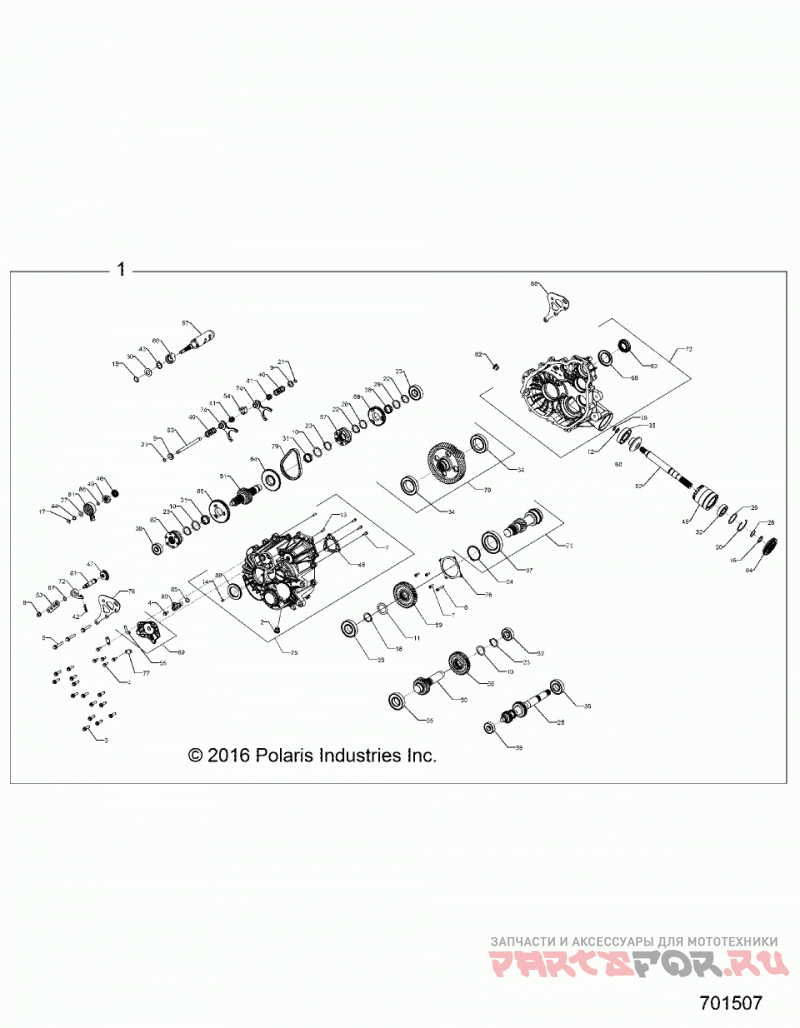

Drive train, main gearcase internals - z19vde99ad / bd / ld / ak / bk / an / bn / l99ac / bc / k99ad / ak / an / bd / bk / bn (701507)

Polaris Ranger Z19VDE99AD/BD/LD/AK/BK/AN/BN/L99AC/BC/M99AL/R99AK/BK/K99AD/AK/AN/BD/BK/BN RZR XP 1000

Polaris Ranger
#oem кодцена
1
1333694
ASM-GEARCASE,COMPLETE
2
3234756
PLUG, M18 X 1.5, MAGNETIC
3
3234898
SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
4
3235206
SCREW, HEX FLANGE HEAD, M6 X 1 X 20
5
3235207
SCREW, HEX FLANGE M8 X 50
6
3235208
SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
7
3235332
SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
8
3235210
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
9
3234091
WASHER, CUP
10
3235211
WASHER, 32.3 X 42 X 1.5
11
3235212
WASHER, 35.6 X 50 X 1.5
12
3235213
WASHER, 17.3 X 25 X 1.5
13
3234330
PIN, DOWEL, 6 X 20
14
7043746
PIN, SPRING, SLOTTED 6 X 12
15
3233045
RING, RETAINING BASIC, EXTERNAL 0.75
16
3233106
RING, RETAINING BASIC, EXTERNAL 0.984
17
3233834
Кольцо
18
3233364
RING, RETAINING, SHAFT, DIA. 1.375
19
3234318
RING, RETAINING, EXTERNAL SHR-66
20
3234269
RING, RETAINING BASIC, INTERNAL 2.047
21
3234090
RING, RETAINING BASIC, EXTERNAL 0.428
22
3234205
RING, RETAINING,
23
3235214
RING, EXTERNAL SNAP, 32 X 2.4
24
3235216
RING, RETAINING, VSH-237
25
3235763
SHAFT, INPUT, 42T/20T/29T
26
3233378
WASHER, THRUST, 1.187 X 1.5 X 0.06
26
3233378
WASHER, THRUST, 1.187 X 1.5 X 0.06
27
3234642
WASHER, THRUST, 0.446 X 0.88 X 0.025
27
3234642
WASHER, THRUST, 0.446 X 0.88 X 0.025
28
3234272
SHIM, 1.18 OD X 0.995 ID
28
3234272
SHIM, 1.18 OD X 0.995 ID
29
3234273
SHIM, 2.04 OD X 1.63 ID
29
3234273
SHIM, 2.04 OD X 1.63 ID
30
3235883
SPACER, 19.4 X 34 X 2
30
3235883
SPACER, 19.4 X 34 X 2
31
3233014
BEARING, NEEDLE, CAGE ASSY
31
3233014
BEARING, NEEDLE, CAGE ASSY
32
3233019
BEARING, BALL, 6205 C3 25X52X15
32
3233019
BEARING, BALL, 6205 C3 25X52X15
33
3233020
BEARING, BALL, 6305 C3, 25 X 62 X 17
33
3233020
BEARING, BALL, 6305 C3, 25 X 62 X 17
34
3233268
BEARING, BALL, 6010 C3 50X80X16
34
3233268
BEARING, BALL, 6010 C3 50X80X16
35
3234065
BEARING, BALL, 6207 C3 35X72X17
35
3234065
BEARING, BALL, 6207 C3 35X72X17
36
3233384
BEARING, NEEDLE, CAGE ASSY
36
3233384
BEARING, NEEDLE, CAGE ASSY
37
3235218
BEARING, BALL 6012 C3, 60 X 95 X 18
37
3235218
BEARING, BALL 6012 C3, 60 X 95 X 18
38
3234652
BEARING, BALL 6303, 17 X 47 X 14
38
3234652
BEARING, BALL 6303, 17 X 47 X 14
39
3235496
BEARING, BALL, 6206RSH2 STD 30X62X16
39
3235496
BEARING, BALL, 6206RSH2 STD 30X62X16
40
3234078
SPRING, COMPRESSION, 0.92 O.D. X 2
40
3234078
SPRING, COMPRESSION, 0.92 O.D. X 2
41
3234089
SPRING, COMPRESSION, 0.46 I.D. X 0.73
41
3234089
SPRING, COMPRESSION, 0.46 I.D. X 0.73
42
3234578
Пружина сжатия
42
3234578
Пружина сжатия
43
3235885
Пружина
43
3235885
Пружина
44
3235327
SPRING, WASHER,
44
3235327
SPRING, WASHER,
45
3234278
TUBE, SNORKEL MACH,
45
3234278
TUBE, SNORKEL MACH,
46
3233839
GEAR, SECTOR 16T,
46
3233839
GEAR, SECTOR 16T,
47
3233832
GEAR, SECTOR, 31T
47
3233832
GEAR, SECTOR, 31T
48
3235456
PLATE, PARK, 12-FACE
48
3235456
PLATE, PARK, 12-FACE
49
3235982
STAR, DETENT,
49
3235982
STAR, DETENT,
50
3235223
SHAFT, IDLER 29T,
50
3235223
SHAFT, IDLER 29T,
51
3235224
SHAFT, REVERSE 29T,
51
3235224
SHAFT, REVERSE 29T,
52
3235394
SHAFT, FRONT OUTPUT,
52
3235394
SHAFT, FRONT OUTPUT,
53
3235227
BELLCRANK, 92 DEGREE
53
3235227
BELLCRANK, 92 DEGREE
54
3234073
COLLAR, SHIFT,
54
3234073
COLLAR, SHIFT,
55
3234230
TUBE, VENT, 90 -1/4
55
3234230
TUBE, VENT, 90 -1/4
56
3235229
GEAR, 44T STAGE 2,
56
3235229
GEAR, 44T STAGE 2,
57
3235233
ENGAGEMENT DOG, 6-FACE
57
3235233
ENGAGEMENT DOG, 6-FACE
58
3235234
GEAR, 53T,
58
3235234
GEAR, 53T,
59
3235236
GEAR, 46T STAGE 3,
59
3235236
GEAR, 46T STAGE 3,
60
3235237
GEAR, 13T SNORKEL,
60
3235237
GEAR, 13T SNORKEL,
61
3235238
Вал
61
3235238
Вал
62
3235457
SHIFT DOG, PARK,
62
3235457
SHIFT DOG, PARK,
63
3235542
RAIL, SHIFT SHAFT,
63
3235542
RAIL, SHIFT SHAFT,
64
3235755
SPROCKET 48T, 6-FACE
64
3235755
SPROCKET 48T, 6-FACE
65
3235774
GEAR, LOW 64T,
65
3235774
GEAR, LOW 64T,
66
3235983
PARK CAM,
66
3235983
PARK CAM,
67
3235984
DRUM, SHIFT MACH,
67
3235984
DRUM, SHIFT MACH,
68
3235558
WELDMENT, REAR MOUNT BRACKET
68
3235558
WELDMENT, REAR MOUNT BRACKET
69
3235713
SUBASSEMBLY, SECTOR COVER
69
3235713
SUBASSEMBLY, SECTOR COVER
70
3235335
SUBASSEMBLY, OUTPUT
70
3235335
SUBASSEMBLY, OUTPUT
71
3235336
SUBASSEMBLY, PINION
71
3235336
SUBASSEMBLY, PINION
72
3235452
SUBASSEMBLY, PAWL, DETENT, ROLLER
72
3235452
SUBASSEMBLY, PAWL, DETENT, ROLLER
73
3235514
SUBASSEMBLY, LH CASE
73
3235514
SUBASSEMBLY, LH CASE
74
3235920
SUBASSEMBLY, SHIFT FORK
74
3235920
SUBASSEMBLY, SHIFT FORK
75
3235996
SUBASSEMBLY, RH COVER
75
3235996
SUBASSEMBLY, RH COVER
76
3235241
COVER, BEARING, CENTER DRIVE
76
3235241
COVER, BEARING, CENTER DRIVE
77
3235350
BRACKET, WIRE HARNESS
77
3235350
BRACKET, WIRE HARNESS
78
3235559
BRACKET, REAR MOUNT
78
3235559
BRACKET, REAR MOUNT
79
3234737
CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
79
3234737
CHAIN, SILENT, TYPE 101, .25P X .40W X 58L
80
4013908
Датчик скорости
80
4013908
Датчик скорости
81
7662299
SWITCH, ROTARY, 2 PIN RESISTIVE
81
7662299
SWITCH, ROTARY, 2 PIN RESISTIVE
82
3234755
PLUG, M18 X 1.5
82
3234755
PLUG, M18 X 1.5
83
3235495
SEAL, TRIPLE LIP, VITON HELIX 30 X 47
83
3235495
SEAL, TRIPLE LIP, VITON HELIX 30 X 47
84
3235658
SEAL, TRIPLE LIP, VITON 25 X 80 X 10
84
3235658
SEAL, TRIPLE LIP, VITON 25 X 80 X 10
85
3234302
Кольцо уплотнительное
85
3234302
Кольцо уплотнительное
86
3233836
O-RING, -12 VITON
86
3233836
O-RING, -12 VITON
87
3233828
O-RING, -14 VITON
87
3233828
O-RING, -14 VITON
88
3235052
SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
88
3235052
SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
