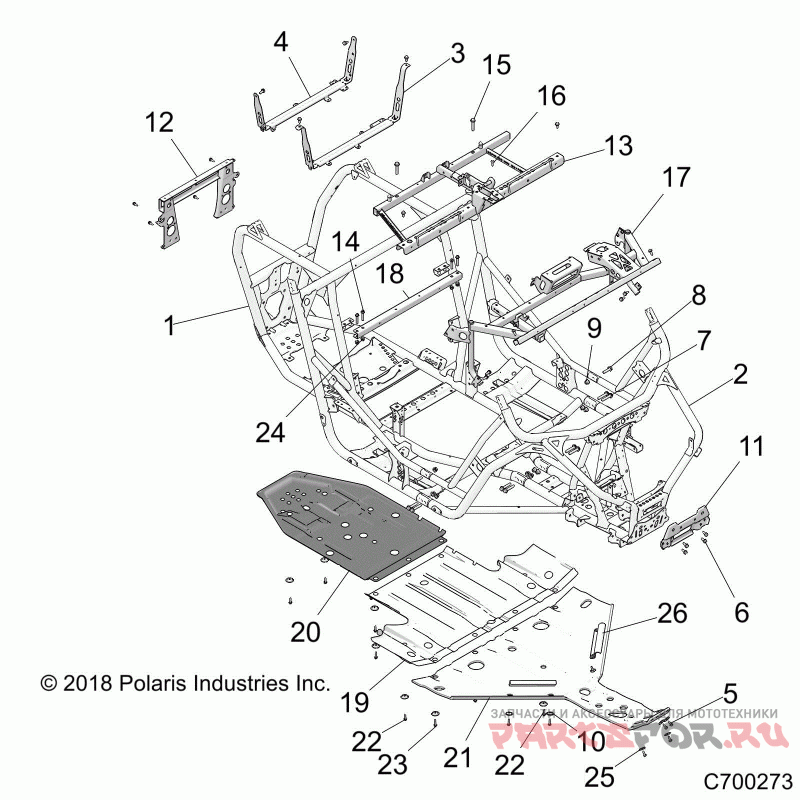

Chassis, main frame and skid plates - z19vdr99ak / bk (c700273)

Polaris Ranger Z19VDE99AD/BD/LD/AK/BK/AN/BN/L99AC/BC/M99AL/R99AK/BK/K99AD/AK/AN/BD/BK/BN RZR XP 1000

Polaris Ranger
#oem кодцена
1
1024526-458
WELD-MAIN FRAME,BLK
2
1024369-458
WELD-MAINFRAME,FRT,SWAY,BLK
3
5260947-329
BRACKET, BOX STRAP, BLACK
4
5264553-329
BRKT-BOX SUPPORT REAR,ECOAT
5
7518529
Винт
6
7518555
Винт
7
7519285
Винт
8
7519332
Винт
9
7547333
NUT, FLANGE, NYLOK
10
7556065
WASHER, SKID PLATE
11
5259449-458
BRACKET, SUSPENSION MOUNT, FRONT, MATTE BLACK
12
1019529-458
SUPPORT, REAR, BLACK
13
1022443-329
WELD-SEAT BASE,BLK
14
7516732
SCR-M8X1.25X45-HX/FL-Y
15
7518474
Болт
16
7519650
Винт
17
1024577-329
WELD-DASH,TURBO,S,ECOAT
18
5260539-329
BRKT-CLOSE OFF SUPPORT,BLK
19
5450926
SKIDPLATE-HMW,MID,RZN
20
5452769
SKIDPLATE-HMW,RR,RZN,R2
21
5455926
SKIDPLATE-HMW,FRT,BUMPER WRAP
22
7519342
SCR-TFHFL-M6X1.0X25,ZOD
23
7519344
BOLT-HXFL-M6X1.0X30 RIE TAPR
24
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
25
7558221
WASHER-.270X1.25X.060,FL-Y
26
5260402-329
BRKT-SKIDPLATE MOUNT,BLK
