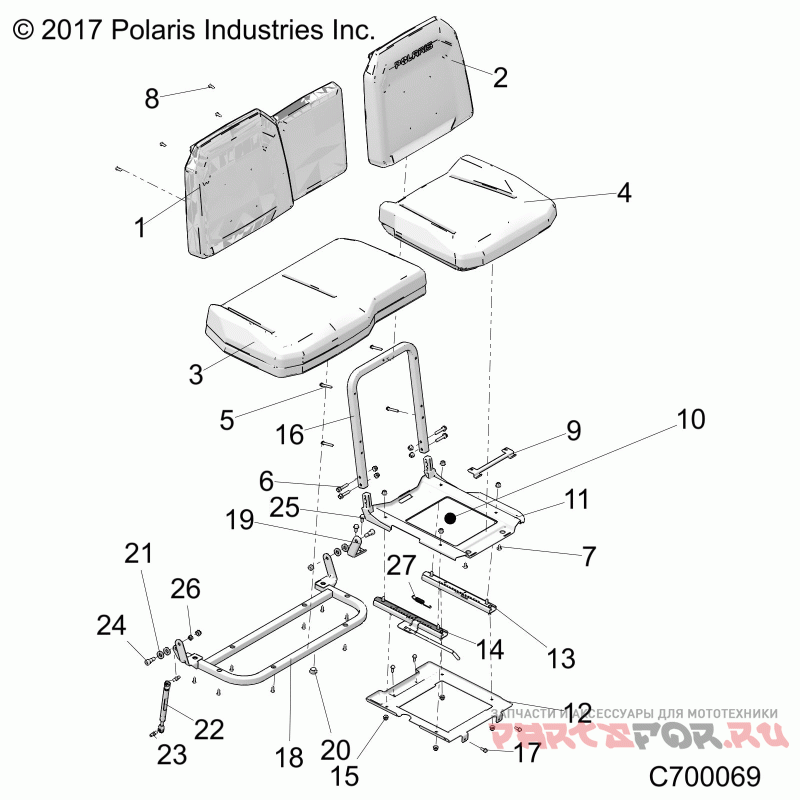

Body, seat asm. and slider - r19rse99as / a1 / a9 / b1 / b9 / bs (c700069)

Polaris Ranger R19RSE99AS/A1/A9/B1/B9/BS RANGER 1000XP PS CREW

Polaris Ranger
#oem кодцена
1
2688253
ASM-SEAT,BACK,60,BLK
2
2688266
ASM-SEAT,BACK,60,BLK/PPC
2
2688256
ASM-SEAT,BACK,40,BLK
2
2688269
ASM-SEAT,BACK,40,BLK/PPC
3
2688635-070
ASM-SEAT,BTM,60,VINYL,BLK
3
2688259
ASM-SEAT,BTM,60,BLK
3
2688272
ASM-SEAT,BTM,60,BLK/PPC
4
2684966-070
ASM-SEAT,BTM,40,BLK
4
2688262
ASM-SEAT,BTM,40,BLK
4
2688275
ASM-SEAT,BTM,40,BLK/PPC
5
7512093
SCR-#14X1-3/4 LG,HI/LO/TAPER-M
6
7519738
SCR-HXFL-M8X1.25X45 8.8 ZOD
7
7518936
SCR-M6X1X16 TR/TX-M
8
7519045
SCR-TX TRUSS-#14X3/4,HI/LO ZBK
9
5265262-458
BRKT-SEAT HINGE,DOUBLE,BLK
10
2688492
ASM-SLIDE,SEAT
11
1023808-458
WELD-SLIDE,SEAT,TOP,BLK
12
5265236-458
BRKT-SEAT,BTM,BLK
13
7081852
SLIDE,SEAT, LH
14
7081853
SLIDE,SEAT, RH
15
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
16
5340280-458
TUBE-SEAT,BACK,BLK
17
7518529
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
18
1023099-458
WELD-SEAT BASE,PASS,M.BLK
19
5263494-458
BRKT-SEAT PIVOT,BLK
20
5412067
Отбойник
21
5813829
WASHER-SEATBELT,RUBBER
22
7044799
SHOCK-GAS,285MM
23
7082301
BALL-END
24
7519355
SCR-SHS-M10X1.5-M12X16 RIE
25
7519780
SCR-HWH-M8X1.25X20 TAP/R ZPB
26
7547442
NUT-HEX M10X1.5 8 ZOD NYL
27
7082394
SPRING-SEAT SLIDER
