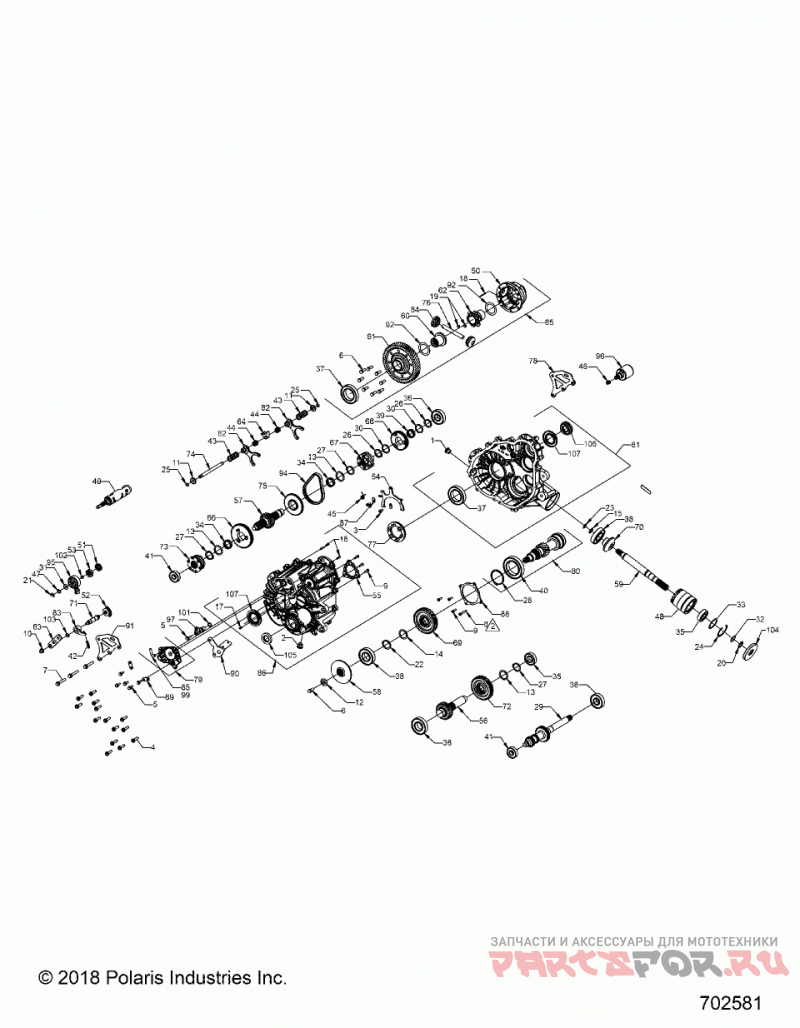

Drive train, main gearcase (to 4 / 1 / 2019) - r19rme57d7 (702581)

Polaris Ranger R19RME57D7 RGR 570 EPS HD

Drive train, main gearcase (to 4 / 1 / 2019) - r19rme57d7 (702581)

#

oem код

название

цена

1

PLUG M18 X 1.5

PLUG M18 X 1.5

2

PLUG M18 X 1.5 MAGNETIC

PLUG M18 X 1.5 MAGNETIC

3

SCREW TORX PAN HD M6 X 1 X 16

SCREW TORX PAN HD M6 X 1 X 16

4

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

5

SCREW HEX FLANGE HEAD M6 X 1 X 20

SCREW HEX FLANGE HEAD M6 X 1 X 20

6

SCREW CAP HH M8 X 1.25 X 25

SCREW CAP HH M8 X 1.25 X 25

7

SCREW HEX FLANGE M8 X 50

SCREW HEX FLANGE M8 X 50

8

SCREW SOCKET HEAD CAP M6 X 1 X 40

SCREW SOCKET HEAD CAP M6 X 1 X 40

9

SCREW SOCKET HEAD CAP M6 X 1 X 18

SCREW SOCKET HEAD CAP M6 X 1 X 18

10

NUT LOCK HEX FLANGE NYLON M8 X 1.25

NUT LOCK HEX FLANGE NYLON M8 X 1.25

11

WASHER CUP

WASHER CUP

12

WASHER FENDER 5/16 X 1.25 X 0.0655

WASHER FENDER 5/16 X 1.25 X 0.0655

13

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

14

WASHER 35.6 X 57 X 1.5

WASHER 35.6 X 57 X 1.5

15

WASHER 17.3 X 25 X 1.5

WASHER 17.3 X 25 X 1.5

16

PIN DOWEL 6 X 20

PIN DOWEL 6 X 20

17

PIN SPRING SLOTTED 6 X 12

PIN SPRING SLOTTED 6 X 12

18

PIN DOWEL 3 X 40

PIN DOWEL 3 X 40

19

PIN DOWEL 8 X 10

PIN DOWEL 8 X 10

20

RING RETAINING BASIC EXTERNAL .984

RING RETAINING BASIC EXTERNAL .984

21

RING SNAP

RING SNAP

22

RING RETAINING SHAFT DIA. 1.375

RING RETAINING SHAFT DIA. 1.375

23

RING RETAINING EXTERNAL SHR-66

RING RETAINING EXTERNAL SHR-66

24

RING RETAINING BASIC INTERNAL 2.047

RING RETAINING BASIC INTERNAL 2.047

25

RING RETAINING BASIC EXTERNAL .428

RING RETAINING BASIC EXTERNAL .428

26

RING RETAINING

RING RETAINING

27

RING RETAINING BASIC EXTERNAL MSR-32

RING RETAINING BASIC EXTERNAL MSR-32

28

RING RETAINING VSH-237

RING RETAINING VSH-237

29

INPUT SHAFT BOSS L/W UTILITY

INPUT SHAFT BOSS L/W UTILITY

30

WASHER THRUST 1.187 X 1.500 X 0.06

WASHER THRUST 1.187 X 1.500 X 0.06

31

WASHER THRUST .446 X .88 X 0.025

WASHER THRUST .446 X .88 X 0.025

32

SHIM 1.180 OD X .995 ID

SHIM 1.180 OD X .995 ID

33

SHIM 2.040 OD X 1.63 ID

SHIM 2.040 OD X 1.63 ID

34

BEARING NEEDLE CAGE ASSY

BEARING NEEDLE CAGE ASSY

35

BEARING BALL 6205 C3 25X52X15

BEARING BALL 6205 C3 25X52X15

36

BEARING BALL 6305 C3 25 X 62 X 17

BEARING BALL 6305 C3 25 X 62 X 17

37

BEARING BALL 6010 C3 50X80X16

BEARING BALL 6010 C3 50X80X16

38

BEARING BALL 6207 C3 35X72X17

BEARING BALL 6207 C3 35X72X17

39

BEARING NEEDLE CAGE ASSY

BEARING NEEDLE CAGE ASSY

40

BEARING BALL 6012 C3 60 X 95 X 18

BEARING BALL 6012 C3 60 X 95 X 18

41

BEARING BALL 6303 17 X 47 X 14

BEARING BALL 6303 17 X 47 X 14

42

SPRING COMPRESSION .360 X 1.125

SPRING COMPRESSION .360 X 1.125

43

SPRING COMPRESSION .92 O.D. X 2.000

SPRING COMPRESSION .92 O.D. X 2.000

44

SPRING COMPRESSION .46 I.D. X .73

SPRING COMPRESSION .46 I.D. X .73

45

SPRING TORSION RETURN

SPRING TORSION RETURN

46

SPRING COMPRESSION .54 X .44 X 0.05 WIRE

SPRING COMPRESSION .54 X .44 X 0.05 WIRE

47

Пружинная шайба

Пружинная шайба

48

TUBE SNORKEL MACH

TUBE SNORKEL MACH

49

DRUM SHIFT MACH

DRUM SHIFT MACH

50

CARRIER DIFFERENTIAL MACH

CARRIER DIFFERENTIAL MACH

51

GEAR SECTOR 16T

GEAR SECTOR 16T

52

GEAR SECTOR 31T

GEAR SECTOR 31T

53

STAR DETENT

STAR DETENT

54

FORK PIVOT SHIFT REAR DIFF

FORK PIVOT SHIFT REAR DIFF

55

PLATE PARK 12-FACE

PLATE PARK 12-FACE

56

SHAFT IDLER 29T

SHAFT IDLER 29T

57

SHAFT REVERSE 27T

SHAFT REVERSE 27T

58

DISC BRAKE

DISC BRAKE

59

SHAFT FRONT OUTPUT

SHAFT FRONT OUTPUT

60

GEAR OUTPUT 14T MACH

GEAR OUTPUT 14T MACH

61

GEAR 53T OUTPUT

GEAR 53T OUTPUT

62

GEAR OUTPUT 14T DISCONNECT MACH

GEAR OUTPUT 14T DISCONNECT MACH

63

BELLCRANK TITAN

BELLCRANK TITAN

64

COLLAR SHIFT

COLLAR SHIFT

65

TUBE VENT 90 -1/4

TUBE VENT 90 -1/4

66

GEAR LOW 67T

GEAR LOW 67T

67

DOG ENGAGEMENT 6-FACE

DOG ENGAGEMENT 6-FACE

68

GEAR 53T

GEAR 53T

69

GEAR 46T STAGE 3

GEAR 46T STAGE 3

70

GEAR 13T SNORKEL

GEAR 13T SNORKEL

71

SHAFT SHIFT

SHAFT SHIFT

72

GEAR 46T STAGE 2

GEAR 46T STAGE 2

73

SHIFT DOG PARK

SHIFT DOG PARK

74

RAIL SHIFT SHAFT

RAIL SHIFT SHAFT

75

SPROCKET 48T 6-FACE

SPROCKET 48T 6-FACE

76

PIN DIFFERENTIAL

PIN DIFFERENTIAL

77

DOG ENGAGEMENT

DOG ENGAGEMENT

78

WELDMENT REAR MOUNT BRACKET

WELDMENT REAR MOUNT BRACKET

79

SUBASSEMBLY SECTOR COVER

SUBASSEMBLY SECTOR COVER

80

SUBASSEMBLY PINION

SUBASSEMBLY PINION

81

SUBASSEMBLY LH CASE

SUBASSEMBLY LH CASE

82

SUBASSY SHIFT FORK

SUBASSY SHIFT FORK

83

SUBASSEMBLY PAWL DETENT ROLLER

SUBASSEMBLY PAWL DETENT ROLLER

84

SUBASSEMBLY PINION GEAR

SUBASSEMBLY PINION GEAR

85

SUBASSEMBLY DIFFERENTIAL

SUBASSEMBLY DIFFERENTIAL

87

RETAINER FORK

RETAINER FORK

88

COVER BEARING

COVER BEARING

89

BRACKET WIRE HARNESS

BRACKET WIRE HARNESS

90

BRACKET WIRE HARNESS

BRACKET WIRE HARNESS

91

BRACKET REAR MOUNT

BRACKET REAR MOUNT

92

WASHER THRUST 40.83 X 56.25 X 0.38

WASHER THRUST 40.83 X 56.25 X 0.38

93

PLUG CAP VENT 5/16

PLUG CAP VENT 5/16

94

CHAIN SILENT TYPE 101 .25P X .40W X 58L

CHAIN SILENT TYPE 101 .25P X .40W X 58L

95

SWITCH ROTARY 2 PIN RESISTIVE

SWITCH ROTARY 2 PIN RESISTIVE

96

SOLENOID

SOLENOID

97

Датчик скорости

Датчик скорости

101

O-RING -113

O-RING -113

102

O-RING -012 VITON

O-RING -012 VITON

103

O-RING -014 VITON

O-RING -014 VITON

104

SEAL TRIPLE LIP 25 X 80 X 10

SEAL TRIPLE LIP 25 X 80 X 10

105

SEAL TRIPLE LIP .984 X 1.850 X 0.315 VITON

SEAL TRIPLE LIP .984 X 1.850 X 0.315 VITON

106

SEAL DUAL LIP 25 X 47 VITON

SEAL DUAL LIP 25 X 47 VITON

107

SEAL TRIPLE LIP VITON 40 X 70 X 7

SEAL TRIPLE LIP VITON 40 X 70 X 7
