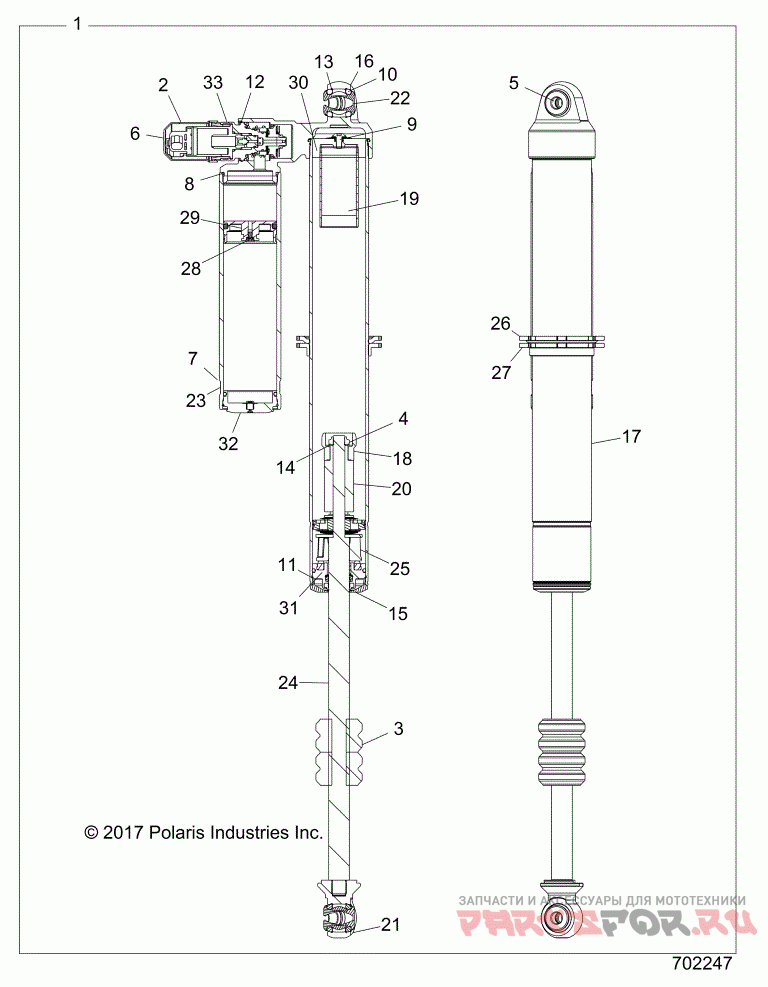

Suspension, rear shock internals - z18vfl92bk (702247)

Polaris Ranger Z18VFE92BB/BM/BS/BU/LBK RZR XP4 TURBO

Polaris Ranger
#oem кодцена
1
7045152
SHOCK-REAR,FOXLIVE,MP,LH
1
7045153
SHOCK-REAR,FOXLIVE,MP,RH
2
1501290
COVER - LIVE VALVE
3
1501028
BUMPER, B/O SHAFT
4
1500842
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
5
1501044
BEARING: SPHERICAL [? 0.625 BORE X ? 1.1875 OD] COM 10, BK LINER, CCVI
6
1501272
DECAL - IRD CVR, LIVE
7
1501273
DECAL - BAND
8
1501048
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC
9
1501049
SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC
10
1501050
SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC
11
1500960
WIRE, RETAINING RING
12
1501052
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
13
1501292
RING, RET., WIRE SS
14
1501293
PLATE - B. U., T.O.
15
1501053
BEARING CAP: [? 2.250 BORE, .? 0.875 SHAFT] NO SCRAPER, PRESS-IN, CLEAR ANO II
16
1501294
BODY CAP, HIFLO 67.5
16
1501295
BODY CAP, HIFL 157.5
17
1501296
BODY - 2.25 X 18.8
18
1501297
PISTON - PS DAMP.
19
1501298
TUBE - BOT. OUT CUP
20
1501299
SPACER - PISTON, PS
21
1501300
EYELET - BLK
22
1501076
EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI
23
1501175
RESEVOIR 10.0 TLG BLK
24
1501301
SHAFT - 0875 X 19.4 TLG
25
1501302
SPACER - SHAFT, NYLON
26
1501285
RING - PRELOAD B/U
27
1501286
RING - PRELOAD
29
1501060
PISTON ASSEMBLY: FLOATING [?2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND
30
1501289
CUP BASE
30
1501305
CUP BASE
31
1501304
ASM - BRNG, DUAL SEAL
32
1501063
RESERVOIR END CAP ASSEMBLY: [? 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC
33
1501288
ADJUSTER - DSC HIFLO
