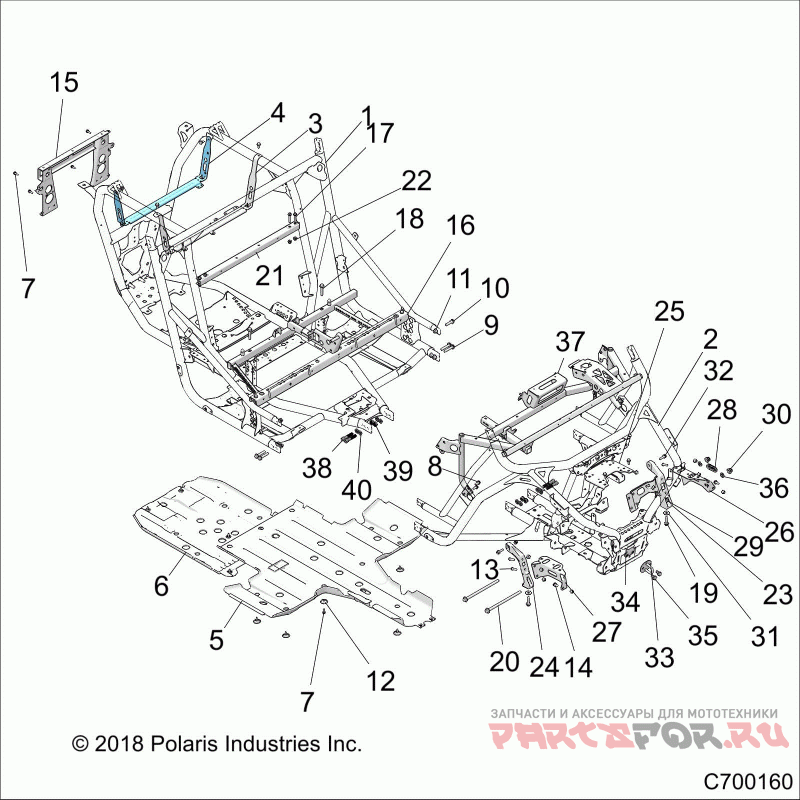

Chassis, main frame and skid plates - z18vel92bk / br (c700160)

Polaris Ranger Z18VEL92BK/BR RZR XP TURBO S

Polaris Ranger
#oem кодцена
1
1024545-458
WELD-MAIN FRAME,72.M.BLK
2
1024544-458
WELD-MAINFRAME,FRT,ISO,72,MBLK
3
5260947-329
BRACKET, BOX STRAP, BLACK
4
5264553-329
BRKT-BOX SUPPORT REAR,ECOAT
5
5450239-070
PLATE, SKID, BLACK
6
5452063-070
PLATE, SKID, REAR, BLACK
7
7518529
Винт
8
7518555
Болт
9
7519285
Винт
10
7519332
Винт
11
7547333
NUT, FLANGE, NYLOK
12
7556065
WASHER, SKID PLATE
13
7517924
SCR-HH-M8X1.25X30 8.8 ZY3
14
7518702
SCR-HXFL-M8X1.25X20 8.8 ZY3
15
1019529-458
SUPPORT, REAR, BLACK
16
1020571-329
BASE, SEAT, BLACK
17
7516732
SCR-M8X1.25X45-HX/FL-Y
18
7518474
Болт
19
7519820
SCR-HXFL,M10 X 1.5X40,10.9,ZOD
20
7520771
SCR-HXFL,M12X1.25X230 10.9 SPC
21
5260539-329
BRKT-CLOSE OFF SUPPORT,BLK
22
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
23
1024285-458
WELD-CHASSIS,STEERING,BLK
24
5142282-458
STEERING RACK MNT,RH,BLK
25
5264731-458
BRKT-WINCH MOUNT PLATE,BLK
26
5264732-458
BRKT-FRONT DRIVE MNT,LH,BLK
27
5264733-458
BRKT-FRONT DRIVE MNT,RH,BLK
28
5454582
GROMMET-ROUTING
29
7547442
NUT-HEX M10X1.5 8 ZOD NYL
30
7547860
NUT-HXFL-M12X1.25 10 SPC NYL
31
7556698
WASHER-FLAT M10X30X2.5 HARDEN
32
7518884
SCR-HXFL-M8X1.25X30 10.9 ZPB
33
1020619-458
WELD-TOW HOOK,BLK
34
5264362-458
BRKT-TOW HOOK BACKER,BLK
35
7518460
SCR-HXFL-M10X1.5X20 8.8 Z NYL
36
7556287
WSHR-13.0X24.0X2.5 ZPC
37
1024243-329
WELD-DASH,TURBO,S,ECOAT
38
7521020
SCR-SH-M12X1.5X60 12.9 ZFB
39
7547958
NUT-HEX-M12X1.5 10 SPL
40
7557160
WSHR-22X13X3 ZFB HRD
