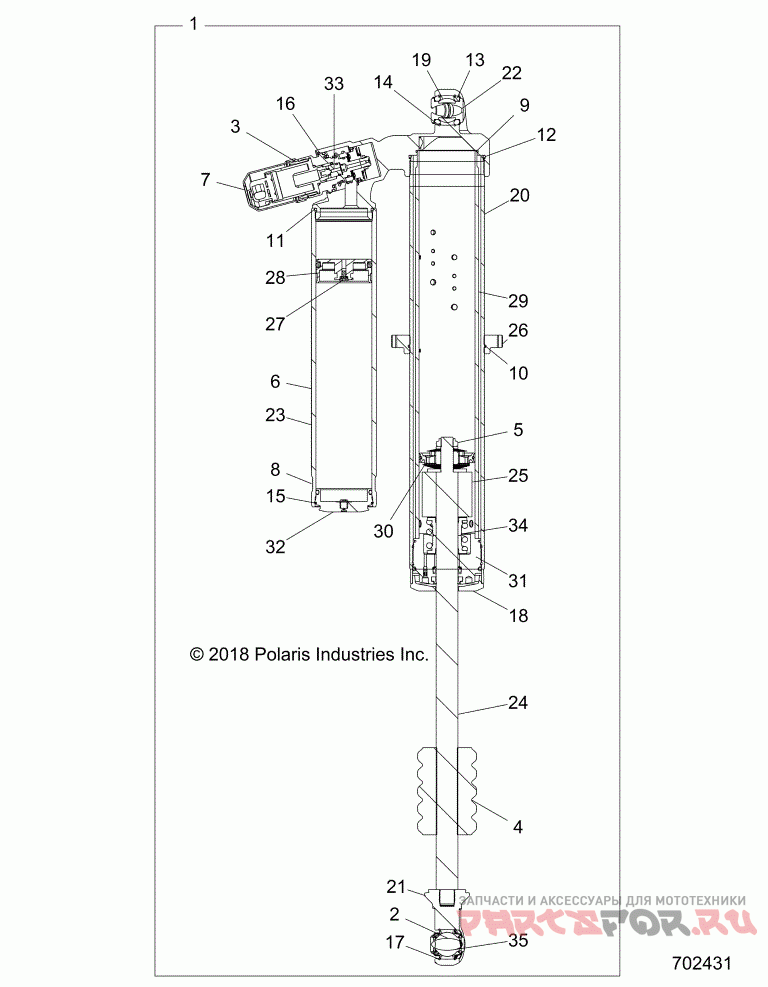

Suspension, rear shock internals - z18vel92bk / br / lk (702431)

Polaris Ranger Z18VEL92BK/BR/LK RZR XP TURBO S

Polaris Ranger
#oem кодцена
1
7045188
SHOCK-REAR,PXP,IBPLV,LTD,LH
1
7045189
SHOCK-REAR,PXP,IBPLV,LTD,RH
3
1501290
COVER - LIVE VALVE
5
1500842
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
7
1501272
DECAL - IRD CVR, LIVE
8
1501273
DECAL - BAND
9
1501069
SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD, N-70, STATIC
11
1501048
SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC
12
1501070
SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD, N-70, STATIC
13
1501050
SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD, N-70, STATIC
14
1501051
RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL
15
1500960
WIRE, RETAINING RING
16
1501052
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
17
1501292
RING, RET., WIRE SS
18
1501320
BEARING CAP
22
1501076
EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE] COM 10 SPHERICAL, SLIP FI
23
1501077
RESERVOIR: (T) [? 2.250 BORE, 12.000 TLG] AL 6061, THREADED ID, SHORT OD STEP
27
1500161
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
28
1501060
PISTON ASSEMBLY: FLOATING [?2.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND
31
1501324
ASM-BEARING
32
1501063
RESERVOIR END CAP ASSEMBLY: [? 2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC
33
1501288
ADJUSTER - DSC HIFLO
34
1501083
SPRING HARDWARE ASSEMBLY: NEGATIVE SPRING GUIDE, ? 0.875 SHAFT [300 LBS/IN]
35
1501044
BEARING: SPHERICAL [? 0.625 BORE X ? 1.1875 OD] COM 10, BK LINER, CCVI
