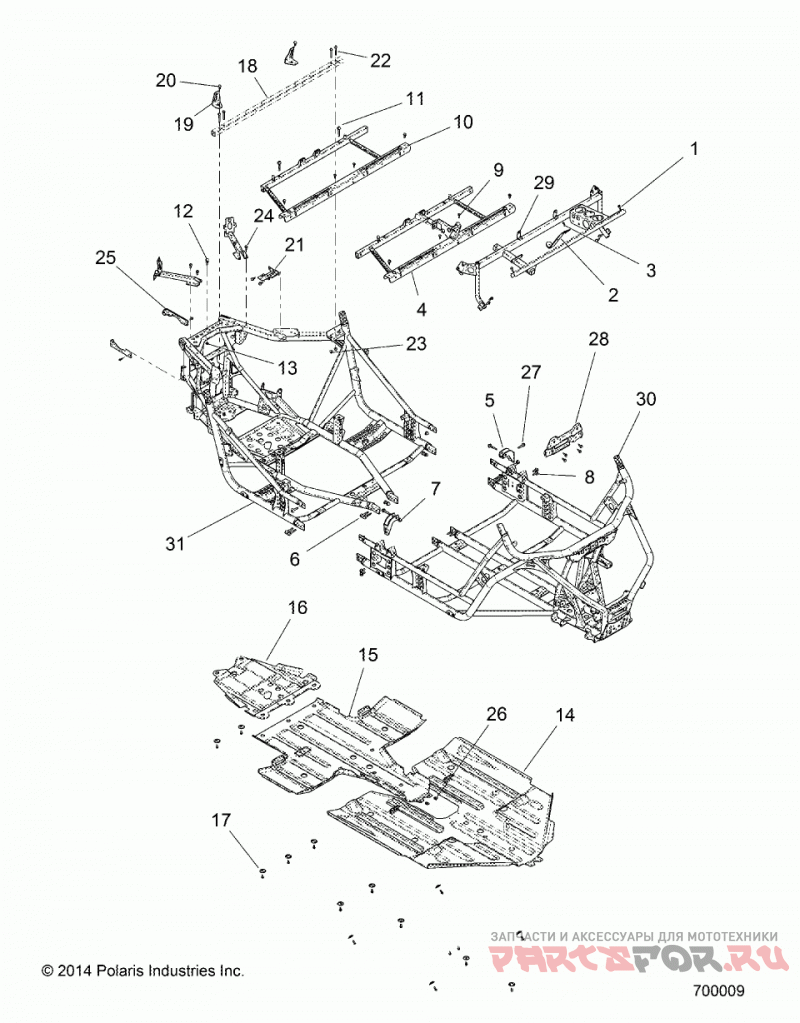

Chassis, main frame and skid plate - z18vce87bk / bu / br / lu (700009)

Polaris Ranger Z18VCE87BK/BU/BR/LU RZR 4 900

Polaris Ranger
#oem кодцена
1
7518555
BOLT-M8X1.25X20,HXFLG
2
5257304-329
BRKT-DIN MNT,BLK
3
7518529
SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
4
1020572-329
WELD-SEAT BASE,MP,BLK
5
5258097-329
BRKT-SEAT SUPPORT,FRT,MP,BLK
6
7519285
SCR-HXFL-M10X1.25X55 10.9 ZOD
7
7547333
NUT-M10X1.25,FLG,NYLOC-OLIVE D
8
7518934
SCR-M10X1.5X25-8.8 HFS ZOD
9
7519650
SCR-TXTH-M6X1.0X25 RIE
10
1019777-329
WELD-SEAT BASE,REAR,BLK
11
7518474
BOLT-M10X1.5X55,HX HD FLG
12
5139009
PLUNGER-BOX LATCH
13
7547339
NUT-M6X1.0,FLG-NYLOC-OLIVE D
14
5451895-070
PLATE-SKID,BLK
15
5439771-070
PLATE-SKID,BLK
16
5450706-070
PLATE-SKID,REAR,BLK
17
7556065
WASHER-SKID PLATE
18
1022849-329
ASM-TUBE,TOP FRAME,E-COAT
19
5259103-458
TIEDOWN,FRONT,LH,M.BLK
20
5263590-458
TIEDOWN,FRONT,RH,BLK
21
5259105-329
MOUNT,COIL,E-COAT
22
7517281
SCR-M8X1.25X55,HX/FL-Y
23
7547332
NUT-M8X1.25,FLG,NYLOC-OLIVE D
24
1020506-458
WELD-MOUNT,BODY,M.BLK
25
5259106
BRKT-FACIA
26
7547674
NUT-M6-1.0,U-TYPE (2.5-3.8)
27
7519332
SCR-HXFL-M10X1.25X40 8.8 ZOD
28
5259449-458
BRKT-SUSP MNT,FRT,M.BLK
29
1020984-329
WELD-DASH,E-COAT BLK
30
1022686-458
WELD-MAINFRAME,FRT,MP,SWY,BLK
31
1022388-458
WELD-MAINFRAME,REAR,BLK
