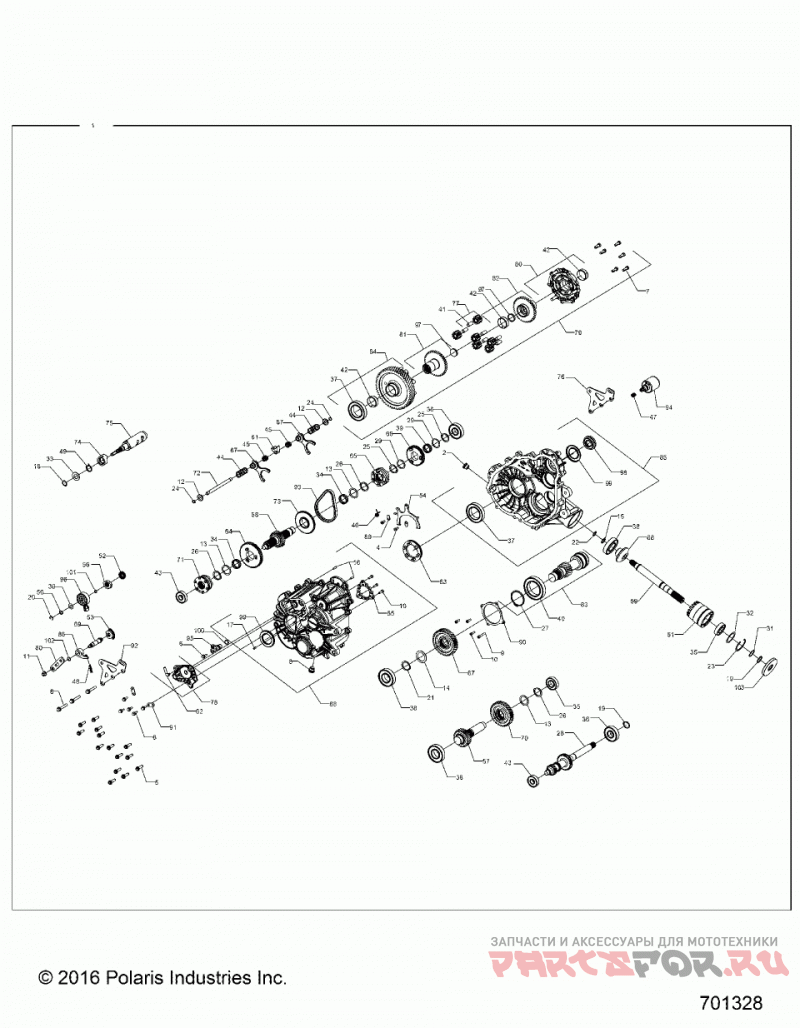

Drive train, main gearcase internal - r18rva87a1 / b1 / e87a9 / b9 (701328)

Polaris Ranger R18RVA87A1/B1/E87A9/B9 RANGER CREW 900XP 6P SP

Polaris Ranger
#oem кодцена
1
1333705
ASM-GEARCASE,900 CREW,RGR
2
3234755
PLUG M18 X 1.5
3
3234756
PLUG M18 X 1.5, MAGNETIC
4
3234309
SCREW, TORX PAN HD M6 X 1 X 16
5
3234898
SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
6
3235206
SCREW, HEX FLANGE HEAD M6 X 1 X 20
7
3236169
SCREW, CAP HH M8-1.25 X 25
8
3235207
SCREW HEX FLANGE M8 X 50
9
3235208
SCREW, SOCKET HEAD CAP, M6 X 1 X 40
10
3235332
SCREW, SOCKET HEAD CAP, M6 X 1 X 18
11
3235210
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
12
3234091
WASHER CUP
13
3235211
WASHER 32.3 X 42 X 1.5
14
3235212
WASHER 35.6 X 50 X 1.5
15
3235213
WASHER 17.3 X 25 X 1.5
16
3234330
PIN, DOWEL 6 X 20
17
7043746
PIN, SPRING SLOTTED 6 X 12
18
3233045
RING, RETAINING BASIC EXTERNAL 0.75
19
3233106
RING, RETAINING BASIC EXTERNAL 0.984
20
3233834
RING SNAP
21
3233364
RING, RETAINING SHAFT, DIA. 1.375
22
3234318
RING, RETAINING EXTERNAL SHR-66
23
3234269
RING, RETAINING BASIC INTERNAL 2.047
24
3234090
RING, RETAINING BASIC EXTERNAL 0.428
25
3234205
Стопорное кольцо
26
3235214
RING, EXTERNAL SNAP 32 X 2.4
27
3235216
RING, RETAINING VSH-237
28
3235429
INPUT,SHAFT BOSS L/W UTILITY
29
3233378
WASHER, THRUST 1.187 X 1.5 X 0.06
30
3234642
WASHER, THRUST 0.446 X 0.88 X 0.025
31
3234272
SHIM 1.18 OD X 0.995 ID
32
3234273
SHIM 2.04 OD X 1.63 ID
33
3235883
SPACER, 19.4 X 34 X 2
34
3233014
BEARING, NEEDLE CAGE ASSY
35
3233019
BEARING, BALL 6205 C3 25X52X15
36
3233020
BEARING, BALL 6305 C3, 25 X 62 X 17
37
3233268
BEARING, BALL 6010 C3 50 X 80 X 16
38
3234065
BEARING, BALL 6207 C3 35 X 72 X 17
39
3233384
BEARING, NEEDLE CAGE ASSY
40
3235218
BEARING, BALL 6012 C3 60 X 95 X 18
41
3234239
BEARING, PLAIN 10 X 12 X 25
42
3234241
PLAIN, BEARING 40 X 44 X 15
43
3234652
BEARING, BALL 6303 17 X 47 X 14
44
3234078
SPRING, COMPRESSION 0.92 O.D. X 2
45
3234089
SPRING, COMPRESSION 0.46 I.D. X 0.73
46
3234276
SPRING, TORSION RETURN
47
3234277
SPRING, COMPRESSION 0.54 OD X.44 ID X.050 WIRE
48
3234578
Пружина сжатия
49
3235885
Пружина
50
3235327
SPRING, WASHER
51
3234278
TUBE, SNORKEL MACH
52
3233839
GEAR, SECTOR 16T
53
3233832
GEAR, SECTOR 31T
54
3235455
FORK, PIVOT SHIFT REAR DIFF
55
3235456
PLATE, PARK 12-FACE
56
3235982
STAR, DETENT
57
3235223
SHAFT, IDLER 29T
58
3235380
SHAFT, REVERSE 27T
59
3235394
SHAFT, FRONT OUTPUT
60
3235474
BELLCRANK, TITAN
61
3234073
COLLAR, SHIFT
62
3234230
TUBE, VENT 90 -1/4
63
3234928
DOG, ENGAGEMENT
64
3235232
GEAR, LOW 67T
65
3235233
ENGAGEMENT DOG, 6-FACE
66
3235234
GEAR, 53T
67
3235236
GEAR, 46T STAGE 3
68
3235237
GEAR, 13T SNORKEL
69
3235238
SHAFT SHIFT
70
3235381
GEAR, 46T STAGE 2
71
3235457
SHIFT DOG, PARK
72
3235542
RAIL, SHIFT SHAFT
73
3235755
SPROCKET 48T 6-FACE
74
3235983
PARK CAM
75
3235984
DRUM, SHIFT MACH
76
3235399
WELDMENT REAR MOUNT BRACKET
77
3234469
PLANET GEAR SUBASSEMBLY
78
3235713
SUBASSEMBLY, SECTOR COVER
79
3235373
SUBASSEMBLY, AVALANCHE DIFFERENTIAL
80
3235376
SUBASSEMBLY, DIFF COVER
81
3235374
SUBASSEMBLY, 39T SIDE GEAR
82
3235375
SUBASSEMBLY, 39T SIDE GEAR DISCONNECT
83
3235336
SUBASSEMBLY PINION
84
3235378
SUBASSEMBLY GEAR, 53T
85
3235422
SUBASSEMBLY LH CASE
86
3235452
SUBASSEMBLY, PAWL DETENT, ROLLER
87
3235920
SUBASSEMBLY, SHIFT FORK
88
3235995
SUBASSEMBLY RH COVER
89
3234934
RETAINER, FORK
90
3235241
COVER, BEARING CENTER DRIVE
91
3235350
BRACKET WIRE HARNESS
92
3235398
BRACKET, REAR MOUNT
93
3234737
CHAIN, SILENT, TYPE 101 .25P X .40W X 58L
94
3235478
SOLENOID
95
4013908
Датчик скорости
96
7662299
SWITCH, ROTARY 2 PIN RESISTIVE
97
3234249
PLUG, EXPANSION 37987
98
3234851
SEAL, TRIPLE LIP 25 X 47 VITON
99
3235052
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
100
3234302
Кольцо уплотнительное
101
3233836
O-RING, -12 VITON
102
3233828
O-RING, -14 VITON
103
3234113
SEAL, TRIPLE LIP 25 X 80 X 10
