Drive train, main gearcase - r18rma57f1 / s57c1 / f1 / cv / t57c1 (700175) для мотовездеходов Polaris Ranger R18RMA57F1/S57C1/F1/CV/T57C1 RGR 570 EPS, HDPS, EU, POLAND (2018)

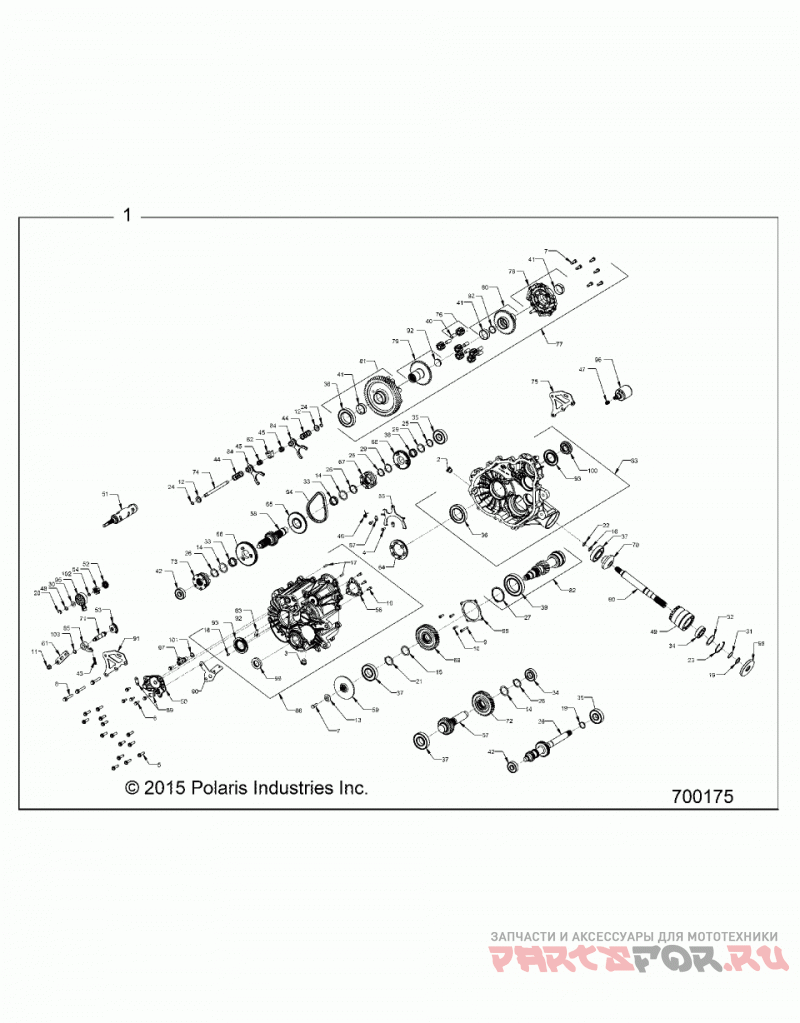

Drive train, main gearcase - r18rma57f1 / s57c1 / f1 / cv / t57c1 (700175)

Polaris Ranger R18RMA57F1/S57C1/F1/CV/T57C1 RGR 570 EPS, HDPS, EU, POLAND

Drive train, main gearcase - r18rma57f1 / s57c1 / f1 / cv / t57c1 (700175)

oem код

название

цена

1333476

ASM, Gearcase

3234755

PLUG, M18 X 1.5

3234249

PLUG, M18 X 1.5, MAGNETIC

3234309

SCREW, TORX PAN HD M6 X 1 X 16

3234898

SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30

3235206

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3236169

SCREW, CAP HH M8 X 1.25 X 25

3235207

SCREW, HEX FLANGE M8 X 50

3235208

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235332

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235210

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3234091

WASHER, CUP

3234952

WASHER, FENDER, 5/16 X 1.25 X .0655

3235211

WASHER, 32.3 X 42 X 1.5

3235212

WASHER, 35.6 X 57 X 1.5

3235213

WASHER, 17.3 X 25 X 1.5

3234330

PIN, DOWEL, 6 X 20

7043746

PIN, SPRING, SLOTTED 6 X 12

3233106

RING, RETAINING BASIC, EXTERNAL .984

3233834

Кольцо

3233364

RING, RETAINING, SHAFT, DIA. 1.375

3234318

RING, RETAINING, EXTERNAL SHR-66

3234269

RING, RETAINING BASIC, INTERNAL 2.047

3234090

RING, RETAINING BASIC, EXTERNAL .428

3234205

Стопорное кольцо

3235214

RING, RETAINING BASIC, EXTERNAL MSR-32

3235216

RING, RETAINING, VSH-237

3235429

INPUT, SHAFT BOSS L/W UTILITY

3233378

WASHER, THRUST, 1.187 X 1.500 X .0600

3234642

WASHER, THRUST, .446 X .88 X .025

3234272

SHIM, 1.180 OD X .995 ID

3234273

SHIM, 2.040 OD X 1.63 ID

3233014

BEARING, NEEDLE, CAGE ASSY

3233019

BEARING, BALL, 6205 C3 25X52X15

3233020

BEARING, BALL, 6305 C3, 25 X 62 X 17

3233268

BEARING, BALL, 6010 C3 50X80X16

3234065

BEARING, BALL, 6207 C3 35X72X17

3233384

BEARING, NEEDLE, CAGE ASSY

3235218

BEARING, BALL, 6012 C3 60 X 95 X 18

3234239

BEARING, PLAIN 10 X 12 X 25

3234241

BEARING, PLAIN 40 X 44 X 15

3234652

BEARING, BALL 6303, 17 X 47 X 14

3233830

SPRING, COMPRESSION .360 X 1.125

3234078

SPRING, COMPRESSION, .92 O.D. X 2.000

3234089

SPRING, COMPRESSION, .46 I.D. X .73

3234276

SPRING, TORSION, RETURN

3234277

SPRING, COMPRESSION, .54 X .44 X .050 WIRE

3235327

SPRING, WASHER

3234278

TUBE, SNORKEL MACH

3234188

COVER, SECTOR GEARS, MACH

DRUM, SHIFT MACH

GEAR, SECTOR 16T

GEAR, SECTOR, 31T

STAR, DETENT

FORK, PIVOT SHIFT REAR DIFF

PLATE, PARK 12-FACE

SHAFT, IDLER 29T

SHAFT, REVERSE 25T

Тормозной диск

SHAFT, FRONT OUTPUT

BELLCRANK, TITAN

COLLAR, SHIFT

TUBE, VENT, 90 -1/4

DOG, ENGAGEMENT

SPROCKET, 48T 6-FACE

GEAR, LOW 67T

DOG, ENGAGEMENT 6-FACE

GEAR, 53T

GEAR, 46T STAGE 3

GEAR, 13T SNORKEL

Вал

GEAR, 48T STAGE 2

SHIFT DOG, PARK

RAIL, SHIFT SHAFT

WELDMENT, REAR MOUNT BRACKET

3234469

SUBASSEMBLY, PLANET GEAR

3235373

SUBASSEMBLY, AVALANCHE DIFFERENTIAL

3235376

SUBASSEMBLY, DIFF COVER

3235374

SUBASSEMBLY, 39T SIDE GEAR

3235375

SUBASSY, 39T SIDE GEAR

SUBASSY, GEAR 53T

SUBASSEMBLY, PINION

SUBASSEMBLY LH CASE

SUBASSY, SHIFT FORK

SUBASSEMBLY, PAWL, DETENT, ROLLER

SUBASSEMBLY RH COVER

RETAINER, FORK

Шайба

BRACKET, WIRE HARNESS

5257251

BRACKET, WIRE HARNESS

3235511

BRACKET REAR MOUNT

3234249

PLUG, EXPANSION 1-1/4

3235052

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3234737

CHAIN, SILENT, TYPE 101, .25P X .40W X 58L

7661999

SWITCH, ROTARY , 2 PIN RESISTIVE

3235478

SOLENOID

4013908

Датчик скорости

3234113

SEAL, TRIPLE LIP, 25 X 80 X 10

3234892

SEAL, TRIPLE LIP, .984 X 1.850 X 0.315 VITON

100

3234851

SEAL, DUAL LIP, 25 X 47 VITON

101

3234302

Кольцо уплотнительное

102

3233836

O-RING, -012 VITON

103

3233828

O-RING, -014 VITON
