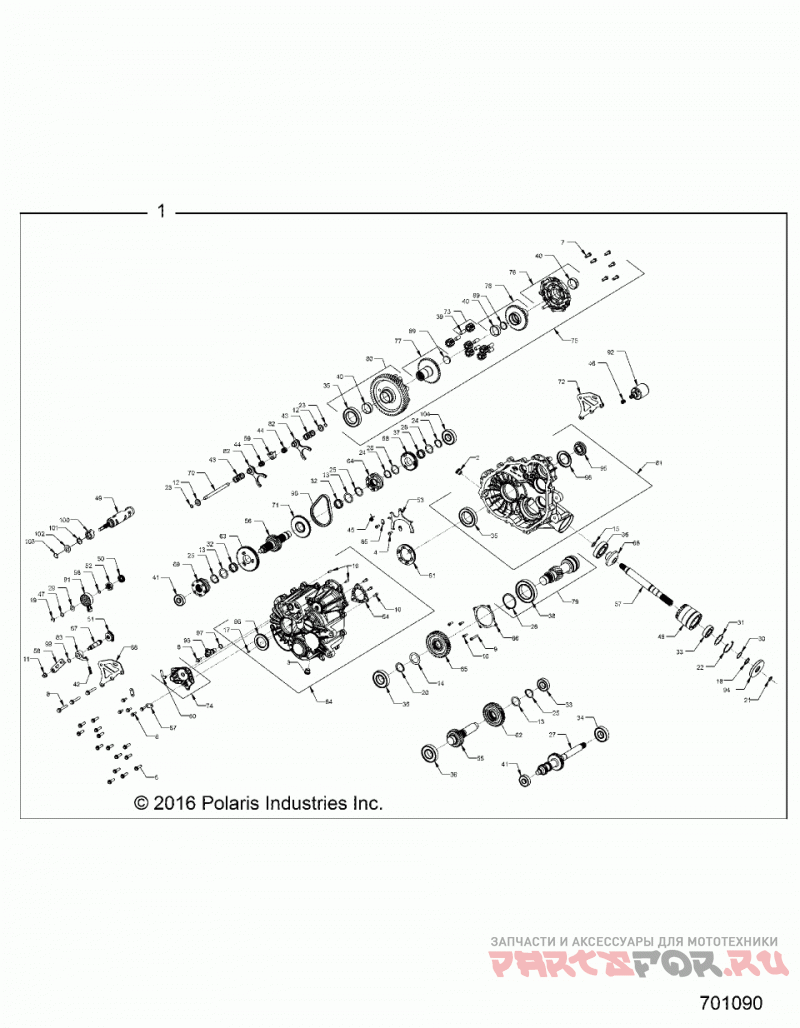

Drive train, main gearcase internals - r18rge99bm / bb / b7 / kbs / ub9 / ubg (701090)

Polaris Ranger R18RGE99BM/BB/B7/KBS/UB9/BG POLARIS GENERAL 1000 EPS

Polaris Ranger
#oem кодцена
1
1333435
ASM-GEARCASE,SPOOL
2
3234755
PLUG M18 X 1.5
3
3234756
PLUG M18 X 1.5, MAGNETIC
4
3234309
SCREW,TORX PAN HD M6X1X16
5
3234898
SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
6
3235206
SCREW, HEX FLANGE HEAD M6 X 1 X 20
7
3236169
SCREW, CAP HH M8-1.25 X 25
8
3235207
SCREW HEX FLANGE M8 X 50
9
3235208
SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40
10
3235332
SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18
11
3235210
NUT, LOCK HEX FLANGE NYLON M8 X 1.25
12
3234091
WASHER CUP
13
3235211
WASHER 32.3 X 42 X 1.5
14
3235212
WASHER 35.6 X 50 X 1.5
15
3235213
WASHER 17.3 X 25 X 1.5
16
3234330
PIN, DOWEL 6 X 20
17
7043746
PIN, SPRING SLOTTED 6 X 12
18
3233106
RING, RETAINING BASIC EXTERNAL .984
19
3233834
RING SNAP
20
3233364
RING, RETAINING SHAFT, DIA. 1.375
21
3234318
RING, RETAINING EXTERNAL SHR-66
22
3234269
RING, RETAINING BASIC INTERNAL 2.047
23
3234090
RING, RETAINING BASIC EXTERNAL .428
24
3234205
Стопорное кольцо
25
3235214
RING, RETAINING BASIC, EXTERNAL MSR-32
26
3235216
RING, RETAINING VSH-237
27
3235754
SHAFT, INPUT 42T/20T/25T
28
3233378
WASHER, THRUST 1.187 X 1.500 X .0600
29
3234642
WASHER, THRUST .446 X .88 X .025
30
3234272
SHIM 1.180 OD X .995 ID
31
3234273
SHIM 2.040 OD X 1.63 ID
32
3233014
BEARING, NEEDLE CAGE ASSY
33
3233019
BEARING, BALL 6205 C3 25X52X15
34
3235496
BEARING, BALL 6206RSH2 STD 30X62X16
35
3233268
BEARING, BALL 6010 C3 50X80X16
36
3234065
BEARING, BALL 6207 C3 35X72X17
37
3233384
BEARING, NEEDLE CAGE ASSY
38
3235218
BEARING, BALL 6012 C3 60 X 95 X 18
39
3234239
BEARING, PLAIN 10X12X25
40
3234241
PLAIN, BEARING 40X44X15
41
3234652
BEARING, BALL 6303 17 X 47 X 14
42
3234578
SPRING, COMPRESSION .360 OD X 1.063
43
3234078
SPRING, COMPRESSION .92 O.D. X 2.000
44
3234089
SPRING, COMPRESSION .46 I.D. X .73
45
3234276
SPRING, TORSION RETURN
46
3234277
SPRING, COMPRESSION .54 OD X.44 ID X.050 WIRE
47
3235327
SPRING, WASHER
48
3234278
TUBE, SNORKEL MACH
49
3235984
DRUM, SHIFT MACH
50
3233839
GEAR, SECTOR 16T
51
3233832
GEAR, SECTOR 31T
52
3235982
STAR, DETENT
53
3235455
FORK, PIVOT SHIFT REAR DIFF
54
3235456
PLATE, PARK 12-FACE
55
3235223
SHAFT, IDLER 29T
56
3235224
SHAFT, REVERSE 29T
57
3235394
SHAFT, FRONT OUTPUT
58
3235581
BELLCRANK APEX
59
3234073
COLLAR, SHIFT
60
3234230
TUBE, VENT 90 -1/4
61
3234928
DOG, ENGAGEMENT
62
3235229
GEAR, 44T STAGE 2
63
3235232
GEAR, LOW 67T
64
3235233
ENGAGEMENT DOG, 6-FACE
65
3235236
GEAR, 46T STAGE 3
66
3235237
GEAR, 13T SNORKEL
67
3235238
SHAFT SHIFT
68
3235234
GEAR, 53T
69
3235457
SHIFT DOG, PARK
70
3235542
RAIL, SHIFT SHAFT
71
3235755
SPROCKET 48T 6-FACE
72
3235399
WELDMENT REAR MOUNT BRACKET
73
3234469
PLANET GEAR SUBASSEMBLY
74
3235713
SUBASSEMBLY, SECTOR COVER
75
3235373
SUBASSEMBLY, AVALANCHE DIFFERENTIAL
76
3235376
SUBASSEMBLY DIFFERENTIAL COVER
77
3235374
SUBASSEMBLY 39T SIDE GEAR
78
3235375
SUBASSEMBLY 39T SIDE GEAR DISCONNECT
79
3235336
SUBASSEMBLY PINION
80
3235378
SUBASSEMBLY GEAR, 53T
81
3235757
SUBASSEMBLY, LH CASE
82
3235920
SUBASSEMBLY SHIFT FORK
83
3235452
SUBASSEMBLY, PAWL DETENT, ROLLER
84
3235995
SUBASSEMBLY, RH COVER
85
3234934
RETAINER, FORK
86
3235241
COVER, BEARING CENTER DRIVE
87
3235350
BRACKET WIRE HARNESS
88
3235398
BRACKET, REAR MOUNT
89
3234249
PLUG, EXPANSION 1-1/4
90
3234737
CHAIN, SILENT, TYPE 101 .25P X .40W X 58L
91
7662299
SWITCH, ROTARY 2 PIN RESISTIVE
92
3235478
SOLENOID
93
4013908
Датчик скорости
94
3235658
SEAL, TRIPLE LIP VITON 25 X 80 X 10
95
3235495
SEAL, TRIPLE LIP VITON HELIX 30 X 47
96
3235052
SEAL, TRIPLE LIP, VITON 40 X 70 X 7
97
3234302
Уплотнительное кольцо
98
3233836
O-RING, -012 VITON
99
3233828
O-RING, -014 VITON
100
3235983
PARK CAM
101
3235885
SPRING TORSION
102
3235883
Проставка
103
3233045
RING RETAINER BASIC INTERNAL .750
104
3233020
BEARING, BALL 6305 C3, 25 X 62 X 17
