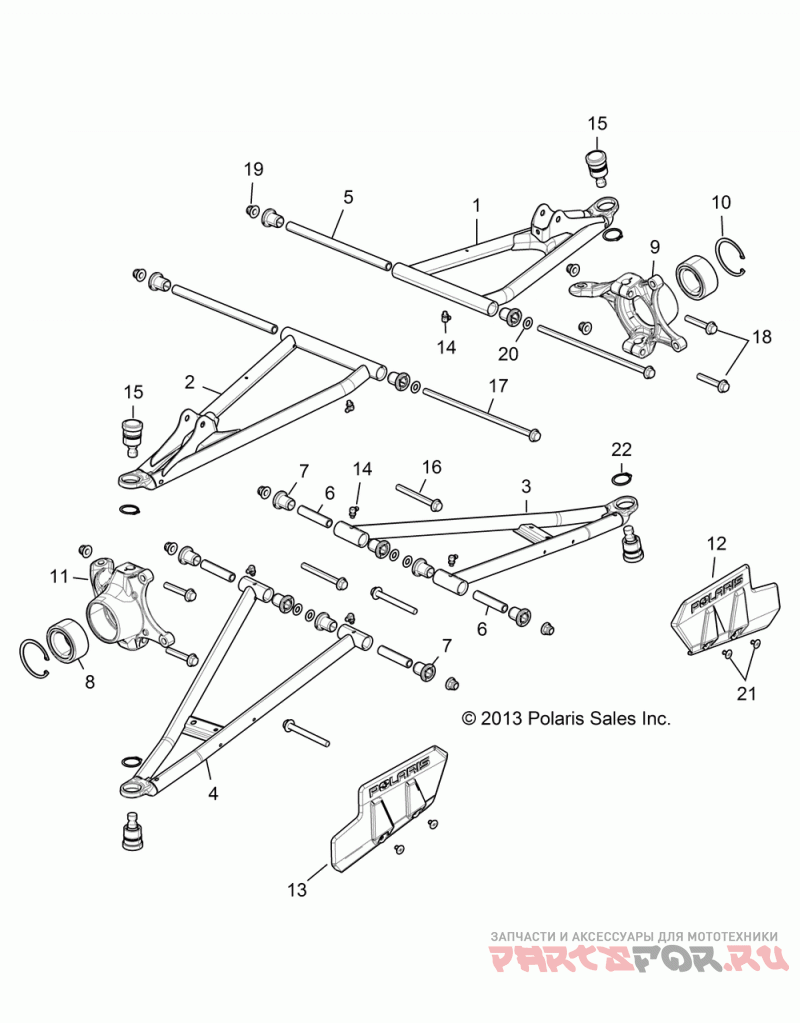

Suspension, front control arms

Polaris Ranger R17RVA87A1/B1/E87A9/B9 RANGER CREW 900 6P SP

Polaris Ranger
#oem кодцена
1
1020887-458
Weld-a-arm, Fr, Upr, Lh, Blk [a87a1][e87a9]
2
1020888-458
Weld-a-arm, Fr, Upr, Rh, Blk [a87a1][e87a9]
3
1019668-458
Weld-a-arm, Frt, Lwr, Lh, Blk [a87a1][e87a9]
4
1019669-458
Weld-a-arm, Frt, Lwr, Rh, Blk [a87a1][e87a9]
5
5138791
Shaft-pivot, 250.28mm, 15.88od
6
5138797
Shaft-pivot, 70.99mm, 15.88od
7
5439874
Bushing-standard, Orv(10) (10 Per Pack)
8
3514699
Bearing-ball, Sealed, 44x72x33.1
9
5139976
Carrier-bearing, Front, Lh
10
7710780
Ring-retaining, 2.835, Internal
11
5139977
Carrier-bearing, Front, Rh
12
5437544-070
Shield-cv, Front, Lh, Blk
13
5437545-070
Shield-cv, Front, Rh, Blk
14
7080510
Фитинг
15
7081924
Ball-joint, 10mm Stud
16
7519043
Scr-hxfl-m10x1.25x95 10.9 Zod(1
17
7519087
Scr-hxfl-m10x1.25x275 10.9 Zod
18
7519306
Scr-hxfl-m10x1.25x60 10.9 Zod
19
7547333
Nut-m10x1.25, Flg, Nyloc-olive D(
20
7556153
Washer, 3/8 Fw(10) (10 Per Pack)
21
7621472
Rivet(50) * (50 Per Pack)
22
7710533
Ring-retainer, External, 1.188
