Chassis, main frame and skid plates для мотовездеходов Polaris Ranger R17RGE99A7/A9/AW/AM POLARIS GENERAL 1000 EPS (2017)

Москва и регионы России

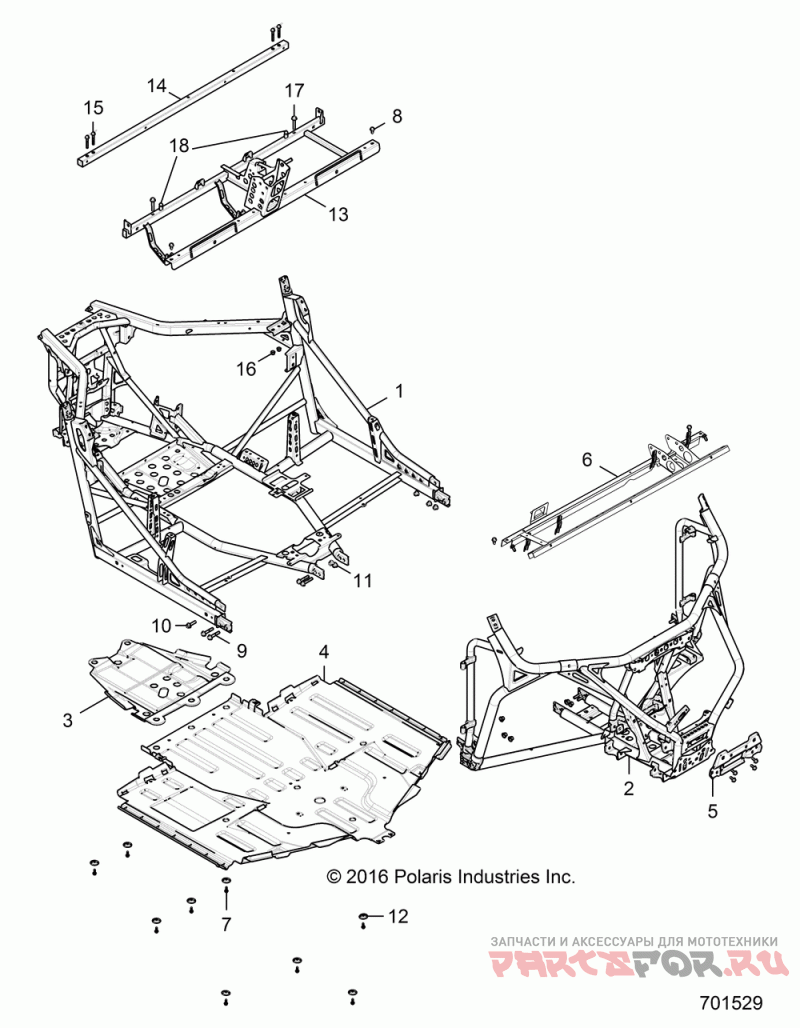

Chassis, main frame and skid plates

Polaris Ranger R17RGE99A7/A9/AW/AM POLARIS GENERAL 1000 EPS

Chassis, main frame and skid plates

#

oem код

название

цена

1

Weld-main Frame, M.blk

Weld-main Frame, M.blk

2

Weld-frame, Front, 2 Pc, Blk

Weld-frame, Front, 2 Pc, Blk

3

Plate-skid, Rear, Blk

Plate-skid, Rear, Blk

4

Plate-skid, Blk

Plate-skid, Blk

5

Brkt-susp Mnt, Frt, M.blk

Brkt-susp Mnt, Frt, M.blk

6

Weld-dash, E-coat

Weld-dash, E-coat

7

Scr-m6x1.0x20, Hxhd, Flg, Tdfm, Bl(

Scr-m6x1.0x20, Hxhd, Flg, Tdfm, Bl(

8

Bolt-m8x1.25x20, Hxflg, Tap/r-od

Bolt-m8x1.25x20, Hxflg, Tap/r-od

9

Scr-hxfl-m10x1.25x55 10.9 Zod

Scr-hxfl-m10x1.25x55 10.9 Zod

10

Scr-hxfl-m10x1.25x40 8.8 Zod

Scr-hxfl-m10x1.25x40 8.8 Zod

11

Nut-m10x1.25, Flg, Nyloc-olive D(

Nut-m10x1.25, Flg, Nyloc-olive D(

12

Washer Skid Plate

Washer Skid Plate

13

Weld-seat Base, E-coat

Weld-seat Base, E-coat

14

Asm-tube, Top Frame, E-coat

Asm-tube, Top Frame, E-coat

15

Винт

Винт

16

Гайка м 8х1.25

Гайка м 8х1.25

17

Bolt-m10x1.5x55, Hx Hd Flg

Bolt-m10x1.5x55, Hx Hd Flg

18

Plunger-latch, Seat

Plunger-latch, Seat
