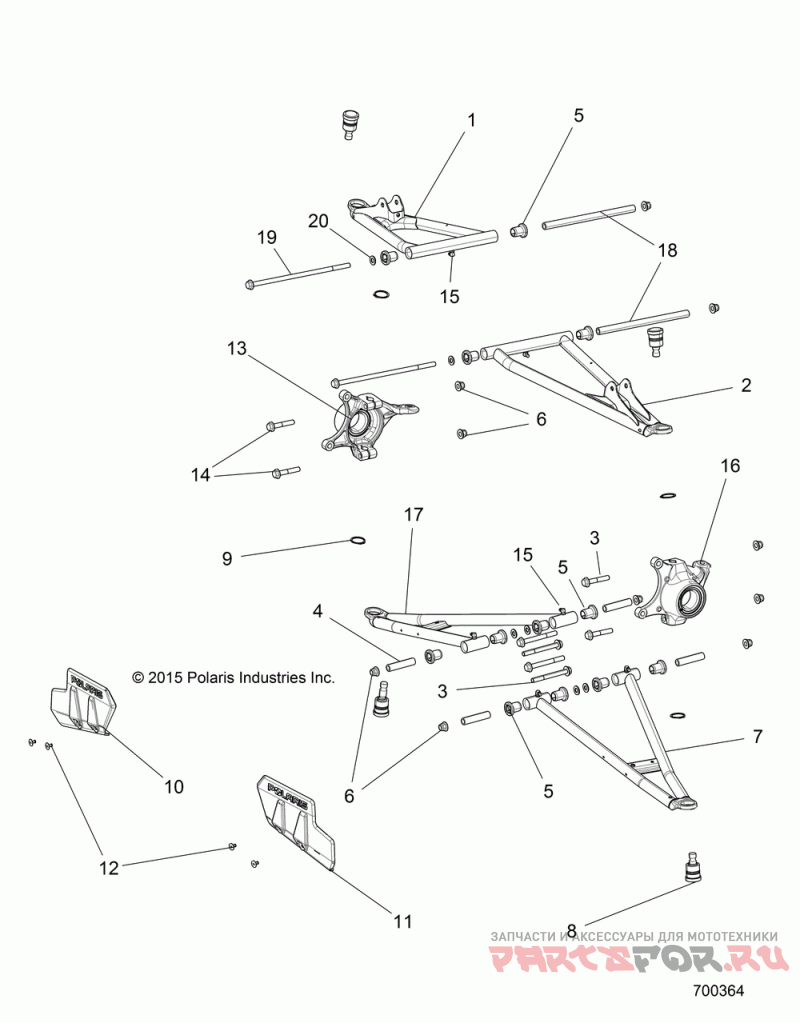

Suspension, front control arms

Polaris Ranger R16RTAD1A1/ED1E1 RANGER 1000 DIESEL

Suspension, front control arms

#

oem код

название

цена

1

Weld-a-arm, Fr, Upr, Rh, Blk

Weld-a-arm, Fr, Upr, Rh, Blk

2

Weld-a-arm, Fr, Upr, Lh, Blk

Weld-a-arm, Fr, Upr, Lh, Blk

3

Scr-hxfl-m10x1.25x95 10.9 Zod(1

Scr-hxfl-m10x1.25x95 10.9 Zod(1

4

Shaft-pivot, 70.99mm, 15.88od

Shaft-pivot, 70.99mm, 15.88od

5

Asm-bushing, Hd, W/seal, 5.23 Flg [e1]

Asm-bushing, Hd, W/seal, 5.23 Flg [e1]

5

Bushing-standard, Orv(10) [a1] (10 Per Pack)

Bushing-standard, Orv(10) [a1] (10 Per Pack)

6

Nut-m10x1.25, Flg, Nyloc-olive D(

Nut-m10x1.25, Flg, Nyloc-olive D(

7

Weld-a-arm, Frt, Lwr, Lh, Blk

Weld-a-arm, Frt, Lwr, Lh, Blk

8

Ball-joint, 10mm Stud

Ball-joint, 10mm Stud

9

Ring-retainer, External, 1.188

Ring-retainer, External, 1.188

10

Shield-cv, Front, Rh, Blk

Shield-cv, Front, Rh, Blk

11

Shield-cv, Front, Lh, Blk

Shield-cv, Front, Lh, Blk

12

Rivet(50) * (50 Per Pack)

Rivet(50) * (50 Per Pack)

13

Carrier-bearing, Front, Rh

Carrier-bearing, Front, Rh

14

Scr-hxfl-m10x1.25x60 10.9 Zod

Scr-hxfl-m10x1.25x60 10.9 Zod

15

Фитинг

Фитинг

16

Carrier-bearing, Front, Lh

Carrier-bearing, Front, Lh

17

Weld-a-arm, Frt, Lwr, Rh, Blk

Weld-a-arm, Frt, Lwr, Rh, Blk

18

Shaft-pivot, 250.28mm, 15.88od

Shaft-pivot, 250.28mm, 15.88od

19

Scr-hxfl-m10x1.25x275 10.9 Zod

Scr-hxfl-m10x1.25x275 10.9 Zod

20

Washer, 3/8 Fw(10) (10 Per Pack)

Washer, 3/8 Fw(10) (10 Per Pack)
