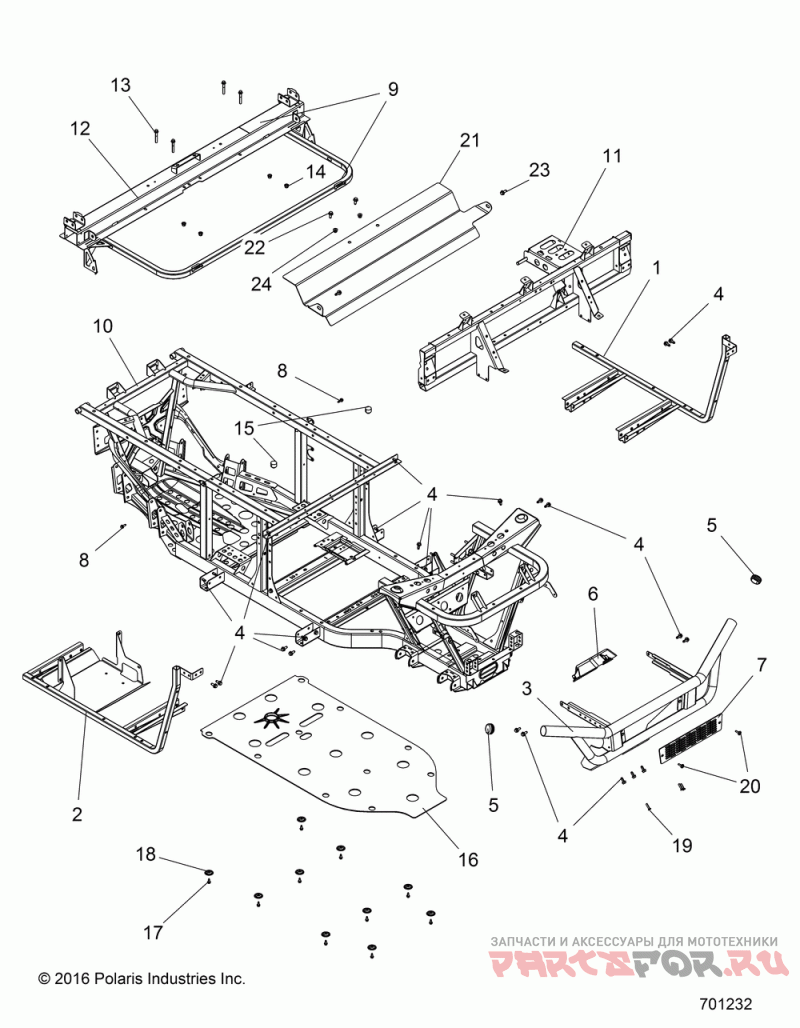

Chassis, frame and front bumper

Polaris Ranger R16RMA32A1/A2 RANGER ETX

Polaris Ranger
#oem кодцена
1
1020159-329
Weld-floor Supt, Lh, Blk
2
1020160-329
Weld-floor Supt, Rh, Blk
3
1020136-458
Weld-bumper, Matte'blk
4
7518555
Bolt-m8x1.25x20, Hxflg, Tap/r-od
5
5434191
Cap-bumper (10) (10 Per Pack)
6
5438181-070
Brkt-bumper, Guard, Blk
7
5438240-070
Screen-bumper, Upper, Blk
8
7518529
Scr-m6x1.0x20, Hxhd, Flg, Tdfm, Bl(
9
1020154-458
Weld-seat Base, Cab Supt, M Blk
10
1021394-458
Weld-main Frame, Blk
11
1020151-329
Weld-cab Support, Front, Blk
13
7517281
Винт
14
7547332
Гайка м 8х1.25
15
5411435
Bumper-rubber, .62 Stealth
16
5450136
Plate-skid
17
7517386
Screw(10) (10 Per Pack)
18
7556065
Washer Skid Plate
19
7518158
Винт 14x1 Torx
20
7519650
Scr-txth-m6x1.0x25 Rie(10) (10 Per Pack)
21
5510898
Panel-heat-shield [from 5/2/16]
22
7518591
Scr-hxflghd, M6x16, 0600086 [from 5/2/16]
23
7519092
Scr-txth-m6x1.0x15 Zpb Tap [from 5/2/16]
24
7547453
Nut-hxfl-m6x1.0 8 Zb3 Nyl [from 5/2/16]
