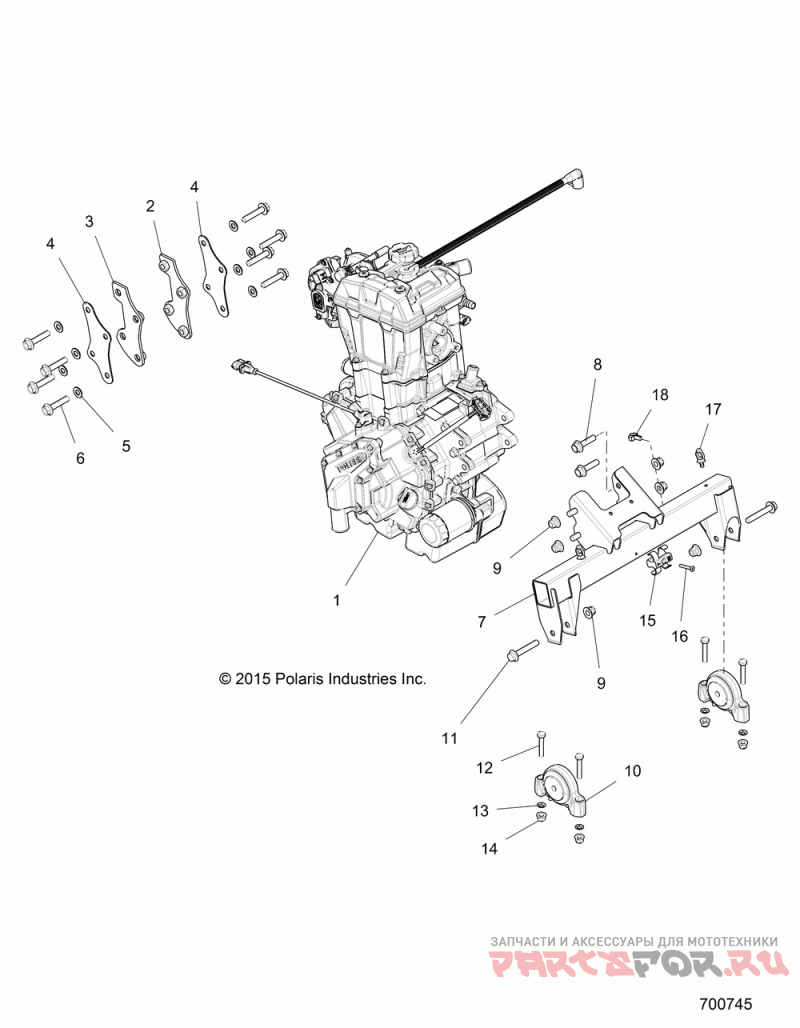

Engine, engine and transmission mounting

Polaris Ranger R16RDA57A1/B1 RANGER 570-6, FULL SIZE CREW

Polaris Ranger
#oem кодцена
1
2205747
Kit-long Block Rgr570 [note: The Long Block Assembly Contains A Crankcase, Balance Shaft, Cylinder Head, Piston And Crankshaft Assemblies. Also Incl. The Seals, Spark Plug, Valve Co
2
1018420
Weld-trans, Inner, Left
3
1018421
Weld-trans, Inner, Right
4
5255321
Brkt-coupler, Trans, Outer
5
7556153
Washer, 3/8 Fw(10) (10 Per Pack)
6
7518971
Scr-m10x1.5x50 8.8 Hx/fl Zod
7
1018903-329
Weld-mnt, Engine, Blk
8
7519332
Scr-hxfl-m10x1.25x40 8.8 Zod
9
7547333
Nut-m10x1.25, Flg, Nyloc-olive D(
10
1332955
Mount-isolator, Driveline
11
7518563
Bolt-m10x1.25x60, Hxflg-olive D
12
7519097
Scr-hh M8x1.25x45 8.8 Zod
13
7547030
Palnut
14
7547332
Гайка м 8х1.25
15
7081689
T-clip, T15
16
7512025
Винт
17
7081496
Clip-routing(10) (10 Per Pack)
18
7670102
Зажим
