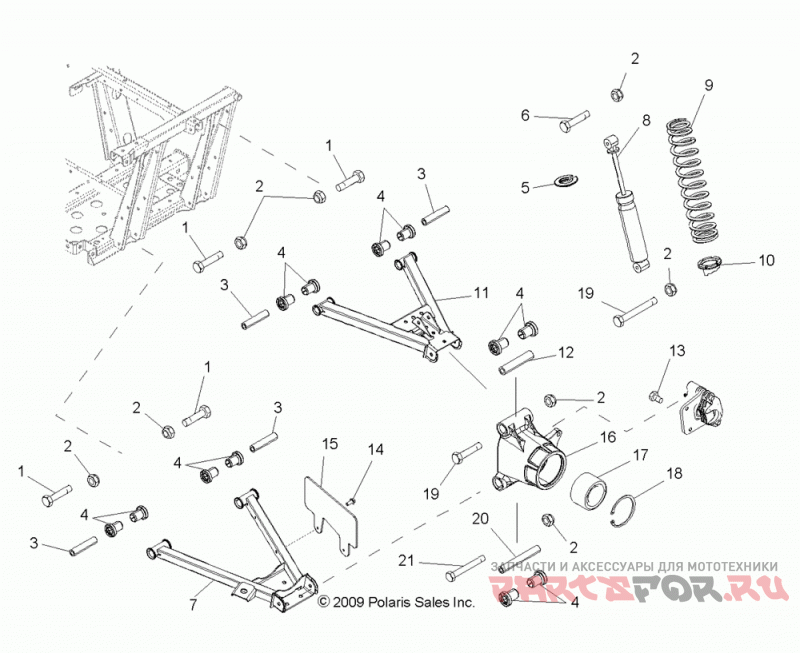

Подвеска задняя

Polaris Ranger R14TH76AA/AC/EAS/AAC/ACC/EASC RANGER 800

Polaris Ranger
#oem кодцена
1
7519043
Scr-hxfl-m10x1.25x95 10.9 Zod
2
7547333
Гайка m10x1.25
3
5137591
Shaft-pivot, 73.96mm, Zinc Olive
4
5439270
Втулка
5
5251753
Держатель пружины
6
7518563
Bolt-m10x1.25x60, Hxflg-olive D
7
1018185-458
Weld-control Arm, Rear, Lwr, Mblk
8
7043491
Shock-rear, 411.5mm Ext
9
7043754-458
Spring-240#, M.blk ([aa][ac] )
9
7043754-385
Spring-240#, C.slvr ([eas] )
9
7043691-458
Spring-comp, Front 180#, 12.5mbk ([aac][acc] )
9
7043691-385
Spring-comp, Front, Cslv ([easc] )
10
5253768
Cam-adjusting, Spring, Steel
11
1018184-458
Weld-control Arm, Rear, Upper, Mb
12
5137592
Shaft-pivot, 89.71mm, Zinc Yel
13
7518558
Bolt-m10x1.25x20, Hxflg-olv D ([rear Caliper Attach] )
14
7512084
Screw(10) (10 Per Pack)
15
5438639-070
Shield-cv, Rear, Blk
16
5136543
Carrier-bearing, Wheel, Rh(mach)
16
5136544
Carrier-bearing, Wheel, Lh(mach)
17
3514635
Bearing-wheel, 40x74x40mm
18
7710440
Стопорное кольцо
19
7518566
Bolt-m10x1.25x115, Hxflg-olived
20
5137593
Shaft-pivot, 115.11mm, Zinc Yel
21
7518562
Bolt-m10x1.25x140, Hxflg-olv D
