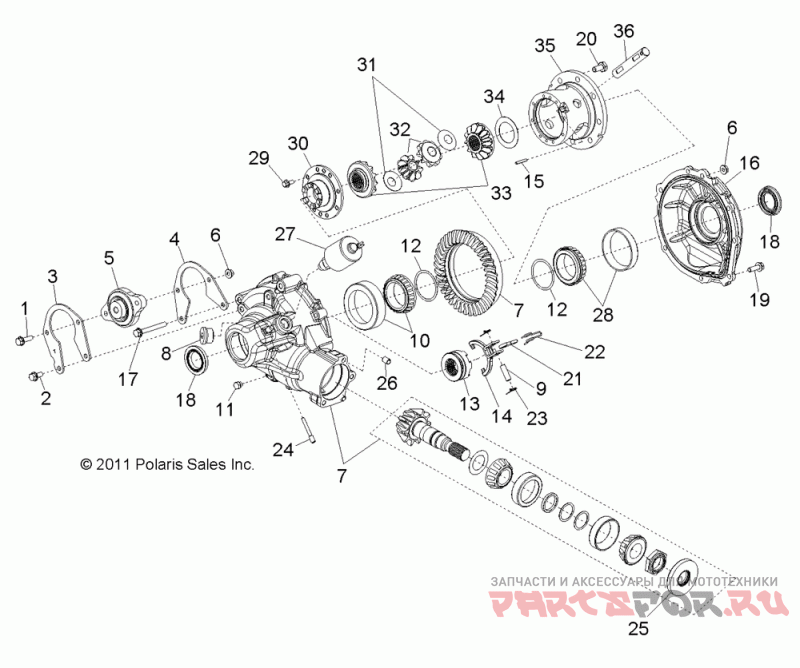

Drive train, gearcase, differential, internal components

Polaris Ranger RANGER RZR 4 800 EFI EPS INTL - R12XE7EFX

Polaris Ranger
#oem кодцена
3235361
Axle Spool(026ca117x) ([incl. All] )
1
3234618
Scr-5/16-18x1.125(026hm117-1)
2
3234511
Scr-5/16-18x.75, Fl(026hm103-4)
3
5250016
Brkt-diff Mnt Rear, Rh
4
5250329
Brkt-diff Mnt Rear, Lh
5
1332450
Mount-diff, Rear
6
3234500
Nut-flange(026hn107)
7
3235362
Asm-housing, Kit ([incl. 18, 25] )
8
5133736
Plug-fill/check
9
2203507
Bushing-lock, Pin
10
3514657
Bearing-tapered Rlr(026hc100)
11
5133731
Заглушка
12
3234504
Kit-shim, Spool(026kf101)
13
5137196
Gear-clutch
14
5133759
Yoke-shift 026sv100
15
3234487
Pin-spring(500596-15)
16
3235359
Asm-cover, Rear ([incl. 18] )
17
3234501
Scr-5/16-18x2.750(026hm103-3)
18
3610159
Seal-oil, Shaft, 026hh116
19
7518172
Bolt-hex, Flanged, 026hm103
20
7518173
Bolt-hex 41221
21
5133760
Lever-shift 026sv101
22
7042209
Spring-lever, Shift 026he100
23
7042210
Spring-return, Shift 026he101
24
2203503
Pin-lock Asm.
25
3610102
Seal-oil, Pinion 026hh102
26
3234503
Bushing-dowel(026hp105)
27
2411634
Solenoid-diff.lock
28
3514435
Bearing-tapered Roller026hd101
29
3234885
Screw-flange Head(026mh109-1)
30
3234883
Case-diff, Cover, Half(026dc108)
31
7556347
Washer-thrust, Pinion, 34096
32
5134903
Gear-pinion, Mate, Diff, 51451
33
3234894
Side Gear (026gd101)
34
3234884
Washer-thrust, Side Gear(34095)
35
3234882
Case-diff, Half(026dc106)
36
5134902
Pin-cross, Diff, 026dp101
