Сидение для мотовездеходов Polaris Ranger RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR (2012)

Москва и регионы России

Сидение

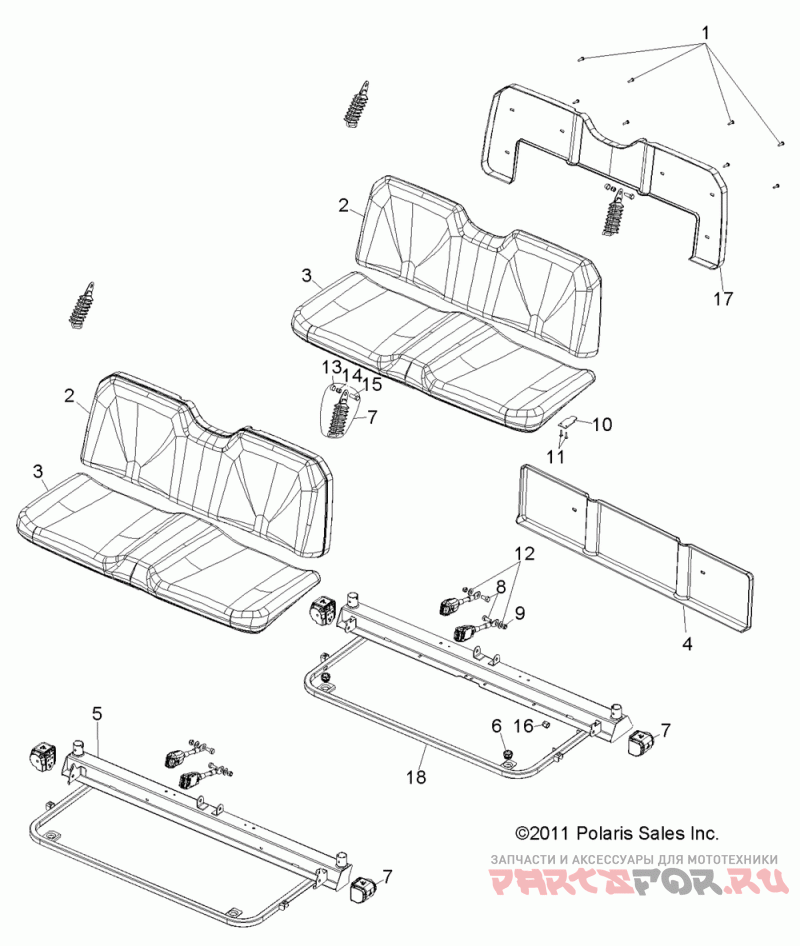

Polaris Ranger RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR

Сидение

#

oem код

название

цена

1

Винт 14x1 Torx

Винт 14x1 Torx

2

Asm-seat, Rngr, Back, Blk ([ag][ah][ar] )

Asm-seat, Rngr, Back, Blk ([ag][ah][ar] )

2

Asm-seat, Rngr, Back, Blk/slvr ([ak] )

Asm-seat, Rngr, Back, Blk/slvr ([ak] )

3

Asm-seat, Rngr, Btm, Blk ([incl. 10, 11][ag][ah][ar] )

Asm-seat, Rngr, Btm, Blk ([incl. 10, 11][ag][ah][ar] )

3

Asm-seat, Rngr, Btm, Blk/slvr ([incl. 10, 11][ak] )

Asm-seat, Rngr, Btm, Blk/slvr ([incl. 10, 11][ak] )

4

Cover-seat, Middle, Lower

Cover-seat, Middle, Lower

5

Weld-cab/seat Base, M Blk

Weld-cab/seat Base, M Blk

6

Уплотнитель резиновый

Уплотнитель резиновый

7

Asm-seat Belt, 3pt ([incl. 13-16] )

Asm-seat Belt, 3pt ([incl. 13-16] )

8

Bolt-7/16-14x1.00-hx/cp-gr5, Y

Bolt-7/16-14x1.00-hx/cp-gr5, Y

9

Гайка

Гайка

10

Tab-mount, Seat

Tab-mount, Seat

11

Заклёпка

Заклёпка

12

Washer-flat, .531x1.063x.094-y

Washer-flat, .531x1.063x.094-y

14

Nut-7/16-20, Nylok, Y (10)

Nut-7/16-20, Nylok, Y (10)

15

Болт

Болт

17

Cover-seat, Back, Blk

Cover-seat, Back, Blk

18

Weld-cab/seat Base, M Blk

Weld-cab/seat Base, M Blk
