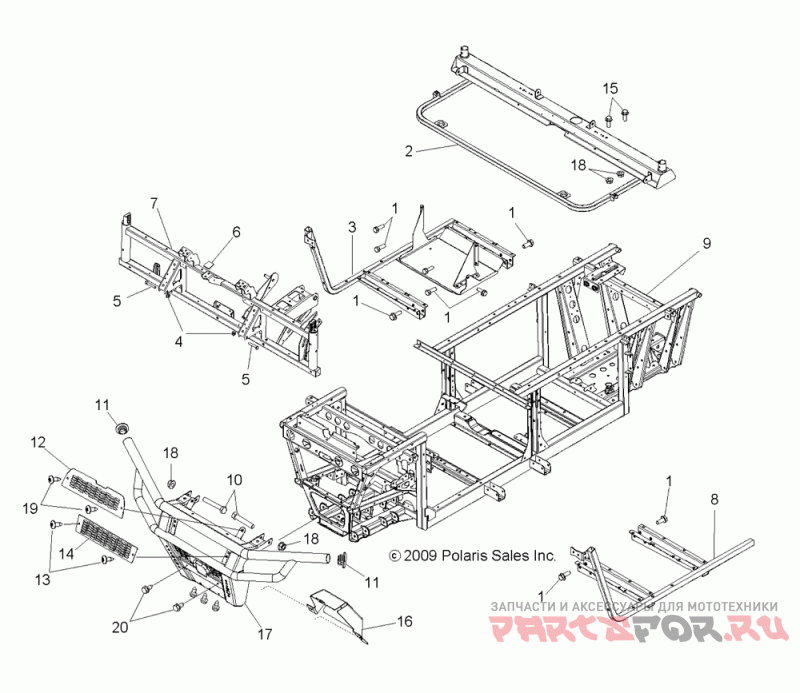

Chassis, frame and front bumper

Polaris Ranger R10TH76/TY76 RANGER 4X4 800 EFI ALL OPTIONS

Chassis, frame and front bumper

#

oem код

название

цена

1

Bolt-m8x1.25x20, Hxflg, Tap/r-od

Bolt-m8x1.25x20, Hxflg, Tap/r-od

9

Weld-main Frame, Blk

Weld-main Frame, Blk

10

Bolt-m10x1.5x75, Hx Hd Flg

Bolt-m10x1.5x75, Hx Hd Flg

11

Cap-bumper (10)

Cap-bumper (10)

12

Screen-fascia, Blk

Screen-fascia, Blk

13

Scr--20x1/2 Tr/tx/tap/r B

Scr--20x1/2 Tr/tx/tap/r B

14

Screen-bumper, Upper, Blk

Screen-bumper, Upper, Blk

15

Винт

Винт

16

Brkt-bumper, Guard, Blk

Brkt-bumper, Guard, Blk

17

Weld-bumper, Ewb

Weld-bumper, Ewb

18

Nut-m10x1.5,hxflg, Nylon Ins

Nut-m10x1.5,hxflg, Nylon Ins

2

Weld-cab/seat Base, Blk

Weld-cab/seat Base, Blk

19

Винт (отпускается по 10шт.)

Винт (отпускается по 10шт.)

20

Винт 14x1 Torx

Винт 14x1 Torx

3

Weld-floor Support, Rh, Blk

Weld-floor Support, Rh, Blk

4

Гайка m10x1.25

Гайка m10x1.25

5

Bolt-m10x1.25x60, Hxflg-olive D

Bolt-m10x1.25x60, Hxflg-olive D

6

Foam-hood Support

Foam-hood Support

7

Weld-cab Support, Frt, Blk

Weld-cab Support, Frt, Blk

8

Weld-floor Support, Lh, Blk

Weld-floor Support, Lh, Blk
