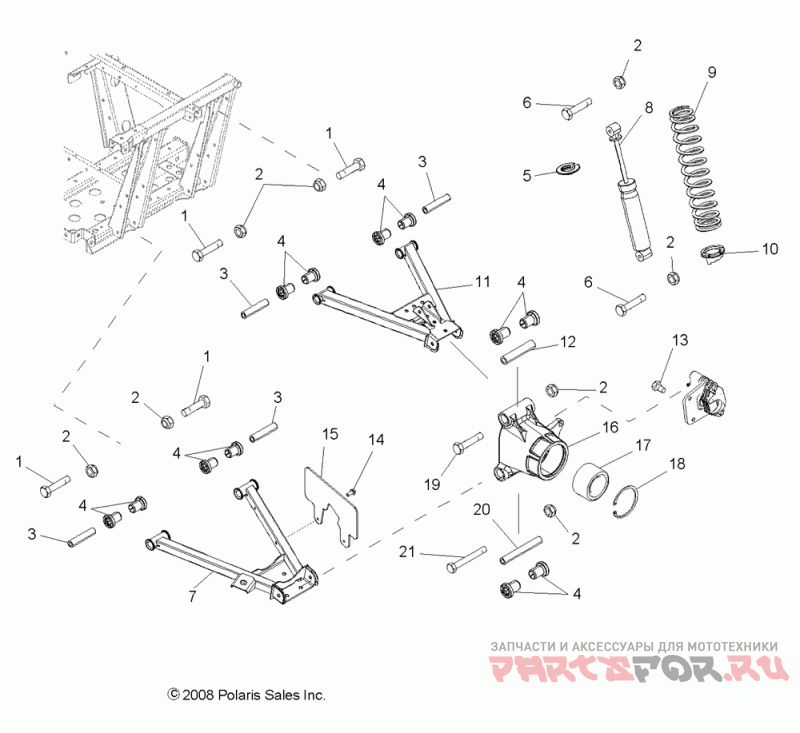

Подвеска задняя

Polaris Ranger R09HH68/HY68 RANGER 4X4 700 EFI ALL OPTIONS

Polaris Ranger
#oem кодцена
8
7043491
Shock-rear, 411.5mm Ext ([ab][ag][ah][al][am][ar][as][av][az] )
8
7043434
Shock-rear, Nivo ([an] )
9
7042334-067
Spring-200#/12.75, Blk ([ag][ah][al][ar][as] )
9
7042334-385
Spring-240#/in, 12.75, Cld Slvr ([ab][am][av][az] )
9
7043438-385
Spring-rear, Nivo, Cld Slv ([an] )
10
5630551
Cam, Adjust, Spring ([ab][ag][ah][al][am][ar][as][av][az] )
11
1016730-067
Weld-control Arm, Upper, Blk ([ab][ag][ah][al][am][ar][as][av][az] )
11
1016730-385
Weld-control Arm, Upper, Cld Slv ([an] )
12
5136580
Shaft-a-arm, Upper, Rear, Metric
13
7512365
Screw, Cap(10) ([rear Caliper Attach] )
14
7512084
Винт (отпускается по 10шт.)
15
5437816-070
Shield-cv, Rear, Blk
1
7518560
Bolt-m10x1.25x95, Hxflg-olive D
16
5136543
Carrier-bearing, Wheel, Lh(mach)
16
5136544
Carrier-bearing, Wheel, Rh(mach)
17
3585502
Подшипник
18
7710440
Стопорное кольцо
19
7518566
Bolt-m10x1.25x115, Hxflg-olived
20
5136581
Shaft-a-arm, Lower, Rear, Metric
21
7518562
Bolt-m10x1.25x140, Hxflg-olv D
2
7547333
Гайка m10x1.25
3
5335448
Tube-pivot, 73.96mm
4
5434548
Втулка
5
5251753
Retainer-spring, Steel ([ab][ag][ah][al][am][ar][as][av][az] )
5
5252916
Retainer-spring, Steel ([an] )
6
7518563
Bolt-m10x1.25x60, Hxflg-olive D
7
1016350-067
Weld-control Arm, Lwr, Lh, Blk ([ab][ag][ah][al][am][ar][as][av][az] )
7
1016351-067
Weld-control Arm, Lwr, Rh, Blk ([ab][ag][ah][al][am][ar][as][av][az] )
7
1016350-385
Weld-control Arm, Lwr, Lh, C.slv ([an] )
7
1016351-385
Weld-control Arm, Lwr, Rh, C.slv ([an] )
17
3514635
Bearing-wheel, 40x74x40mm
