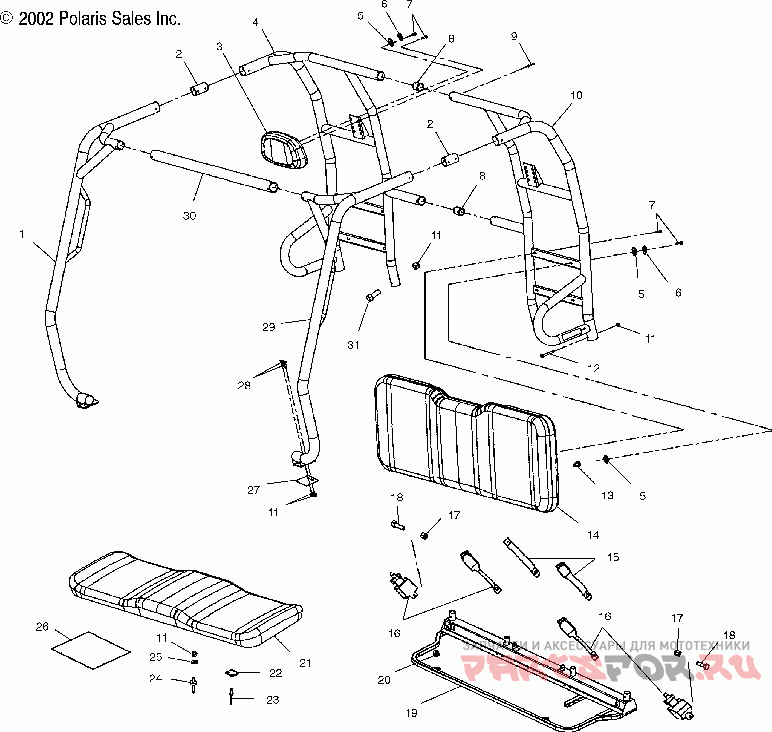

Cab frame

Polaris Ranger C10RD50AA UTV 4X4

Polaris Ranger
#oem кодцена
1
1013333-067
Cab Frame, Right, Front, Blk
2
5243093-067
Tube-coupler, Top, Rear, Blk
4
1013717-067
Asm-cab Frame, Rear, Right, Blk ([incl. Warning Decals] )
5
7558301
Washer, Flat(10) * ([if Built Before 2/18/02] )
6
7552801
Washer, Spring Lock(10) ([if Built Before 2/18/02] )
7
7512247
Bolt(10) * ([if Built Before 2/18/02] )
7
7517230
Screw(10) * ([if Built After 2/18/02] )
8
5243092-067
Tube-coupler, Rr, Center, Blk
9
7661637
Заклёпка
10
1013716-067
Asm-cab Frame, Rear, Left, Blk ([incl. Warning Decals] )
11
7542324
Гайка (отпускается по 10шт)
12
7515339
Болт
13
7541923
Nut-well(10) * ([if Built Before 2/18/02] )
13
7670096
Nut (10) ([if Built After 2/18/02] )
14
2683124-317
Asm-seat, Back, Gunmetal ([if Built Before 2/18/02] )
15
2632422
Seat, Belt, Ctr.asm.r
16
2632421
Seat Belt, Asm.
17
7542525
Гайка
18
7512539
Болт
19
1013336-067
Cab, Seat Base, Blk
20
5412507
Уплотнитель
21
2683817-317
Asm-seat, Rngr, Btm, Gunmetal ([incl. 11, 22, 23, 24, 25, 26] )
22
5245676
Tab-mount, Seat
23
7621479
Заклёпка
24
5910096
Pin-seat Latch
25
7555734
Шайба (отпускается по 10шт)
26
5812295
Foil-seat
27
5812313
Pad-cab Frame, Front
28
7515321
Болт
29
1013332-067
Cab Frame, Left, Front, Blk
30
5244844-067
Tube-cab Frame, Top, Front, Blk
31
7515319
Болт
