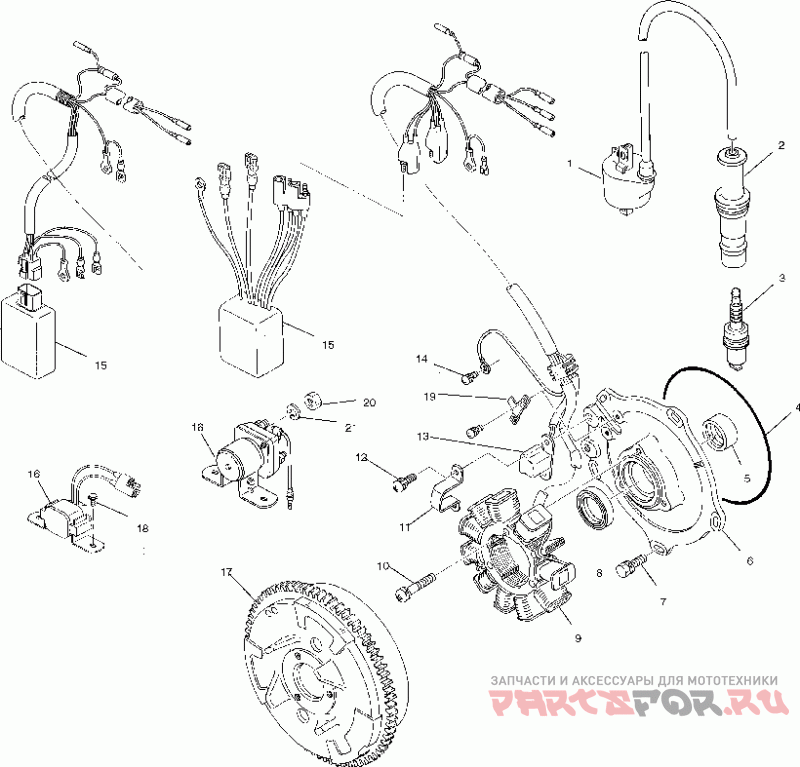

Генератор

Polaris Ranger A11RB42AA/A11RD50AA/AB/A11RF50AA RANGER

Polaris Ranger
#oem кодцена
1
3084979
Coil, Ignition (if Built Before 8/09/02 In 2x4)
1
3085227
Coil, Ignition * [if Built After 8/09/02 In 2x4)(4x4)(6x6)
2
3084980
Cap, Sparkplug *
3
3070175
Sparkplug, Bkr5e(4)
4
3084978
Кольцо уплотнительное
5
3084972
Bearing, Metal
6
3086859
Plate, Asm * [incl. 5, 6, 8-14](if Built Before 8/09/02 In 2x4)
6
3089269
Asm-plate [incl. 5, 6, 8-14](if Built After 8/09/02 In 2x4)(4x4)(6x6)
6
3084971
Plate (if Built Before 8/09/02 In 2x4)
6
3086981
Plate (if Built After 8/09/02 In 2x4)(4x4)(6x6)
7
3081657
Болт с шайбой (отпуск.по 10шт)
8
3084973
Сальник
9
3086860
Stator * [incl. 13](if Built Before 8/09/02 In 2x4)
9
3087168
Stator [incl. 13](if Built After 8/09/02 In 2x4)(4x4)(6x6)
10
3081342
Screw&washer Asm(10) (if Built Before 8/09/02 In 2x4)
10
3086985
Asm., Screw And Washer [if Built After 8/09/02 In 2x4)(4x4)(6x6)
11
3085554
Band, Pulse
12
3084976
Screw&washer Asm.
13
3085360
Coil, Pulser *
14
3081256
Screw&washer Asm(10)
15
3085639
Cdi System * (if Built Before 8/09/02 In 2x4)
15
3087169
Cdi-system (if Built After 8/09/02 In 2x4)(if Built After 1/03 In 4x4 And 6x6)
15
3087201
Cdi-system (if Built Before 1/03 In 4x4 And 6x6)
16
4011335
Switch-magnetic (if Built Before 8/09/02 In 2x4)
16
4011087
Switch-magnetic [if Built After 8/09/02 In 2x4)(4x4)(6x6)
17
3086857
Flywheel, W/ring Gear * (if Built Before 8/09/02 In 2x4)
17
3087166
Flywheel-w/ring Gear [if Built After 8/09/02 In 2x4)(4x4)(6x6)
18
3085359
Bolt, Flange(10) (use W/3087198)
19
3084977
Clamp [2x4](if Built Before 8/09/02)
21
3080077
Washer Spring(10) [2x4](if Built Before 8/09/02)
20
3083073
Nut [2x4](if Built Before 8/09/02)
