  5. Z17VFE99AM/AW/LW/M99AB RZR XP 4 1000

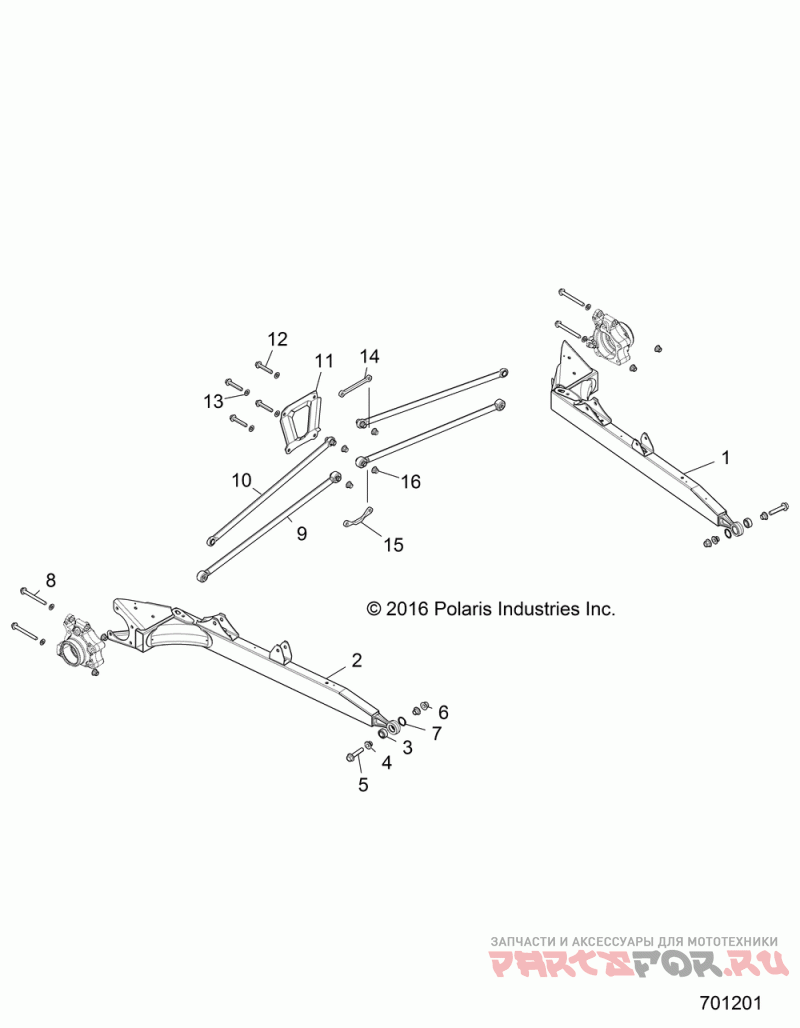

Suspension, rear control arms

Polaris RZR Z17VFE99AM/AW/LW/M99AB RZR XP 4 1000

Polaris RZR
#oem кодцена
1
1019356-293
Weld-trl Arm, Lh, I.red [am]
1
1019356-630
Weld-trl Arm, Lh, Lime Sq [aw][lw]
1
1019356-689
Weld-trl Arm, Lh, Vl Bl [ab]
2
1019357-293
Weld-trl Arm, Rh, I.red [am]
2
1019357-630
Weld-trl Arm, Rh, Lime Sq [aw][lw]
2
1019357-689
Weld-trl Arm, Rh, Vl Bl [ab]
3
3514689
Bearing-spherical, 0.625
4
5336751
Bushing-reducer, 12mm
5
7519138
Scr-hxfl-m12x1.5x60 10.9 Zod
6
7547334
Nut-m12x1.5, Flg, Nyloc-olive D [qty 10 For Ab, Az]
7
7710437
Стопорное кольцо
8
7519284
Scr-hxfl-m10x1.25x100 10.9 Zod [am][aw][lw]
8
7520479
Scr-hxfl-m12x1.5x105 10.9 Zod [ab]
9
1543204-293
Asm-radius Rod, Btm, I.red [am]
9
1543204-630
Asm-radius Rod, Btm, Lime Sq [aw][lw]
9
1543744-689
Asm-radius Rod, Vl Bl [ab]
10
1543377-293
Asm-radius Rod, I Red [am]
10
1543377-630
Asm-radius Rod, Lime Sq [aw][lw]
10
1543751-689
Asm-radius Rod, Btm, Hc, V.blue [ab]
11
5259640-458
Plate-rear, Bolt Brace, Blk [am][aw][lw]
12
7519306
Scr-hxfl-m10x1.25x60 10.9 Zod [am][aw][lw]
12
7520478
Scr-hxfl-m12x1.5x80 10.9 Zod [ab]
13
7556287
Washer-fl, 13x2.5 [ab]
14
5262747-458
Brkt-spacer Plate, Upper, Blk [ab]
15
5262748-458
Brkt-spacer Plate, Lower, Blk [ab]
16
7547333
Nut-m10x1.25, Flg, Nyloc-olive D(
