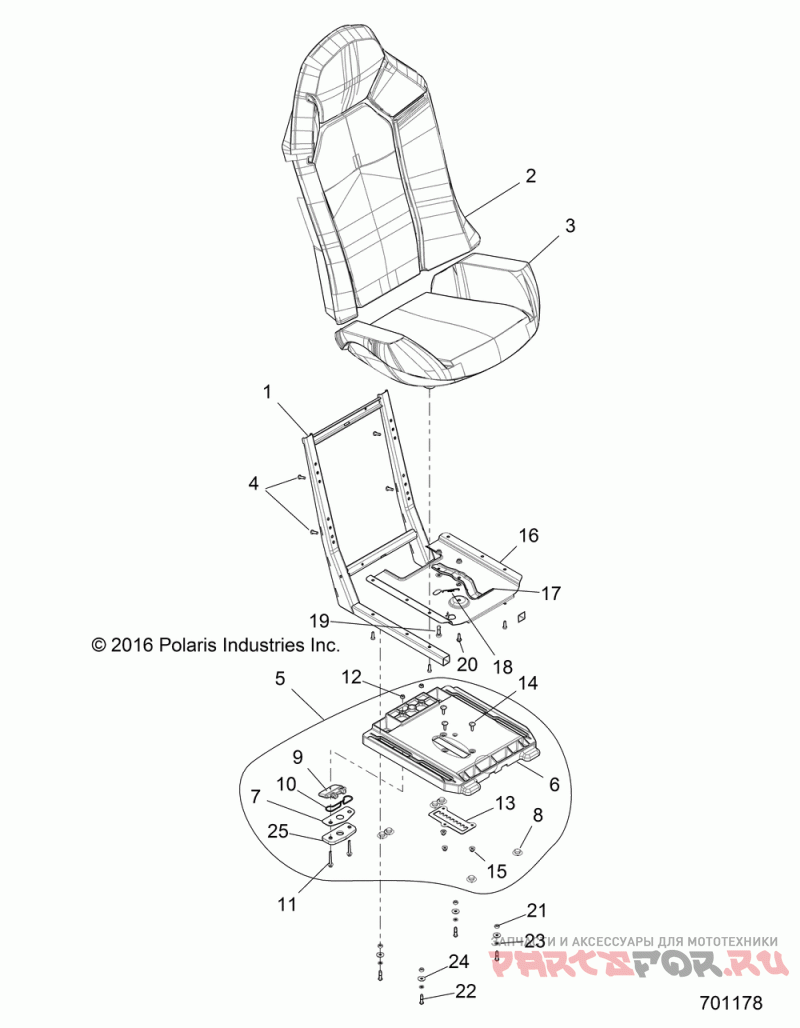

Body, seat asm. and slider

Polaris RZR Z17VD_99AB/AK/AM/AW/LW/AZ RZR XP 1000

Polaris RZR
#oem кодцена
1
1021289
Weld-seat Frame
2
2686714
Asm-seat, Back, Black [a2]
2
2686791
Asm-seat Back, Hav Red/blk [am]
2
2686797
Asm-seat Back, Lime S/blk [aw][lw][ak]
2
2687187
Asm-seat Back, White/gold [az]
2
2687283
Asm-seat Back, Blk/v.blue [ab]
3
2686717
Asm-seat Btm, Black [a2]
3
2686794
Asm-seat Btm, Hav Red/blk [am]
3
2686800
Asm-seat Btm, Lime S/blk [aw][lw][ak]
3
2687190
Asm-seat Btm, White/gold [az]
3
2687286
Asm-seat Btm, Blk/v.blue [ab]
4
7515177
Винт
5
2634889
Asm-base, Seat [incl. 6-12, 25]
5
2685704
Asm-base,seat Slider [incl. 6-14, Qty 3 Of 15,25]
6
5450170
Seat-base
7
5258647
Plate-latch, Seat
8
5413441
Grommet-seat Base
9
5437121
Lever-latch, Seat
10
7081466
Spring-latch, Seat
11
7517610
Screw (10) * (10 Per Pack)
12
7546703
Гайка с нейлоном (отпускается по 10шт)
13
5257975
Brkt-seat Slider Adj Plate
14
7518994
Bolt-carr M6x1.0x20 8.8 Zod
15
7547339
Гайка m6x1.0
16
5261437
Brkt-seat Slider Mntg Plate
17
5260733
Brkt-seat Slider Lever
18
7044099
Пружина
19
7518786
Bolt-shoulder, M8-16, M6x1.0-y
20
7518897
Bolt-m6x1.0x15, Hx/flg/tx, Shldr
21
5337939
Tube-spacer
22
7519296
Scr-1/4-20x1-bh-trx-gr5-z
23
7552801
Washer, Spring Lock(10) (10 Per Pack)
24
7555859
Washer, Flat(10) (10 Per Pack)
25
5450510-070
Latch-cover Plate, Blk
