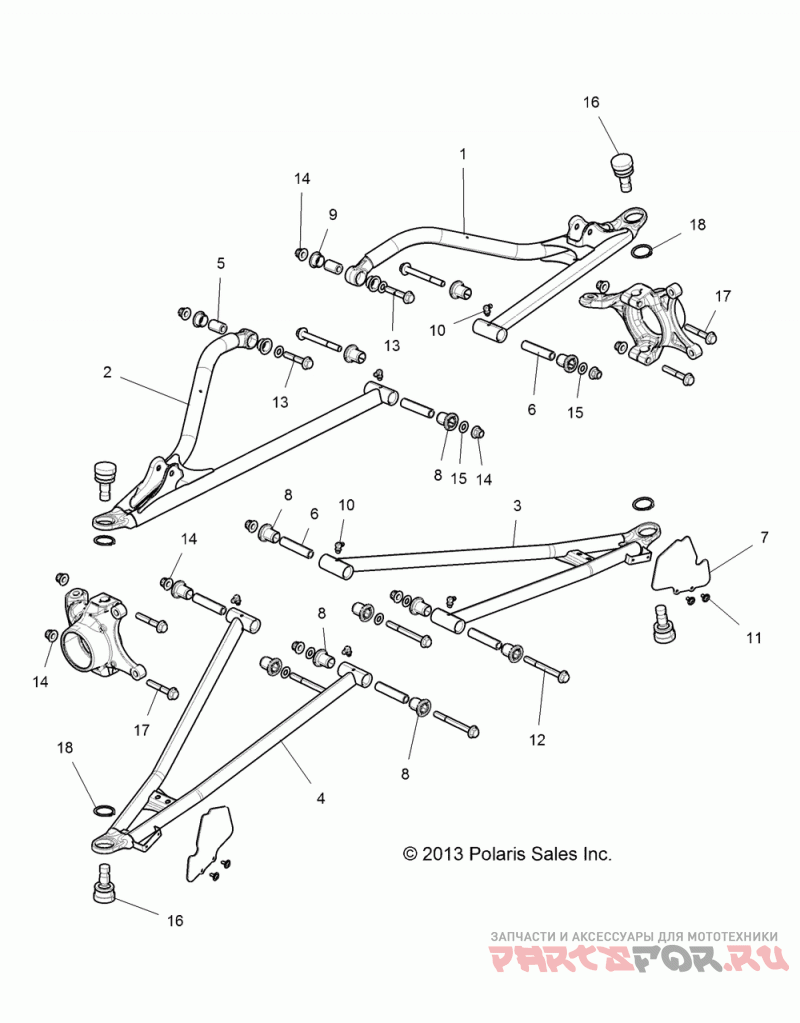

Suspension, front control arms

Polaris RZR Z16VFE99AF/AS/AM/M99AM RZR XP 4 1000

Polaris RZR
#oem кодцена
1
1021732-385
Weld-ctrl Arm, Upr, Fr, Lh, 64, Slv [m99am][as]
1
1021732-630
Weld-ctrl Arm, Upr, Fr, Lh, 64, L/s [e99af]
2
1021733-385
Weld-ctrl Arm, Upr, Fr, Rh, 64, Slv [e99am][as]
2
1021733-630
Weld-ctrl Arm, Upr, Fr, Rh, 64, L/s [m99am]
3
1018826-385
Weld-ctl Arm, Lwr, Fr, Lh, 64, Clsv [e99af][as]
3
1018826-630
Weld-ctrl Arm, Lwr, Fr, Lh, 64, L/s [e99am]
4
1018827-385
Weld-ctl Arm, Lwr, Fr, Rh, 64, Clsv [e99af][as]
4
1018827-630
Weld-ctrl Arm, Lwr, Fr, Rh, 64, L/s [e99am]
5
5138276
Tube-pivot, 29.2mm [m99am]
6
5138797
Shaft-pivot, 70.99mm, 15.88od [e99af]
7
5438641-070
Shield-cv, Front, Blk [e99am]
8
5439874
Bushing-standard, Orv [m99am]
9
5450095
Bushing-control Arm, Igus
10
7080510
Фитинг
11
7512084
Screw(10) (10 Per Pack)
12
7519043
Scr-hxfl-m10x1.25x95 10.9 Zod
13
7519285
Scr-hxfl-m10x1.25x55 10.9 Zod
14
7547333
Гайка m10x1.25
15
7556153
Шайба
16
7081992
Ball-joint, Hardened
17
7519306
Scr-hxfl-m10x1.25x60 10.9 Zod
18
7710716
Ring-rtg, Dsh-33st
