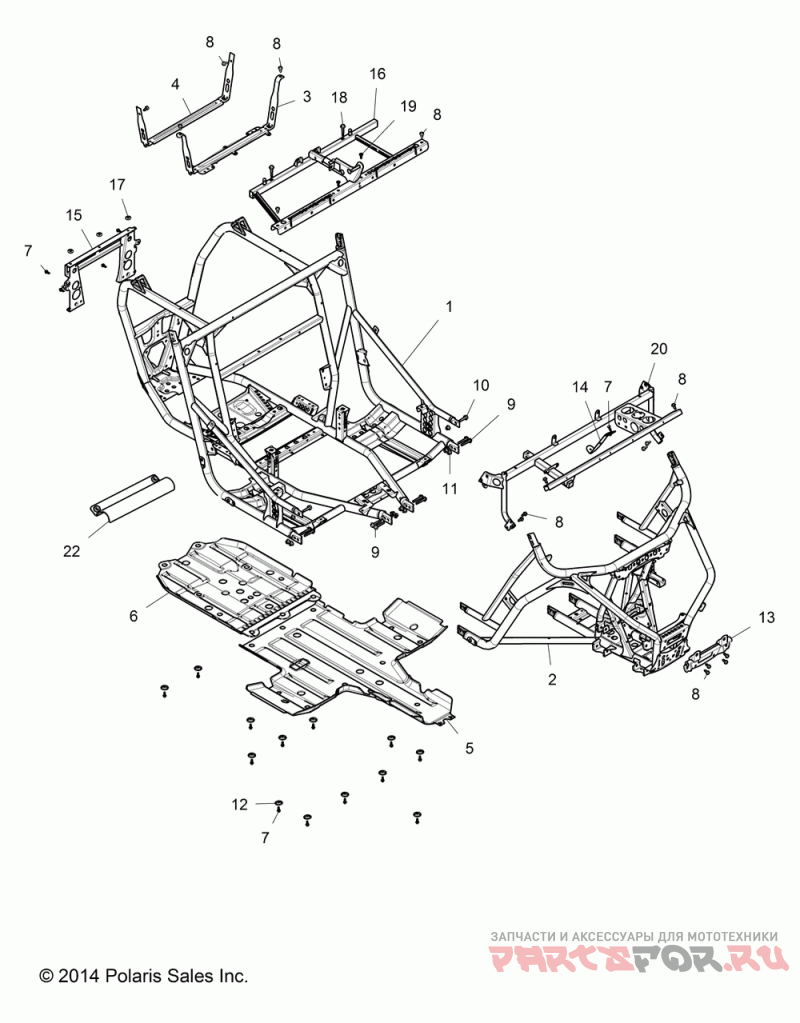

Chassis, main frame and skid plates

Polaris RZR Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU RZR XP 1000

Polaris RZR
#oem кодцена
1
2206230
K-weld-main Frame, Blk-sp [at][av][aw][aa][lp][ao][ap][au][az][nv][nw]
1
1019211-589
Weld-main Frame, Org Mad [al]
2
1021320-458
Weld-mainframe, Frt, Sway, Blk [at][av][aw][aa][lp][ao][ap][au][az][nv][nw]
2
1021320-589
Weld-mainframe, Frt, Sway, O.mad [al]
3
5257305-329
Brkt-box Strap, Blk
4
5258699-329
Brkt-box Support Rear, Blk
5
5450239-070
Plate-skid, Blk
6
5450568-070
Plate-skid, Rear, Blk
7
7518529
Винт -m6x1.0x20
8
7518555
Bolt-m8x1.25x20, Hxflg, Tap/r-od
9
7519285
Scr-hxfl-m10x1.25x55 10.9 Zod
10
7519332
Scr-hxfl-m10x1.25x40 8.8 Zod
11
7547333
Гайка m10x1.25
12
7556065
Washer Skid Plate
13
5259449-458
Brkt-susp Mnt, Frt, M.blk
14
5257304-329
Brkt-din Mnt, Blk
15
1019529-458
Weld-support, Rear, Blk
16
1020571-329
Asm-seat Base, Blk
18
7518474
Bolt-m10x1.5x55, Hx Hd Flg
19
7519650
Scr-txth-m6x1.0x25 Rie
20
1020984-329
Weld-dash, E-coat Blk
22
5260402-329
Brkt-skidplate Mount, Blk [aa]
