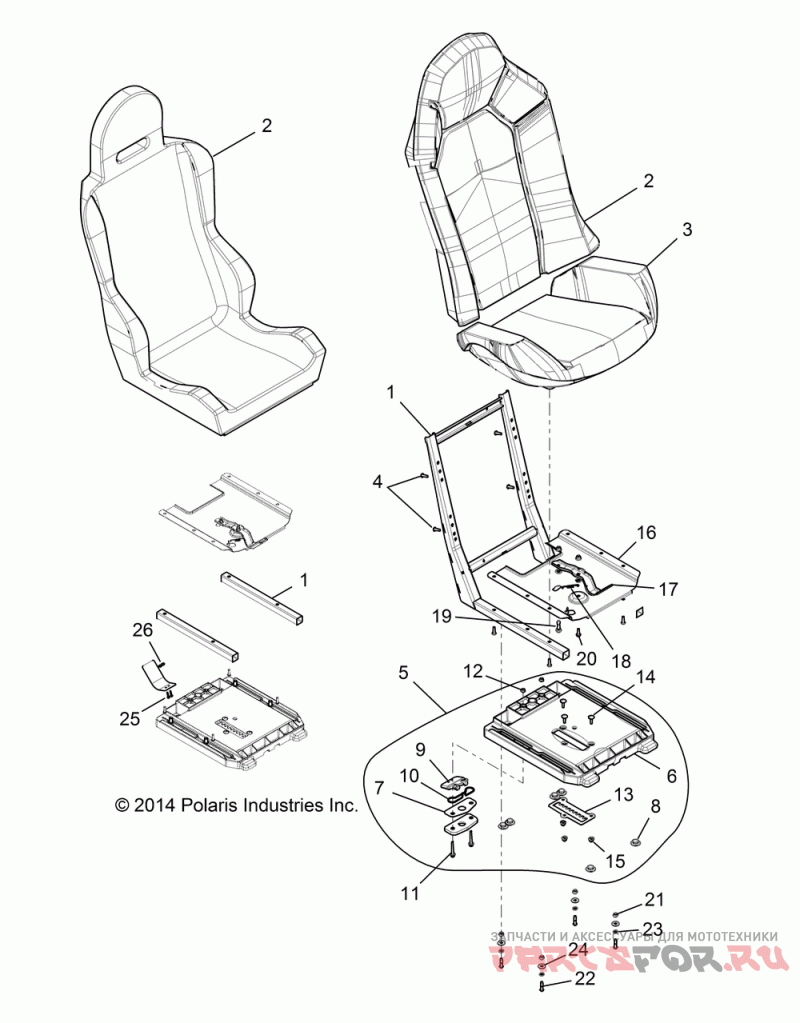

Body, seat asm. and slider

Polaris RZR Z15VDE99AT/AL/AV/AW/LP/EW/AO/AP/AZ/NV/NW/K99AA/AU RZR XP 1000

Polaris RZR
#oem кодцена
1
2635220
Asm-seat Base, Tube [aa][not Shown]
1
1019447
Weld-seat Frame [aa][at][av][aw][lp][nv][nw]
2
2686247
Asm-seat Back, Blk/silver [at][av][ap][au][nv][nw]
2
2685974
Asm-seat Back, Blk/white [aw][lp][az]
2
2686277
Asm-seat Back, Blk/wht [al]
2
2686323
Asm-seat, Prp, Rzn, Vd Blu [aa]
2
2686599
Asm-seat Back, Blk/slvr/orng [ao]
3
2686248
Asm-seat Btm, Blk/silver [at][av][ap][au][nv][nw]
3
2685981
Asm-seat Btm, Blk/white [aw][lp][az]
3
2686280
Asm-seat Btm, Blk/wht [al]
3
2686600
Asm-seat Btm, Blk/silver/orng [ao]
4
7515177
Screw [incl. Qty. 8][aa]
5
2685704
Asm-base,seat Slider [incl. 6-14, Qty 6 Of 15]
6
2634889
Asm-base, Seat [incl. 7-12]
7
5258647
Plate-latch, Seat
8
5413441
Grommet-seat Base
9
5437121
Lever-latch, Seat
10
7081466
Spring-latch, Seat
11
7517610
Screw (10) * (10 Per Pack)
12
7546703
Гайка с нейлоном (отпускается по 10шт)
13
5257975
Brkt-seat Slider Adj Plate
14
7518994
Bolt-carr M6x1.0x20 8.8 Zod
15
7547339
Гайка m6x1.0
16
5257974
Brkt-seat Slider Mntg Plate
17
5260101
Brkt-seat Slider Lever
18
7044099
Пружина
19
7518786
Bolt-shoulder, M8-16, M6x1.0-y
20
7518897
Bolt-m6x1.0x15, Hx/flg/tx, Shldr
21
5337939
Tube-spacer
22
7519296
Scr-1/4-20x1-bh-trx-gr5-z
23
7552801
Washer, Spring Lock(10) (10 Per Pack)
24
7555859
Washer, Flat(10) (10 Per Pack)
25
7520177
Scr-phphd-#6-32x5/8 Zpc [aa]
26
7547624
Nut-6-32, Hx, Nylock, Znc [aa]
