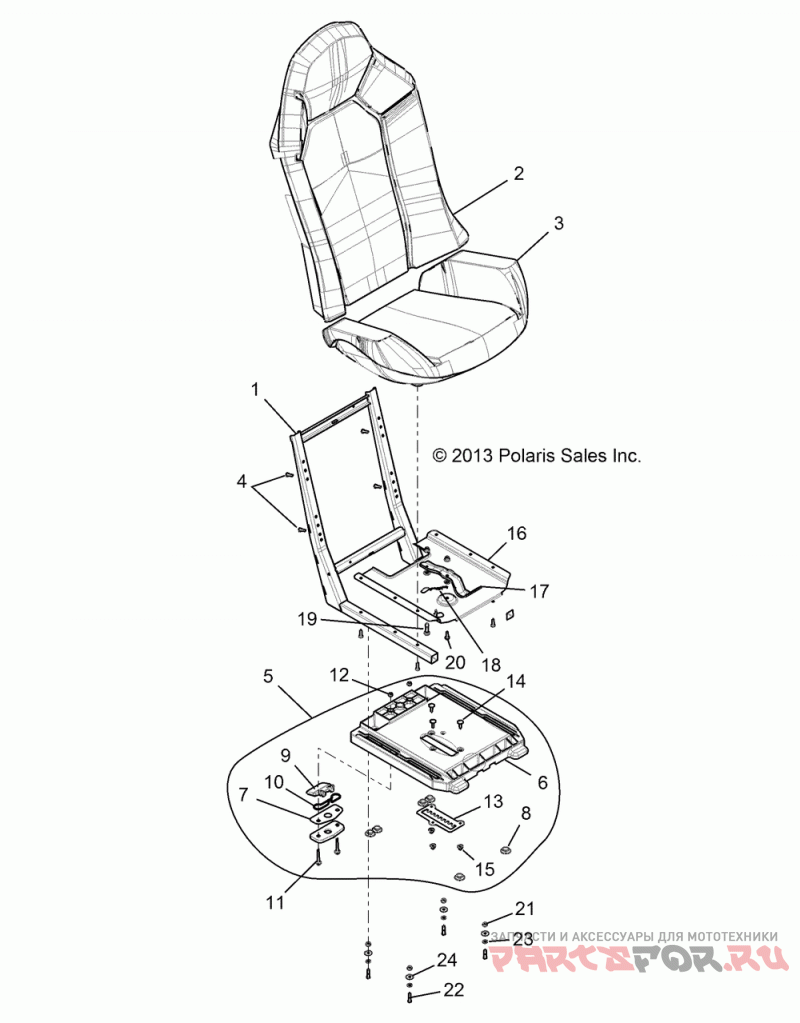

Body, seat asm. and slider

Polaris RZR Z14ST1EAM/EAW/EAK/EAN/EFW RZR XP 1000

Polaris RZR
#oem кодцена
1
1019447
Weld-seat Frame
2
2685967
Asm-seat Back, Blk/org Mad [am]
2
2685974
Asm-seat Back, Blk/white [aw]
2
2685638
Asm-seat Back, Blk/silver [eak]
2
2685630
Asm-seatback, Blk, Nso [ean]
2
2686075
Asm-seatback, Blue/white [efw]
3
2685970
Asm-seat Btm, Blk/org Mad [am]
3
2685981
Asm-seat Btm, Blk/white [aw]
3
2686011
Asm-seat Btm, Blk/silver [eak]
3
2685634
Asm-seat Btm, Blk, Nso [ean]
3
2686076
Asm-seat Btm, Blue/white [efw]
4
7515177
Винт
5
2685704
Asm-base,seat Slider [incl. 6-14, Qty 6 Of 15]
6
2634889
Asm-base, Seat [incl. 7-12]
7
5251162
Plate-latch, Seat [built 9/01/13 And Before]
7
5258647
Plate-latch, Seat [built 9/02/13 And After]
8
5413441
Grommet-seat Base
9
5437121
Lever-latch, Seat
10
7081466
Spring-latch, Seat
11
7517610
Screw (10) * (10 Per Pack)
12
7546703
Гайка с нейлоном (отпускается по 10шт)
13
5257975
Brkt-seat Slider Adj Plate
14
7518994
Bolt-carr M6x1.0x20 8.8 Zod
15
7547339
Гайка m6x1.0
16
5257974
Brkt-seat Slider Mntg Plate
17
5257976
Brkt-seat Slider Lever
18
7044099
Пружина
19
7518786
Bolt-shoulder, M8-16, M6x1.0-y
20
7518897
Bolt-m6x1.0x15, Hx/flg/tx, Shldr
21
5337939
Tube-spacer
22
7519296
Scr-1/4-20x1-bh-trx-gr5-z
23
7552801
Washer, Spring Lock(10) (10 Per Pack)
24
7555859
Washer, Flat(10) (10 Per Pack)
