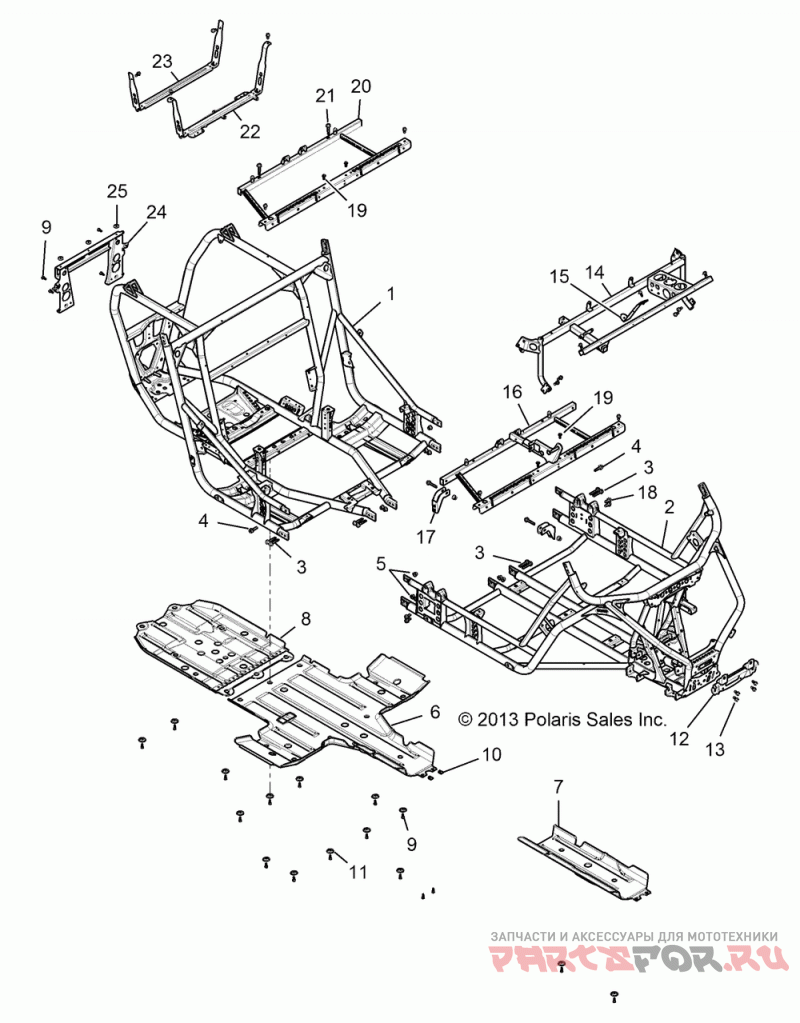

Chassis, main frame and skid plates

Polaris RZR Z146T1EAM/EAW RZR XP 4 1000/PS

Polaris RZR
#oem кодцена
1
2206230
K-weld-main Frame, Blk-sp
2
1021322-458
Weld-mainframe, Frt, Mp, Swy, M.bk
3
7519285
Scr-hxfl-m10x1.25x55 10.9 Zod
4
7519332
Scr-hxfl-m10x1.25x40 8.8 Zod
5
7547333
Гайка m10x1.25
6
5450239-070
Plate-skid, Blk
7
5450556-070
Plate-skid, Blk
8
5450568-070
Plate-skid, Rear, Blk
9
7518529
Винт -m6x1.0x20
10
7547674
Nut-m6-1.0, U-type (2.5-3.8)
11
7556065
Washer Skid Plate
12
1019453-458
Weld-suspension Mnt, Blk
13
7518555
Bolt-m8x1.25x20, Hxflg, Tap/r-od
14
1019375-329
Weld-dash, Blk
15
5257304-329
Brkt-din Mnt, Blk
16
1019812-329
Weld-seat Base, Front, Mp, Blk
17
5258097-329
Brkt-seat Support, Frt, Mp, Blk
18
7518934
Scr-m10x1.5x25-8.8 Hfs Zod
19
7519650
Scr-txth-m6x1.0x25 Rie
20
1019777-329
Weld-seat Base, Rear, Blk
21
7518474
Bolt-m10x1.5x55, Hx Hd Flg
22
5257305-329
Brkt-box Strap, Blk
23
5258699-329
Brkt-box Support Rear, Blk
24
1019529-458
Weld-support, Rear, Blk
25
5415043
Grommet-silicone, Psa
