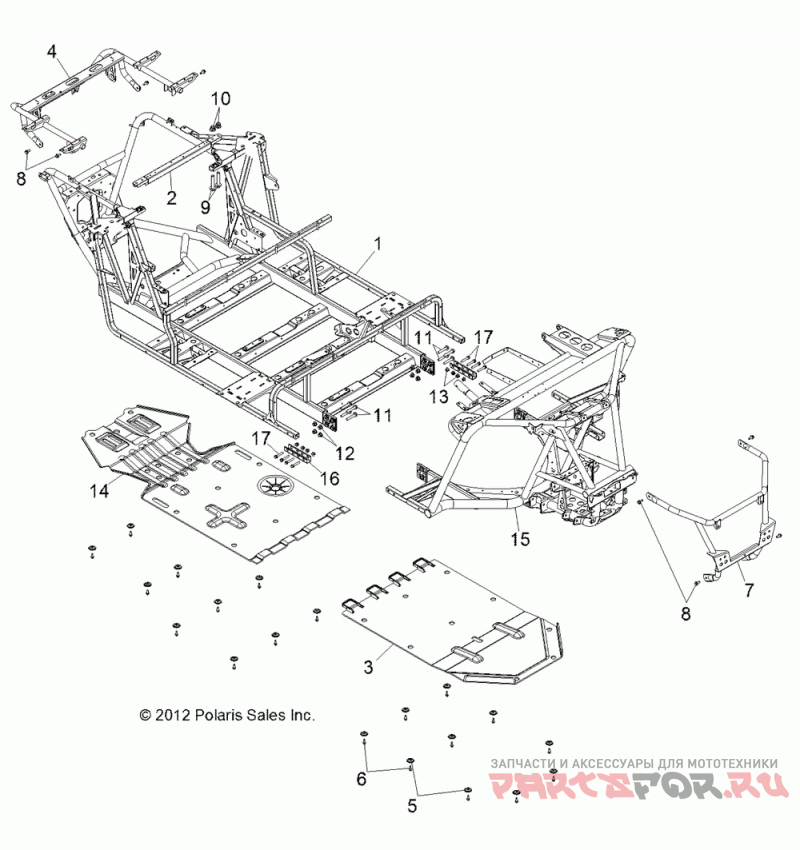

Chassis, main frame and skid plate

Polaris RZR R13XT9EAL RZR 4 XP JAGGED X

Polaris RZR
#oem кодцена
1
1018109-458
Weld-mainframe, Rear, M Blk
2
1018959-329
Weld-brace, Bolt In, Rear, Blk
3
5438909-070
Plate-skid, Front,plastic,blk
4
1017473-458
Weld-bumper Support, Rear, M Blk
5
7556065
Washer Skid Plate
6
7518513
Болт m6x1.0x15
7
1017471-458
Weld-bumper Support, Frt, M Blk
8
7518555
Bolt-m8x1.25x20, Hxflg, Tap/r-od
9
7519285
Scr-hxfl-m10x1.25x55 10.9 Zod
10
7547333
Гайка m10x1.25
11
7518474
Bolt-m10x1.5x55, Hx Hd Flg
12
7547313
Nut-m10x1.5,hxflg, Nylon Ins
13
7547317
Nut-m8x1.25, Hxflg, Nylon Ins
14
5438911-070
Plate-skid, Rear, Plastic, Blk
15
1018110-458
Weld-front Frame, Rzr Xp4, M Blk
16
5253873-458
Brkt-cplr, Frame Ext, Side, M Blk
17
7516732
Screw(10) (10 Per Pack)
