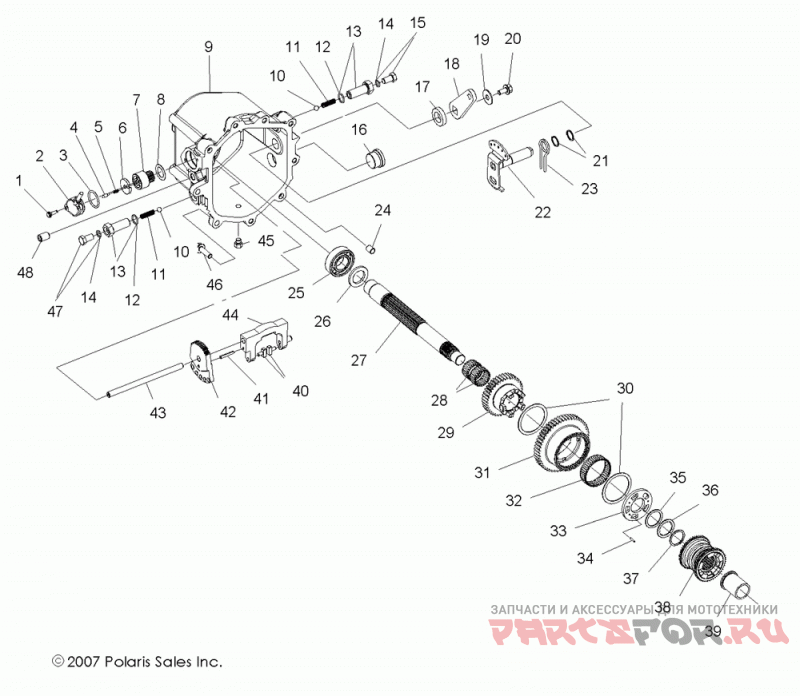

Gearcase, main, internal components 2

Polaris RZR R08VH76AD/AG RZR 800 EFI

Polaris RZR
#oem кодцена
1
3234525
Scr-#10-24x.615, Fl(026hm111-1)
2
3234524
Asm-sensor(026ls103x) [incl. 3-5]
6
3234523
Spacer(026hs118)
7
3234522
Sensor-drum Gear(026gs100)
8
3234521
Washer(3652)
9
3234497
Asm-cover, Shift Hsg(026kh108x) [incl. 17]
10
3234520
Ball-gearcase(5947)
11
3234480
Spring-comp, Gearcase
13
3234481
Asm-sleeve, Detent [incl. 12]
15
3234483
Asm-screw, Hex, (026ky100x) [incl. 14]
16
5133736
Plug-fill/check
17
3234493
Seal-oil(7088)
18
3234492
Lever-shift Cable(026sv106)
19
3234491
Washer(3760)
20
3234490
Scr-5/16-18x.620(41302)
21
3234494
Ring-retaining(7063)
22
3234495
Asm-shifter(026kt100x) [incl. 23]
24
3234503
Bushing-dowel(026hp105)
25
3234502
Bearing-ball, 6205(585965)
26
3234510
Washer-thrust(026hs110)
27
3234573
Asm-clutch Shaft(026kw100) [incl. 35-37]
28
3234532
Bearing-needle(012hd152)
29
3234533
Gear-clutch, High, 38t
30
3234534
Washer-thrust(026hs114)
31
3235275
Gear-clutch, Low, 53t(026gs140x)
32
3234536
Bearing-needle(026hd105)
33
3234537
Plate-retaining, Frwd(026hr112)
34
3234538
Pin-spring(026hp108)
38
3234539
Asm-shift Collar(026gs120x)
39
3234540
Spacer-park/reverse(026hs115)
40
3234488
Blade-clutch Yoke(026sv114)
41
3234487
Pin-spring(500596-15)
42
2879599
K-clutch Yoke
43
3234914
Pin-pivot(026hp111)
44
2879599
K-clutch Yoke
45
5133731
Заглушка
46
7518172
Bolt-hex, Flanged, 026hm103
47
3234482
Asm-screw, Hex, (026ky101x) [incl. 14]
48
3234484
Screw-set(026hm106)
