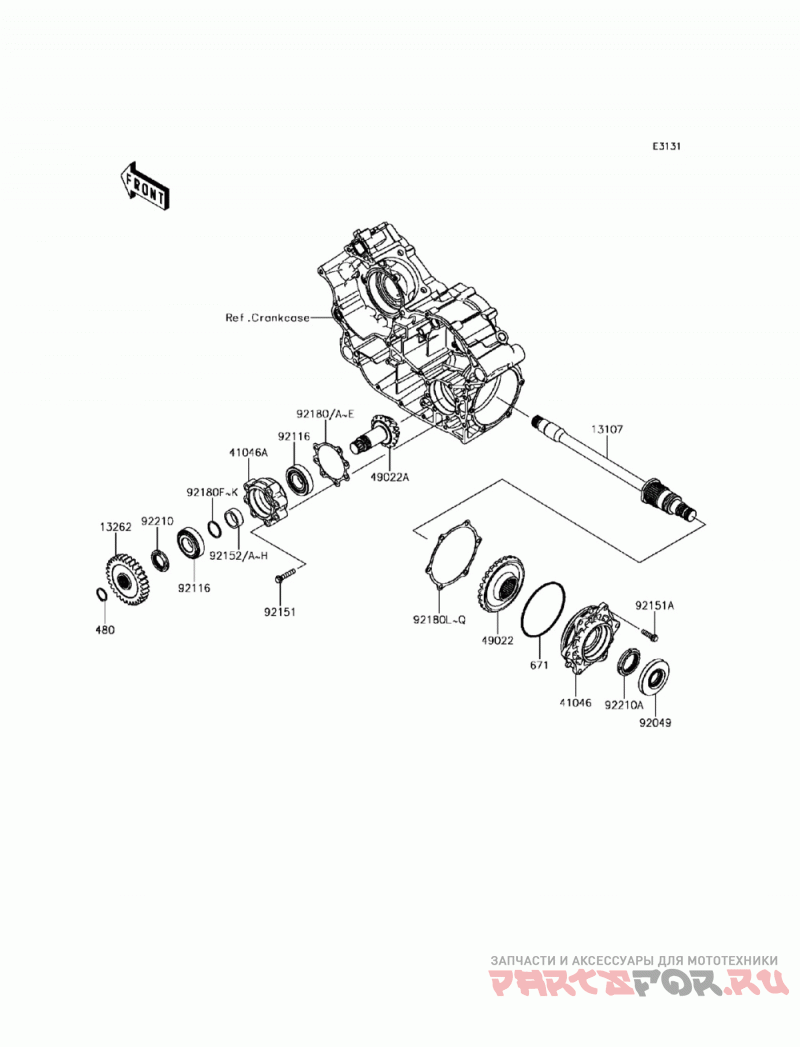

Передняя коническая зубчатая передача

Kawasaki Teryx (KRF800-FHF)

Kawasaki
#oem кодцена
480
480J2400
Circlip 24mm
13107
13107-0766
Shaft, Output
13262
13262-1142
Gear, Output, 30t
41046
41046-0026
Housing-bearing, Drive
41046A
41046-0572
Housing-bearing, Drive
49022
49022-0561
Gear-bevel, Driven, 27t
49022A
49022-0599
Gear-bevel, Pinion, 14t
92049
92049-0712
Сальник
92116
92116-0568
Bearing-roller, Hr3020
92151
92151-1621
Bolt, 8x40
92151A
92151-1688
Болт
92152
92152-0947
Collar, 30.2x37x13.1
92152A
92152-0948
Collar, 30.2x37x13.2
92152B
92152-0949
Collar, 30.2x37x13.3
92152C
92152-0950
Collar, 30.2x37x13.4
92152D
92152-0951
Collar, 30.2x37x13.5
92152E
92152-0952
Collar, 30.2x37x13.6
92152F
92152-0953
Collar, 30.2x37x13.7
92152G
92152-0954
Collar, 30.2x37x13.8
92152H
92152-0955
Collar, 30.2x37x13.9
92180
92180-0702
Shim, Drive, T=0.15
92180A
92180-0703
Shim, Drive, T=0.20
92180B
92180-0704
Shim, Drive, T=0.50
92180C
92180-0705
Shim, Drive, T=0.80
92180D
92180-0706
Shim, Drive, T=1.0
92180E
92180-0707
Shim, Drive, T=1.2
92180F
92180-0708
Shim, Drive, T=1.70
92180G
92180-0709
Shim, Drive, T=1.72
92180H
92180-0710
Shim, Drive, T=1.74
92180I
92180-0711
Shim, Drive, T=1.76
92180J
92180-0712
Shim, Drive, T=1.78
92180K
92180-0713
Shim, Drive, T=1.80
92180L
92180-0714
Shim, Driven, T=0.15
92180M
92180-0715
Shim, Driven, T=0.20
92180N
92180-0716
Shim, Driven, T=0.50
92180O
92180-0717
Shim, Driven, T=0.80
92180P
92180-0718
Shim, Driven, T=1.0
92180Q
92180-0719
Shim, Driven, T=1.2
92210
92210-0762
Nut, 30mm
92210A
92210-0795
Nut, 40mm
671
671D25115
O Ring, 115mm
