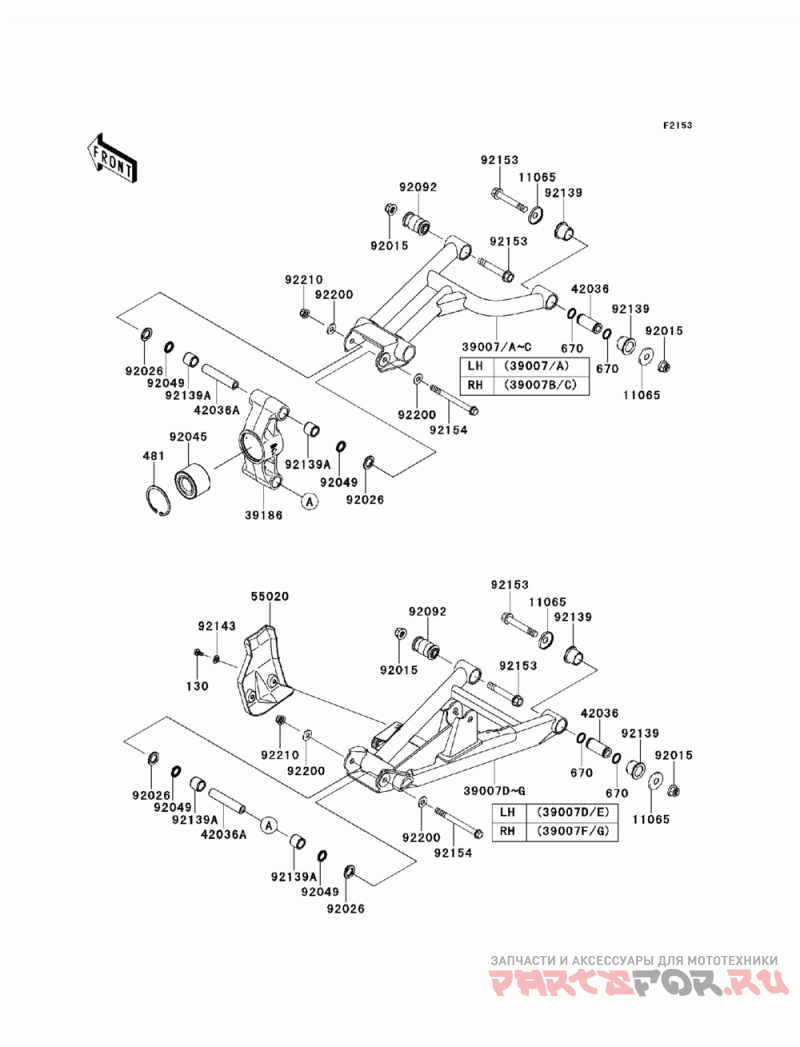

Задняя подвеска

Kawasaki Teryx4 LE (KRT800-CEF)

Kawasaki
#oem кодцена
130
130BA0612
Bolt-flanged, 6x12
481
481J6200
Circlip 62mm
670
670B2018
"0" Ring, 18mm
11065
11065-0253
Крышка
39007
39007-0345-42Q
Arm-susp, Rr, Upp, Lh, C.
39186
39186-0316
Knuckle, Rr
42036
42036-0062
Гильца
55020
55020-0805
Guard, Rear Arm
92015
92015-1433
Гайка 12mm
92026
92026-0746
Spacer, 17x28.6x3
92045
92045-0739
Bearing-ball, 30x62x40
92049
92049-0726
Seal-oil, 17x24x3
92092
92092-0555
Резиновые втулки
92139
92139-0231
Втулка
92143
92143-1087
Манжета
92153
92153-1733
Bolt, Flanged, 12x76.5
92154
92154-0743
Bolt, Flanged, 10x117
92200
92200-2009
Washer 10.3x23x1.6
92210
92210-1080
Гайка
39007A
39007-0345-42R
Arm-susp, Rr, Upp, Lh, C.
39007B
39007-0346-42Q
Arm-susp, Rr, Upp, Rh, C.
39007C
39007-0346-42R
Arm-susp, Rr, Upp, Rh, C.
39007D
39007-0347-42Q
Arm-susp, Rr, Lwr, Lh, C.
39007E
39007-0347-42R
Arm-susp, Rr, Lwr, Lh, C.
39007F
39007-0348-42Q
Arm-susp, Rr, Lwr, Rh, C.
39007G
39007-0348-42R
Arm-susp, Rr, Lwr, Rh, C.
42036A
42036-0710
Sleeve, 10x17x88
92139A
92139-0736
Bushing, 17x24x21.5
