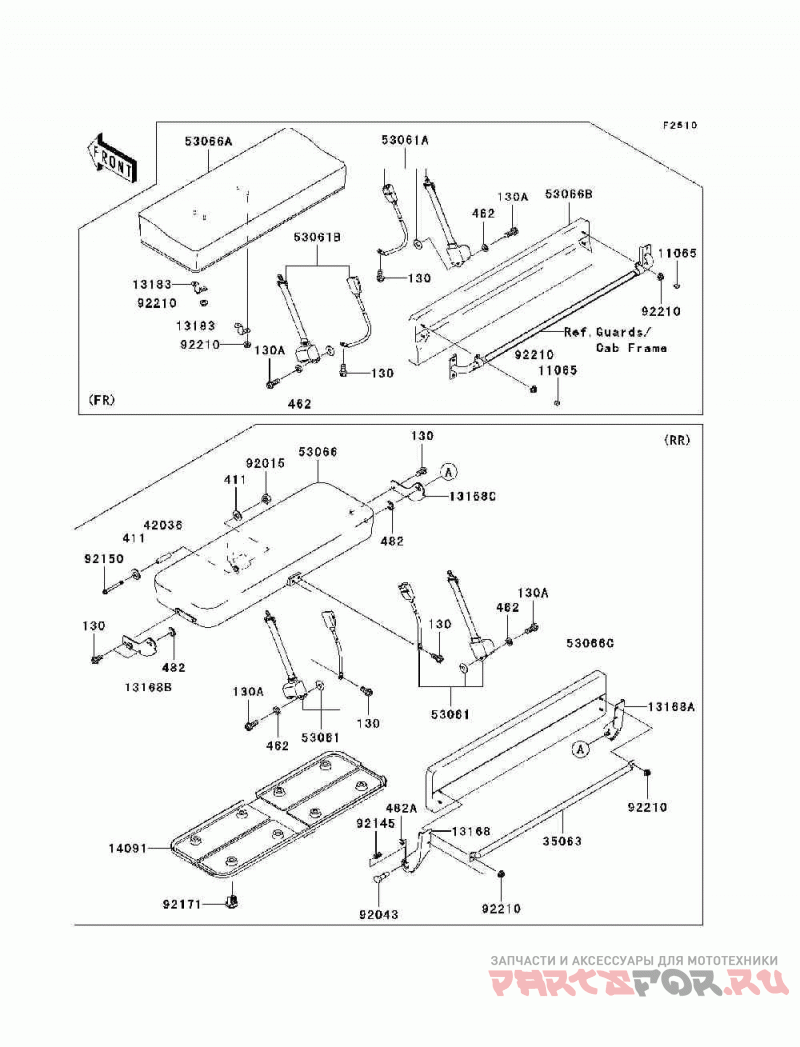

Сидение

Kawasaki Mule 4010 Trans4x4 Hardwoods Green HD (KAF620-S9F)

Kawasaki
#oem кодцена
130
130BB1020
Болт
130A
130BB1025
Bolt-flanged, 10x25
411
411AB1200
Washer-plain
462
462DB1000
Washer-spring, 10mm
482
482EA0200
Circlip-type-e
482A
482EA8000
Circlip-type-e
11065
11065-7504
Крышка
13168
13168-7502
Lever, Seat, Top, Lh
13168A
13168-7503
Lever, Seat, Top, Rh
13168B
13168-7504
Lever, Seat, Lwr, Lh
13168C
13168-7505
Lever, Seat, Lwr, Rh
13183
13183-1400
Посадочное кольцо
14091
14091-1740
Покрытие
35063
35063-7510
Stay, Rear Back
42036
42036-7501
Sleeve, 12.1x20x85
53061
53061-7506
Belt-seat, Rr
53061A
53061-7507
Belt-seat, Fr, Rh
53061B
53061-7508
Belt-seat, Fr, Lh
53066
53066-0226-MB
Seat-assy, Rr, Lwr, S.m.
53066A
53066-7502-MB
Seat-assy, Fr, Lwr, S.m.
53066B
53066-7503-MB
Seat-assy, Back, S.m.br
53066C
53066-7507-MB
Seat-assy, Rr, Back, S.m
92015
92015-1190
Nut, Lock, 12mm, Black
92043
92043-7503
Штифт
92145
92145-7507
Пружина
92150
92150-1895
Bolt, Flanged, 12x117
92171
92171-7509
Зажим
92210
92210-0005
Nut, Flanged, Lock, 8mm
