02- engine - air intake для мотовездеходов Can-Am (Bombardier) 007 - Defender PRO HD10 - DPS_XT

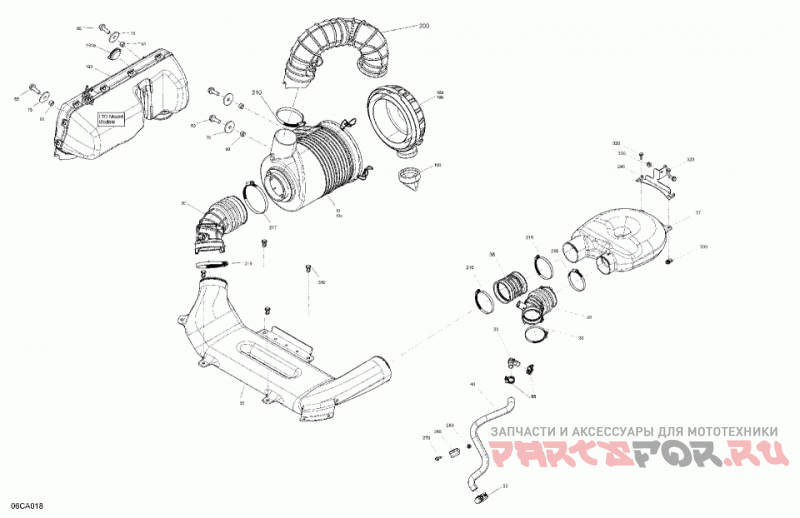

02- engine - air intake

Can-Am (Bombardier) 007 - Defender PRO HD10 - DPS_XT - North America

oem код

название

цена

707800714

Air Intake Silencer. Included 10 to 10b.

100

715003114

Duck Bill Valve.

10b

715900514

O-Ring.

10c

715900394

Air Filter. Not shown.

190

707800849

Resonator. Included 190 to 190d.

190a

293000125

Plug.

293650091

Norma Clamp.

200

707800752

Air Inlet Tube.

210

293650091

Norma Clamp.

216

293650096

Clamp Norma.

217

293650096

Clamp Norma.

293710155

Elbow Fitting 90.

265

709200036

Hose Anchor.

270

207662544

Hex. Flanged Screw M6 X 25.

280

233061414

Hex. Flanged Nut M6.

290

707800940

Support.

707800879

Front Intake Duct.

300

250000957

Extruded Panel Nut M6.

310

293150230

Tuflok Plastic Rivet.

320

207562034

Hex. Flanged Screw M6 X 20, Scotch Grip.

330

233281414

Hex. Flanged Elastic Nut M8.

340

207682044

Hex. Flanged Screw M8 X 20.

Central Intake Duct.

Rear Intake Duct.

Air Inlet Box.

Rear Main Ïntake Duct.

707800890

Crankcase Hose Formed.

293650173

Tridon Gear Clamp.

293650173

Tridon Gear Clamp.

207682534

Hex. Flanged Screw M8 X 25.

207682534

Hex. Flanged Screw M8 X 25.

Flat Washer M8.

Flat Washer M8.

Bushing.

Bushing.
