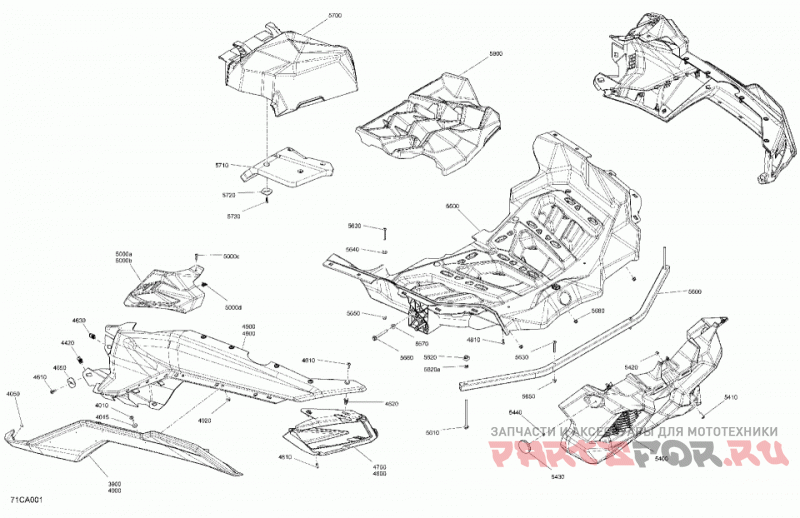

07- body - rear section

Can-Am (Bombardier) 006 - Maverick Turbo RR - XRC - International

Can-Am (Bombardier)
#oem кодцена
3900
705015348
Can-Am Red, LH Rear Mud Guard.
4000
705015349
Can-Am Red, RH Rear Mud Guard.
4010
250000712
Torx Screw M6 X 20.
4015
234062670
Flat Washer, Stainless.
4020
233261494
Hex. Elastic Flanged Nut M6.
4050
250000720
Torx Screw K50 X 16.
4420
250000957
Extruded Panel Nut M6.
4500
705015333
Chalk, LH Rear Fender.
4600
705015334
Chalk, RH Rear Fender.
4610
250000722
Torx Screw M6 X 20.
4620
705010872
Insert.
4630
250000957
Extruded Panel Nut M6.
4650
705003841
Support Plate.
4700
705010686
LH Rear Lateral Cover.
4800
705010687
RH Rear Lateral Cover.
4810
250000720
Torx Screw K50 X 16.
5000a
705010335
LH Rear Cage Trim.
5000b
705010336
RH Rear Cage Trim.
5000c
250000722
Torx Screw M6 X 20.
5000d
293650268
Clip.
5400
705010001
Rear Facia.
5410
250000722
Torx Screw M6 X 20.
5420
250000957
Extruded Panel Nut M6.
5430
705011221
Red Reflector.
5440
233251494
Elastic Flanged Nut M5.
5600
705012589
Tube.
5610
230683034
Hex. Flanged Screw M8 X 130.
5620
269501943
Elastic Nut Housing M8. Includes 5620 to 5620a.
5620a
232581200
Hex. Elastic Nut M8, Brass.
5630
250000868
Torx Truss M6 X 50.
5640
234062670
Flat Washer, Stainless.
5650
233261494
Hex. Elastic Flanged Nut M6.
5660
207687044
Hex. Flanged Screw M8 X 70.
5670
233081416
Hex. Flanged Nut M8.
5680
250000957
Extruded Panel Nut M6.
5700
705012700
Air Inlet Cover.
5710
705011293
Foam Air Intake Cover.
5720
705003841
Support Plate.
5730
250000760
Torx Screw Truss Head K50X20 T20.
5800
705013757
Rear Cover.
