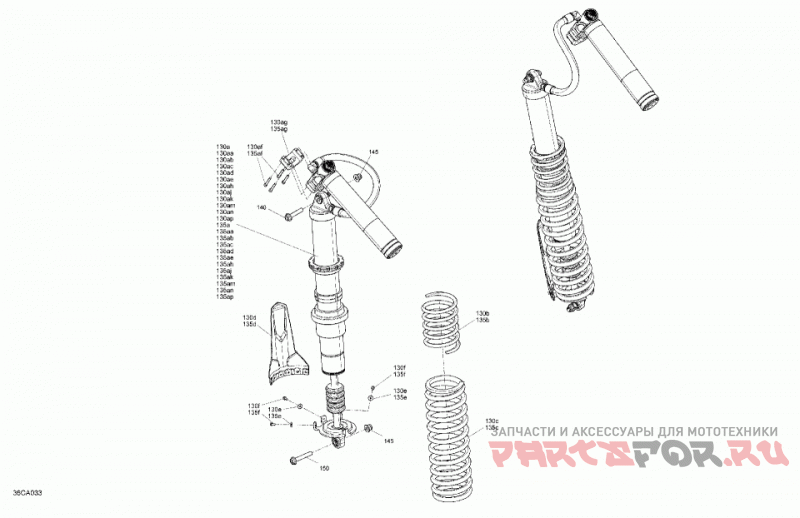

05- suspension - rear shocks

Can-Am (Bombardier) 002 - Maverick Turbo RR - XRC - CE

Can-Am (Bombardier)
#oem кодцена
130a
706004084
Rear Shock Absorber.
130aa
715900337
Spherical Bearing.
130ab
715900482
Bearing.
130ac
715900338
O-Ring Bushing.
130ad
715900480
Circlip.
130ae
715900481
Reducer.
130af
715900521
Screw M6 X 35.
130ag
715900522
Réservoir Clamp.
130ah
715900605
Preload Ring.
130aj
715900606
Preload Ring Backup.
130ak
715900607
Spring Adapter.
130am
715900608
Crossover ring.
130an
715900597
Spring Retainer.
130ap
715900593
Spring Coupler.
130b
706004168
Chalk, Compression Spring.
130c
706004169
Chalk, Compression Spring.
130d
706202215
Protector.
130e
250200025
Washer M5.
130f
210251150
Hex. Flanged Screw M5 X 11.
135a
706004084
Rear Shock Absorber.
135aa
715900337
Spherical Bearing.
135ab
715900482
Bearing.
135ac
715900338
O-Ring Bushing.
135ad
715900480
Circlip.
135ae
715900481
Reducer.
135af
715900521
Screw M6 X 35.
135ag
715900522
Réservoir Clamp.
135ah
715900605
Preload Ring.
135aj
715900606
Preload Ring Backup.
135ak
715900607
Spring Adapter.
135am
715900608
Crossover ring.
135an
715900597
Spring Retainer.
135ap
715900593
Spring Coupler.
135b
706004168
Chalk, Compression Spring.
135c
706004169
Chalk, Compression Spring.
135d
706202215
Protector.
135e
250200025
Washer M5.
135f
210251150
Hex. Flanged Screw M5 X 11.
140
250000857
Screw Flange M12 X 60.
145
233221466
Elastic Flange Nut M12.
150
250000858
Hexagonal Flanged Screw M12 X 70.
