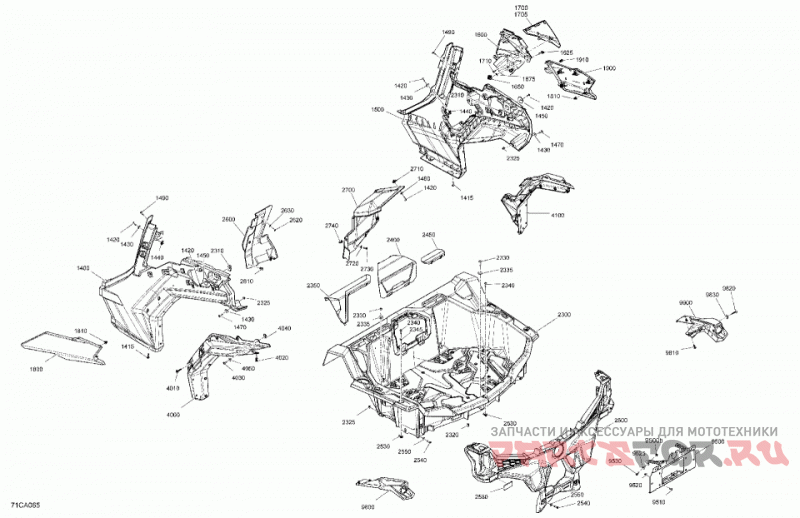

07- body - rear section

Can-Am (Bombardier) 001 - Maverick Trail 800 - BASE_DPS - T Regulation

Can-Am (Bombardier)
#oem кодцена
1400
705011335
LH Rear Pannel.
1415
207662554
Hex. Flanged Screw M6 X 25.
1420
250000722
Torx Screw M6 X 20.
1430
250200162
Flat Washer M6.6 X 22.
1440
250000957
Extruded Panel Nut M6.
1450
705003841
Support Plate.
1470
250000807
Torx Truss Screw M6 X 25.
1480
234062670
Flat Washer, Stainless.
1490
414644300
Black, Dart.
1500
705011336
RH Rear Pannel.
1600
705011338
Air Filter Acces Door.
1625
708400278
Quarter Turn.
1650
708400285
Clip.
1675
708400286
Washer.
1700
705015460
Gulfstream Blue, Acces Panel Trim. Model Gulfstream Blue.
1700
705015454
Can-Am Red, Acces Panel Trim. Model Red.
1705
705013355
Gulfstream Blue, Acess Panel Trim. Model Gulfstream Blue.
1705
705012623
Red, Acces Panel Trim. Model Red.
1710
250000720
Torx Screw K50 X 16.
1800
705015452
Can-Am Red, LH Open Carrier Trim. Model Red.
1800
705015459
Gulfstream Blue, LH Open Carrier Trim. Model Gulfstream Blue.
1810
517306478
Clip.
1900
705015453
Can-Am Red, RH Open Carrier Trim. Model Red.
1900
705015461
Gulfstream Blue, RH Open Carrier Trim. Model Gulfstream Blue.
1910
293150230
Tuflok Plastic Rivet.
2300
705011337
Rear Box.
2310
250100224
Panel Nut M6 X 1.0.
2320
250100207
Hex. Coupling Nut M6.
2325
233261466
Hex. Flanged Elastic Nut M6.
2330
250000745
Hex Torx Truss M8 X30.
2335
234082670
Flat Washer, Stainless.
2340
250000807
Torx Truss Screw M6 X 25.
2345
234062670
Flat Washer, Stainless.
2350
705011339
Cvt Air Inlet Cover.
2450
705011340
Air Intake Cover.
2500
705011426
Rear Fascia.
2530
250000957
Extruded Panel Nut M6.
2540
250000807
Torx Truss Screw M6 X 25.
2550
234062670
Flat Washer, Stainless.
2580
520001820
Red Reflector.
2600
705015886
LH Rear Wheel Arch Protector.
2610
293150230
Tuflok Plastic Rivet.
2620
250000720
Torx Screw K50 X 16.
2630
250200025
Washer M5.
2700
705016135
RH Rear Wheel Arch Protector.
2710
250000957
Extruded Panel Nut M6.
2720
234062670
Flat Washer, Stainless.
2730
250000722
Torx Screw M6 X 20.
2740
293150230
Tuflok Plastic Rivet.
4000
705012097
LH Rear Mud Guard.
4010
250000840
Torx-Screw Truss Head PT.K50 X 40.
4020
293150230
Tuflok Plastic Rivet.
4030
250000722
Torx Screw M6 X 20.
4040
250000957
Extruded Panel Nut M6.
4050
234062670
Flat Washer, Stainless.
4100
705012098
RH Rear 60
9500b
250100199
Insert Half Hex Body M6 x 1.0.
9510
250000721
Torx Truss Screw M6 X 16.
9520
233261466
Hex. Flanged Elastic Nut M6.
9525
234062670
Flat Washer, Stainless.
9530
207661654
Hex. Flanged Screw M6 X 16.
9800
705012799
LH Rear Flasher Support Model T.
9810
293150230
Tuflok Plastic Rivet.
9820
250000840
Torx-Screw Truss Head PT.K50 X 40.
9830
234082670
Flat Washer, Stainless.
9900
705012800
RH Rear Flasher Support Model T.
