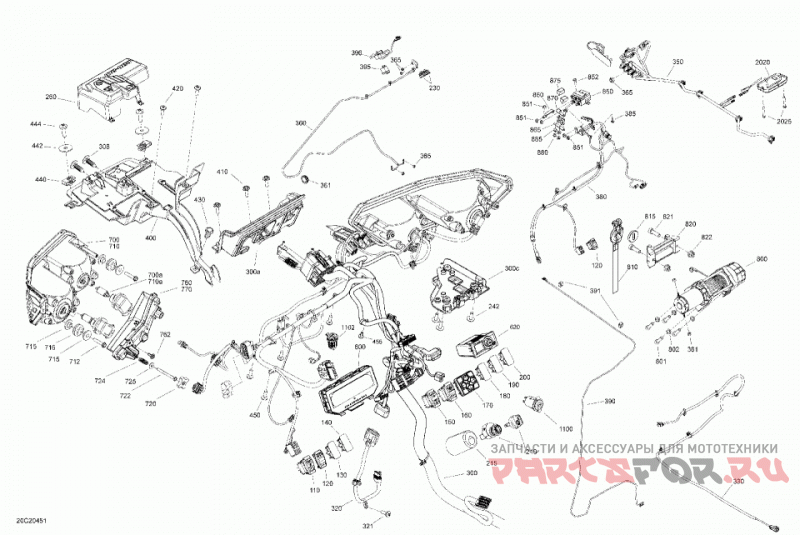

10- electric - system - front section

Can-Am (Bombardier) 013 - Defender MAX HD10 - Limited - North America

Can-Am (Bombardier)
#oem кодцена
110
710004492
Light Switch.
1100
710005374
12V Power Outlet.
1102
219400510
USB Outlet.
120
710002052
Winch Switch.
130
710001999
Plug Carling.
140
710001999
Plug Carling.
150
710005489
Switch 2X4.
160
710005470
Differential Lock Switch.
170
710006650
Multifonction Switch.
180
710001999
Plug Carling.
190
710001999
Plug Carling.
200
710001999
Plug Carling.
2020
715002455
Dome Light.
2025
241142560
Hex. Flanged Screw K40 X 25.
210
710004198
Ignition Switch With Keys.
215
710005739
Key Switch Protector.
230
710001999
Plug Carling.
242
250000959
Screw PT Type K-50 X 16.
260
710006707
Junction Block Cover.
300
710007149
Main Wiring Harness. Included 300 to 300c.
300a
710006640
Fusebox Support.
300c
710006706
Connector Support.
308
293730006
Black, Dart.
320
710006837
Throttle Pedal Harness.
321
250000720
Torx Screw K50 X 16.
330
710007042
Safety Belt Wiring Harness.
350
710004462
Window/Wiper Harness.
360
710007038
Roof Wiring Harness.
361
710002743
Boot.
365
232561200
Elastic Stop Nut M6, Brass.
380
710006653
Winch Wiring Harness.
381
232561200
Elastic Stop Nut M6, Brass.
385
250000959
Screw PT Type K-50 X 16.
390
710004661
Wiper Harness.
391
414227300
Clip.
395
710004941
Wiper Switch.
396
710004942
Wiper Harness.
400
710006649
Wiring Harness Support.
410
250000959
Screw PT Type K-50 X 16.
420
250000720
Torx Screw K50 X 16.
430
293150230
Tuflok Plastic Rivet.
440
250000957
Extruded Panel Nut M6.
442
250200029
Washer M6.
444
250000712
Torx Screw M6 X 20.
450
250000720
Torx Screw K50 X 16.
455
250000720
Torx Screw K50 X 16.
600
710006854
Full Size Multifunction Gauge.
620
710006803
A/C Unit Control.
700
710006976
LH Beam. Included 700 to 700a.
700a
715900653
Halogen Bulb H8 12V 35W Blue.
710
710006977
RH Beam. Included 710 to 710a.
710a
715900653
Halogen Bulb H8 12V 35W Blue.
712
241152540
Hex. Flanged Screw K50 X 2.24 X 25.
715
710004749
Shoulder Bushing.
716
709000582
Grommet.
720
572106600
Handle.
722
250000718
Hex. Screw K40 X 45.
724
517168600
Spring. Included 724 to 724a.
725
234042600
Flat Washer 4 mm, Stainless.
760
710006374
LH Auxiliary LED Headlight.
762
250000959
Screw PT Type K-50 X 16.
770
710006375
RH Auxiliary LED Headlight.
800
710006993
Electric Winch.
801
205083044
Socket Head Screw M8 X 30.
802
234181401
Lock Washer 8 mm.
810
705014949
Winch Hook.
815
710007028
Stopper.
820
710007082
Fairlead Roller.
821
205003044
Socket Screw M10 x 30.
822
233201436
Flanged Elastic Nut M10.
850
710006991
Solenoid.
851
232561200
Elastic Stop Nut M6, Brass.
852
250000720
Torx Screw K50 X 16.
860
710004772
Power Bar.
865
710006401
Copper Busbar.
870
710004873
Power Bar.
875
710007039
Circuit Breaker 50 Amp.
880
250100071
Hex. Flanged Nut M5.
885
234161601
Lock Washer Helical M6.
