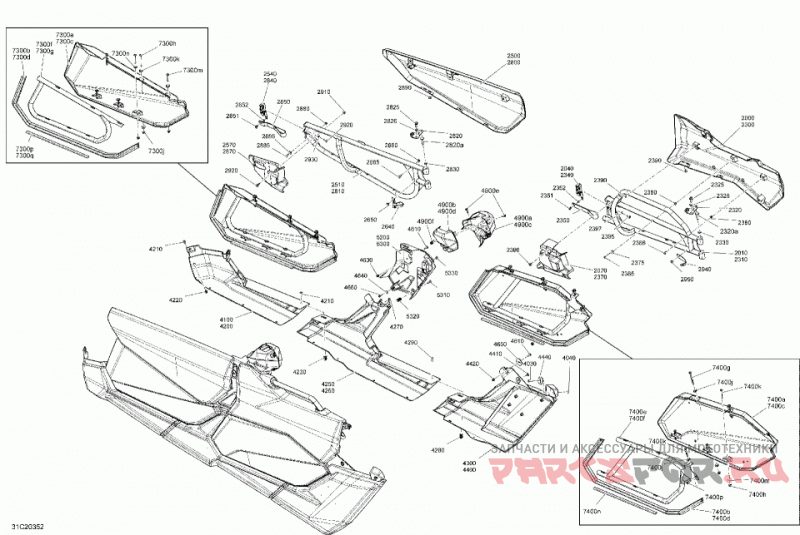

09- body - door section - xmr - green

Can-Am (Bombardier) 009 - Maverick MAX Turbo RR - XMR - North America

Can-Am (Bombardier)
#oem кодцена
2000
705014141
Mineral Satin Gray, LH Rear Door Panel.
2010
705014145
Manta Green, LH Rear Door.
2040
705013095
LH Latch.
2070
705013859
LH Latch Cover.
2300
705014142
Mineral Satin Gray, RH Rear Door Panel.
2310
705014146
Manta Green, RH Rear Door.
2320
705011187
Door Support. Includes 2320 to 2320a.
2320a
250000913
Weld Pin 8mm X 40mm.
2325
207582054
Washer Head Hexa. Screw M8 X 20.
2326
234081430
Flat Washer M8.
2330
234081100
Flat Washer 8 mm, Nylon.
2340
705013096
RH Latch.
2350
293850135
Belt.
2351
293150103
Pop Rivet 3/16
2352
293900104
Bushing.
2370
705013860
RH Latch Cover.
2375
234062670
Flat Washer, Stainless.
2380
250000957
Extruded Panel Nut M6.
2385
250000748
Torx Screw M6 X 45.
2386
250000721
Torx Truss Screw M6 X 16.
2390
293150103
Pop Rivet 3/16
2395
250000721
Torx Truss Screw M6 X 16.
2396
293150103
Pop Rivet 3/16
2397
224061121
Flat Washer.
2500
705014083
Mineral Satin Gray, LH Front Door Panel.
2510
705014087
Manta Green, LH Front Door.
2540
705013095
LH Latch.
2570
705013535
LH Latch Cover.
2640
293850129
Door Belt.
2650
293150103
Pop Rivet 3/16
2800
705014084
Mineral Satin Gray, RH Front Door Panel.
2810
705014088
Manta Green, RH Front Door.
2820
705011187
Door Support. Includes 2820 to 2820a.
2820a
250000913
Weld Pin 8mm X 40mm.
2825
207582054
Washer Head Hexa. Screw M8 X 20.
2826
234081430
Flat Washer M8.
2830
234081100
Flat Washer 8 mm, Nylon.
2840
705013096
RH Latch.
2850
293850135
Belt.
2851
293150103
Pop Rivet 3/16
2852
293900104
Bushing.
2870
705013536
RH Latch Cover.
2880
250000957
Extruded Panel Nut M6.
2885
250000721
Torx Truss Screw M6 X 16.
2886
234062670
Flat Washer, Stainless.
2890
293150103
Pop Rivet 3/16
2910
250000957
Extruded Panel Nut M6.
2920
250000722
Torx Screw M6 X 20.
2930
224061121
Flat Washer.
2940
293850129
Door Belt.
2950
293150103
Pop Rivet 3/16
4030
250000807
Torx Truss Screw M6 X 25.
4040
250000957
Extruded Panel Nut M6.
4100
705009513
LH Central Lateral Panel.
4200
705009514
RH Central Lateral Panel.
4210
250000722
Torx Screw M6 X 20.
4220
250000957
Extruded Panel Nut M6.
4230
705010872
Insert.
4250
705011368
LH Rear Central Lateral Panel.
4260
705011369
RH Rear Central Lateral Panel.
4270
293150108
Pop Rivet 3/16”.
4280
705010872
Insert.
4290
250000722
Torx Screw M6 X 20.
4300
705010676
LH Rear Lateral Panel.
4400
705010677
RH Rear Lateral Panel.
4410
293150104
Pop Rivet 3/16
4420
250000957
Extruded Panel Nut M6.
4440
705003841
Support Plate.
4610
250000722
Torx Screw M6 X 20.
4630
250000957
Extruded Panel Nut M6.
4640
234062670
Flat Washer, Stainless.
4650
705003841
Support Plate.
4660
250000720
Torx Screw K50 X 16.
4900a
705014859
LH Central Cage Trim.
4900b
705014860
LH Central Cage Trim.
4900c
705014861
RH Central Cage Trim.
4900d
705014862
RH Central Cage Trim.
4900e
250000722
Torx Screw M6 X 20.
4900f
250000957
Extruded Panel Nut M6.
5200
705014123
Mineral Gray, LH Central Latch Trim.
5300
705014124
Mineral Gray, RH Central Latch Trim.
5310
250000722
Torx Screw M6 X 20.
5320
705010872
Insert.
5330
293150103
Pop Rivet 3/16
7300a
705010271
LH Door Panels.
7300b
705012018
Door Seal.
7300c
705010272
RH Door Panels.
7300d
705012018
Door Seal.
7300f
705012750
Black, LH Door Frame.
7300g
705012751
Black, RH Door Frame. Includes 7300h to 7300r.
7300h
250000902
Torx-Truss M/S M6 X 80.
7300j
233261494
Hex. Elastic Flanged Nut M6.
7300k
705202223
Offset Washer.
7300m
250000749
Torx Truss Screw M6 X 50.
7300n
234062670
Flat Washer, Stainless.
7300p
293200003
Neoprene Seal (1PAC=3M).
7300q
293200003
Neoprene Seal (1PAC=3M).
7400b
705012018
Door Seal.
7400d
705012018
Door Seal.
7400g
250000902
Torx-Truss M/S M6 X 80.
7400h
233261494
Hex. Elastic Flanged Nut M6.
7400j
705202223
Offset Washer.
7400k
250000749
Torx Truss Screw M6 X 50.
7400m
234062670
Flat Washer, Stainless.
7400n
293200003
Neoprene Seal (1PAC=3M).
7400p
250000807
Torx Truss Screw M6 X 25.
