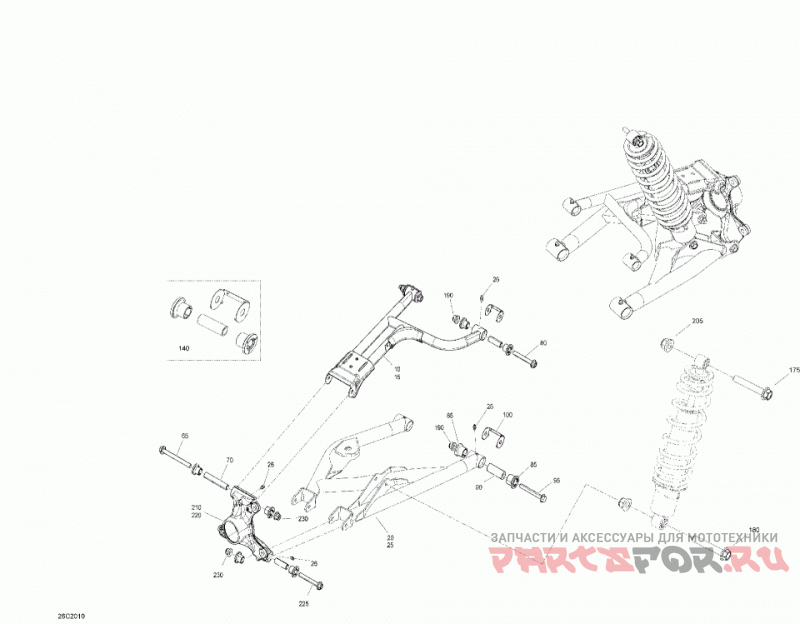

08- suspension, rear

Can-Am (Bombardier) 003 - Traxter HD10 - XMR - International

Can-Am (Bombardier)
#oem кодцена
10
706003867
Manta Green, LH Upper Suspension Arm.
10
706002773
LH Rear Upper Suspension Arm.
100
706201660
Wear Plate.
140
703500875
Bushing Kit.
15
706003868
Manta Green, RH Upper Suspension Arm.
15
706002774
RH Rear Upper Suspension Arm.
175
207606046
Hex. Flanged Screw M10 X 60.
180
207606046
Hex. Flanged Screw M10 X 60.
190
233201436
Hex. Flanged Elastic Nut M10.
20
706003870
Manta Green, LH Lower Suspension Arm.
20
706002775
LH Rear Lower Suspension Arm.
205
233201436
Hex. Flanged Elastic Nut M10.
210
706002809
Rear Left Machined Knuckle.
220
706002811
Rear Right Machined Knuckle.
225
207607046
Hex. Flanged Screw M10 X 70.
230
233201436
Hex. Flanged Elastic Nut M10.
25
706003871
Manta Green, RH Int Suspension Arm.
25
706002776
RH Rear Suspension Lower Arm.
26
408200700
Grease Fitting.
65
230600046
Screw-Hex.Flange DIN.6921.
70
706202197
Upper Bushing.
80
207607046
Hex. Flanged Screw M10 X 70.
85
706201659
Cushion.
90
706201590
Sleeve.
95
207608046
Hex Flanged Screw M10 X 80.
