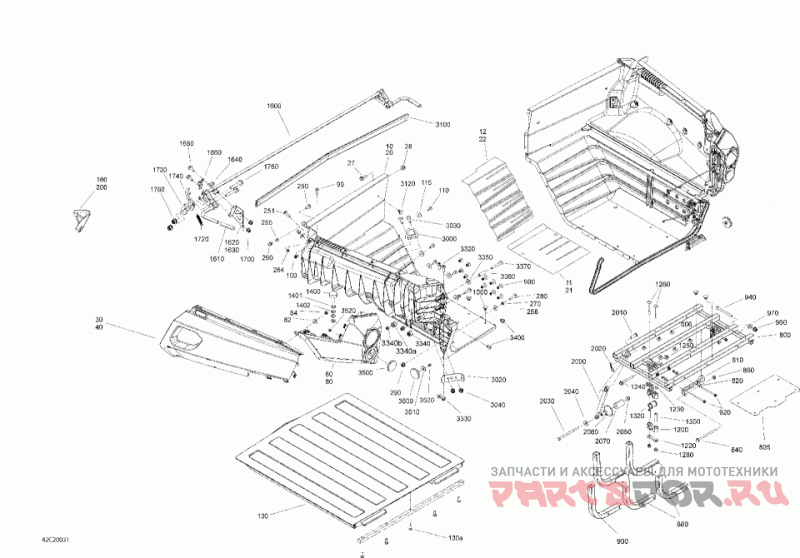

09- rear cargo box - box

Can-Am (Bombardier) 003 - Commander MAX 800R EFI - North America

Can-Am (Bombardier)
#oem кодцена
10
715002361
Left Box Kit.
100
250000958
Panel Nut M5 X 0.8.
1000
293150104
Pop Rivet 3/16
11
708300809
Heat Deflector Sheet.
110
250000720
Torx Screw K50 X 16.
115
234062670
Flat Washer, Stainless.
12
708300811
Heat Deflector Sheet.
1200
506150400
Housing Half.
1220
506150600
Stopper Plate.
1230
708300210
Adjustable Stopper Plate.
1240
207665044
Hex. Flanged Screw M6 X 50.
1250
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
1260
207787044
Carriage Bolt M8 X 70.
1280
233281414
Hex. Flanged Elastic Nut M8.
1300
506150500
Housing Bushing.
130a
250000720
Torx Screw K50 X 16.
1320
708300172
Pivot Bushing.
1400
293720091
Frame Rubber Bumper.
1401
232180600
Hex. Jam Nut M8.
1402
234181401
Lock Washer 8 mm.
1610
708300358
Cap Latch Lever.
1620
708300278
LH Latch Lever Support.
1630
708300351
RH Latch Lever Support.
1640
705500033
Half Ring.
1660
708300392
Clamp Reatiner.
1680
207661644
Hex. Flanged Screw M6 X 16.
1700
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
1720
708300454
Spring.
1730
708300902
Spacer.
1740
708300136
Box Retainer.
1760
250001028
Hex. Flanged Screw M6 X 45.
1780
233281414
Hex. Flanged Elastic Nut M8.
180
708300333
LH Painted Rail Cap.
20
715003387
Right Box Kit.
200
708300334
RH Painted Rail Cap.
2000
708301136
Gaz Shock.
2010
414079100
Pin.
2020
414575600
Hair Pin.
2030
207069044
Hex. Screw M6 X 90.
2040
234062410
Flat Washer 6 mm.
2050
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
2060
708301059
Spacer.
2070
708300470
Spacer.
21
708300810
Heat Deflector Sheet.
22
708300812
Heat Deflector Sheet.
250
250000721
Torx Truss Screw M6 X 16.
251
250000722
Torx Screw M6 X 20.
255
234062670
Flat Washer, Stainless.
260
232361493
Domed Nut M6.
264
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
268
234062670
Flat Washer, Stainless.
27
207662054
Hex. Flanged Screw M6 X 20.
270
708300737
Bushing.
28
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
280
250000758
Torx Screw M6 X 25.
290
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
30
708302337
Squadron Green, LH Rear Fender.
3000
708300183
Retaining Plate.
3020
708300206
Retaining Plate Support.
3030
250000758
Torx Screw M6 X 25.
3040
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
3100
708301633
Front Support.
3120
293150104
Pop Rivet 3/16
3320
250000722
Torx Screw M6 X 20.
3330
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
3340b
232561600
Hex. Elastic Stop Nut M6.
3350
234062670
Flat Washer, Stainless.
3360
708300736
Spacer.
3370
250000748
Torx Screw M6 X 45.
3400
293830005
Rubber Bumper.
3500
705011221
Red Reflector.
3510
234062670
Flat Washer, Stainless.
3520
232551414
Elastic Stop Nut M5.
40
708302338
Squadron Green, RH Rear Fender.
60
708301383
LH Rear Facia.
80
708301384
RH Rear Facia.
800
708300875
Black Box Support.
805
708300780
Heat Deflector.
806
293150103
Pop Rivet 3/16
810
708000884
Rubber Stopper.
82
234081100
Flat Washer 8 mm, Nylon.
820
708300185
Bracket Pivot.
84
732610072
Push Nut.
840
230683034
Hex. Flanged Screw M8 X 130.
860
233281414
Hex. Flanged Elastic Nut M8.
880
708300879
Black Welded Lateral Support.
90
250000724
Torx Screw M5 X 20.
900
708300877
Black Lateral Support.
920
207669584
Hex. Flanged Screw M6 X 95.
940
207066544
Hex. Screw M6 X 65.
960
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
970
234062410
Flat Washer 6 mm.
980
293150100
Pop Rivet 3/16
