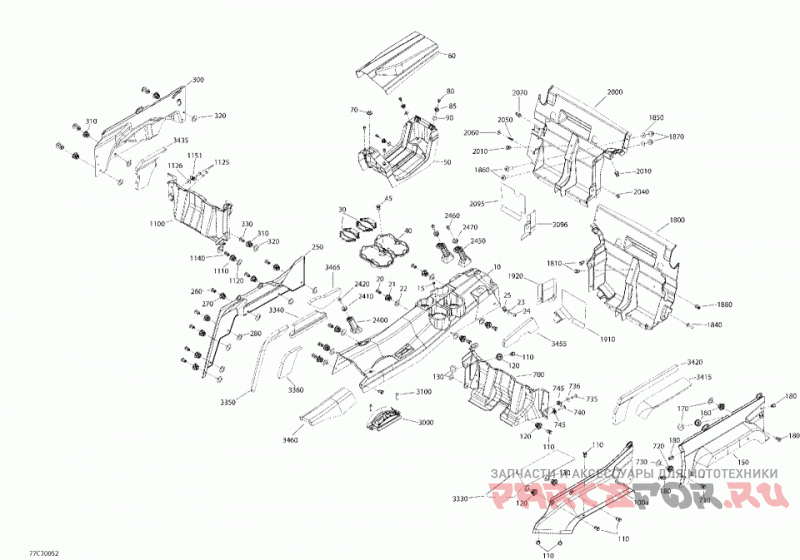

09- cab interior - upper part

Can-Am (Bombardier) 003 - Commander MAX 800R EFI - North America

Can-Am (Bombardier)
#oem кодцена
100a
707900001
LH Side Console.
110
293150230
Tuflok Plastic Rivet.
1100
707900083
Seat Cover.
1110
707900133
Insert.
1120
503189273
Washer.
1125
250000722
Torx Screw M6 X 20.
1126
234062670
Flat Washer, Stainless.
1140
293150230
Tuflok Plastic Rivet.
1151
250000957
Extruded Panel Nut M6.
120
707900133
Insert.
130
503189273
Washer.
15
732610072
Push Nut.
150
707900633
Rear Left Dash.
160
707900133
Insert.
170
503189273
Washer.
180
293150230
Tuflok Plastic Rivet.
1800
707900220
LH Rear Deflector.
1810
293150230
Tuflok Plastic Rivet.
1840
250000720
Torx Screw K50 X 16.
1850
250200040
Flat Washer.
1860
250000712
Torx Screw M6 X 20.
1870
233261494
Hex. Elastic Flanged Nut M6.
1880
293150230
Tuflok Plastic Rivet.
1910
707900182
Heat Shield.
1920
707900183
Heat Shield.
20
293150230
Tuflok Plastic Rivet.
2000
707900219
RH Rear Deflector.
2010
293150230
Tuflok Plastic Rivet.
2040
250000720
Torx Screw K50 X 16.
2050
250000760
Torx Screw Truss Head K50X20 T20.
2060
234062670
Flat Washer, Stainless.
2070
293150230
Tuflok Plastic Rivet.
2095
707900167
Heat Shield.
2096
707900184
Heat Shield.
21
707900133
Insert.
22
503189273
Washer.
23
234062670
Flat Washer, Stainless.
24
250000722
Torx Screw M6 X 20.
2400
707900011
Passenger Handle.
2410
250000722
Torx Screw M6 X 20.
2420
707900048
Connector Tube.
2450
707900103
Handle.
2460
250000722
Torx Screw M6 X 20.
2470
707900048
Connector Tube.
25
250000957
Extruded Panel Nut M6.
250
707900002
RH Side Console.
260
293150230
Tuflok Plastic Rivet.
270
707900133
Insert.
280
503189273
Washer.
30
707900036
Cup Retainer.
300
707900080
RH Rear Console Panel.
3000
707900088
Shift Lever Indicator.
310
707900133
Insert.
3100
250000728
Torx Screw M6 X 25.
320
503189273
Washer.
330
293150230
Tuflok Plastic Rivet.
3330
707900621
LH Lower Lateral Console Foam.
3340
707900622
RH Lateral Console Foam.
3350
707900623
RH Lateral Console Foam.
3360
707900624
RH Lateral Console Foam.
3415
707900625
LH Rear Lateral Foam.
3420
707900626
LH Rear Lateral Foam.
3435
707900627
RH Rear Lateral Foam.
3455
707900628
Front Central Foam.
3460
707900629
Front Central Foam.
3465
707900630
Front Central Foam.
3600
250000742
Torx Screw M5 X 14. Not Shown.
3610
250200040
Flat Washer. Not Shown.
3615
207562054
Flanged Hex. Screw S.GRIP M6 X 20. Not Shown.
3620
207682044
Hex. Flanged Screw M8 X 20. Not Shown.
3625
233281414
Hex. Flanged Elastic Nut M8. Not Shown.
40
707900100
Cup Holder.
45
293150230
Tuflok Plastic Rivet.
50
707900075
Rear Central Console.
60
707900229
Rear Console Cover Kit.
70
517303756
Grommet.
700
707900082
LH Rear Upper Floor Cover.
710
293150230
Tuflok Plastic Rivet.
720
707900133
Insert.
730
503189273
Washer.
735
250000722
Torx Screw M6 X 20.
736
234062670
Flat Washer, Stainless.
740
250000758
Torx Screw M6 X 25.
745
250000957
Extruded Panel Nut M6.
80
293150230
Tuflok Plastic Rivet.
85
707900133
Insert.
90
503189273
Washer.
