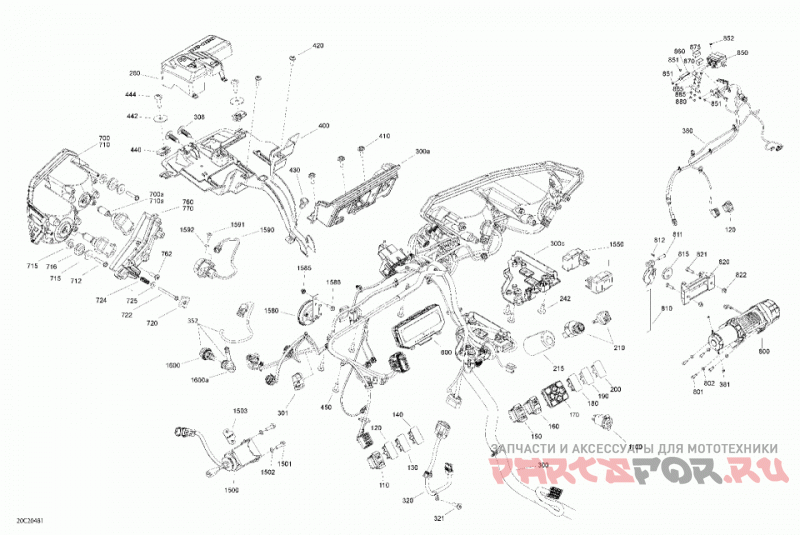

10- electric - system - front section

Can-Am (Bombardier) 002 - Traxter T HD8 - T Regulation

Can-Am (Bombardier)
#oem кодцена
110
710006107
Hazard Lights Switch.
1100
710005374
12V Power Outlet.
120
710001999
Plug Carling. BASE.
120
710002052
Winch Switch. PRO.
130
710001999
Plug Carling.
140
710001999
Plug Carling.
150
710005489
Switch 2X4.
1500
710001721
Turn Signal.
1501
210251650
Hex. Forming Screw M5 X 16.
1502
234151401
Lock Washer 5 mm.
1503
704902614
Flasher Decal.
1550
710003239
Flasher Unit.
1580
710004791
Horn.
1585
250100199
Insert Half Hex Body M6 x 1.0.
1586
207662054
Hex. Flanged Screw M6 X 20.
1590
710002964
Flasher.
1591
250000721
Torx Truss Screw M6 X 16.
1592
234061410
Flat Washer 6 mm.
160
710005470
Differential Lock Switch.
1600
710001726
Day Light. Includes 1600 to 1600a.
1600a
710003269
Cap Protector.
170
710006650
Multifonction Switch.
180
710001999
Plug Carling.
190
710001999
Plug Carling.
200
710001999
Plug Carling.
210
710004198
Ignition Switch With Keys.
215
710005739
Key Switch Protector.
242
250000959
Screw PT Type K-50 X 16.
260
710006707
Junction Block Cover.
300
710006753
Main Wiring Harness. Includes 300 to 300c.
300a
710006640
Fusebox Support.
300c
710006706
Connector Support.
301
710005760
DPS Connector Cap. BASE.
308
293730006
Black, Dart.
320
710006837
Throttle Pedal Harness.
321
250000720
Torx Screw K50 X 16.
352
710005676
Position Light Harness.
380
710006653
Winch Wiring Harness. PRO.
381
232561434
Elastic Stop Nut M6. PRO.
400
710006649
Wiring Harness Support.
410
250000959
Screw PT Type K-50 X 16.
420
250000720
Torx Screw K50 X 16.
430
293150230
Tuflok Plastic Rivet.
440
250000957
Extruded Panel Nut M6.
442
250200029
Washer M6.
444
250000712
Torx Screw M6 X 20.
450
250000720
Torx Screw K50 X 16.
600
710006854
Speedometer.
700a
715900653
Halogen Bulb H8 12V 35W Blue.
710a
715900653
Halogen Bulb H8 12V 35W Blue.
712
241152540
Hex. Flanged Screw K50 X 2.24 X 25.
715
710004749
Shoulder Bushing.
716
709000582
Grommet.
720
572106600
Handle.
722
250000718
Hex. Screw K40 X 45.
724
517168600
Spring.
725
234042600
Flat Washer 4 mm, Stainless.
760
705013593
Deep Black, LH Front Headlight Trim. PRO.
762
250000720
Torx Screw K50 X 16.
770
705013595
Deep Black, RH Front Headlight Trim. PRO.
800
710006993
Electric Winch. PRO.
801
205083044
Socket Head Screw M8 X 30. PRO.
802
234181401
Lock Washer 8 mm. PRO.
815
710007028
Stopper. PRO.
820
710006996
Fairlead Roller. PRO.
821
205003044
Socket Screw M10 x 30. PRO.
822
233201414
Hex. Flanged Elastic Nut M10. PRO.
850
710006991
Solenoid. PRO.
851
232561200
Elastic Stop Nut M6, Brass. PRO.
852
250000720
Torx Screw K50 X 16. PRO.
860
710004772
Power Bar. PRO.
865
710006401
Copper Busbar. PRO.
870
710004873
Power Bar. PRO.
875
710007039
Circuit Breaker 50 Amp. PRO.
880
250100071
Hex. Flanged Nut M5. PRO.
885
234161601
Lock Washer Helical M6. PRO.
