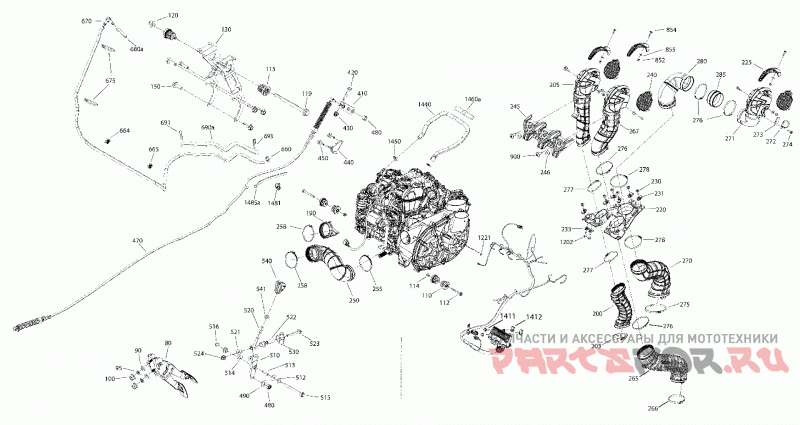

01- engine maverick - turbo r - package xmr

Can-Am (Bombardier) 003 - Maverick Turbo R - International

Can-Am (Bombardier)
#oem кодцена
80
707001803
Pedal Throttle
90
707001990
Втулка
95
250100031
Push Nut
100
233081436
Hex. Flanged Nut M8
110
707001807
Anti-Vibration Mount
112
207609046
Screw-Hex Flange M10 X 90
114
233201436
Flanged Elastic Nut M10
115
707001808
Anti-Vibration Mount
119
230602546
Hex. Flanged Screw M10 X 125
120
233201436
Flanged Elastic Nut M10
130
707001881
Rear Engine Support
150
207582544
Hex. Flanged Screw M8 X 25, Scotch Grip
190
706600248
Front CVT Duct
200
706600225
Front CVT Duct
203
514052924
Norma Clamp
205
706600250
Top Front CVT Duct
220
706600253
Hoes Support
225
707002086
Крышка
230
250000722
Torx Screw M6 X 20
231
250000957
Extruded Panel Nut M6
233
250000958
Panel Nut M5 X 0.8
245
706600276
Hose Holder
246
293150103
Pop Rivet 3/16
250
706600224
Front CVT Duct
255
514052983
Norma Gear Clamp
258
514052983
Norma Gear Clamp
265
706600222
Rear Duct
266
514052983
Norma Gear Clamp
267
706600251
Top Rear Intake Duct
270
706600223
Rear CVT Duct
271
706600252
Top Reear CVT Exhaust Duct
272
293850133
Open Clamp
273
705013076
Пластина
274
250000881
Torx Truss M8 X 16
275
514052861
Gear Clamp (Norma)
276
514052983
Norma Gear Clamp
277
293650096
Clamp Norma
278
293650054
Tridon Clamp
280
706600270
Mid Rear CVT Exhaust Duct
285
707002266
Адаптер
410
707000911
Рычаг
420
207663544
Hex. Flanged Screw M6 X 35
430
233261414
Hex. Flanged Elastic Nut M6 x 1.0
440
707001614
Cable Support
450
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip
470
707001809
Shifting Cable
480
232581414
Hex. Elastic Stop Nut M8
490
234001410
Flat Washer 10 mm
510
707000828
Lower Lever Arm
512
707000847
Flanged Bushing
513
707001376
Втулка
514
234062410
Flat Washer 6 mm
515
207667056
Hex. Flange Screw M6 X 70
516
233261414
Hex. Flanged Elastic Nut M6 x 1.0
520
707000711
Upper Lever Arm
521
707000869
Flanged Bushing
522
707001376
Втулка
523
207665044
Hex. Flanged Screw M6 X 50
524
233261414
Hex. Flanged Elastic Nut M6 x 1.0
530
707000750
Lever Arm Spring
540
707000965
Lever Button
541
232180491
Hex. Jam Nut M8
660
293650042
Oetiker Clamp
664
293750058
Locking Tie Rap
665
293750058
Locking Tie Rap
670
293710171
Elbow Fitting
675
293750008
Tie-Rap 350 mm
680a
293830193
Polyurethane Hose
690a
710004711
Tubing 13 mm
691
414115200
Стяжка 180мм
693
414115200
Стяжка 180мм
852
233251494
Elastic Flanged Nut M5
854
250000792
Torx Screw M5 X 20
855
234052600
Flat Washer 5 mm, Stainless
900
250000851
Torx Screw M6 X 14
1202
207552044
Hex. Flanged Screw M5 X 20, Scotch Grip
1221
293650262
Oeticker Clamp
1411
207662554
Hex. Flanged Screw M6 X 25
1412
250100198
Panel Nut , M6 X 1.0
1440
707001931
Hose Vent
1450
293650051
Tridon Gear Clamp
1460a
710005587
Tubing 22 mm
1481
710005037
Зажим
1485a
415079900
Tubing 10 mm
