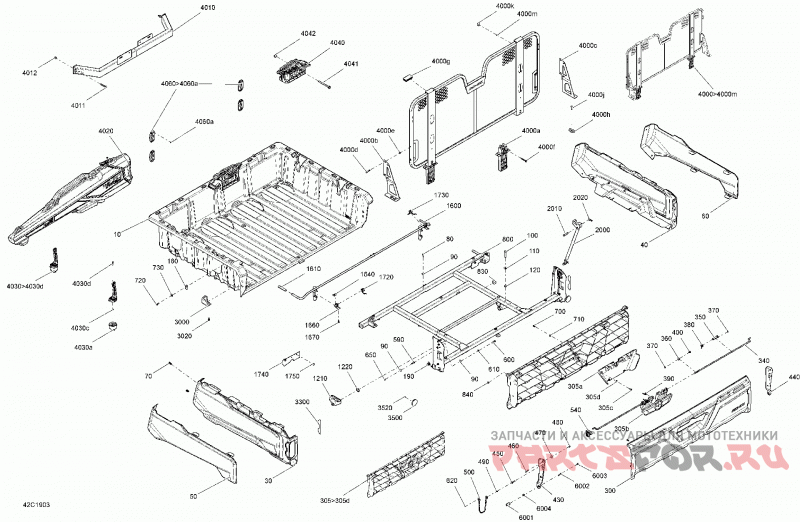

09- rear cargo box defender - hunting edition

Can-Am (Bombardier) 003 - Defender HD10 - North America

Can-Am (Bombardier)
#oem кодцена
30
708302578
LH Panel
40
708302579
RH Panel
50
708301929
Camo, LH Fascia Cargo Box
60
708301930
Camo, RH Fascia Cargo Box
70
293150230
Tuflok Plastic Rivet
80
250000728
Torx Screw M6 X 25
90
250200162
Flat Washer M6.6 X 22
100
207786044
Carriage Bolt M8 X 60
110
234082410
Flat Washer 8 mm
120
233281414
Hex. Flanged Elastic Nut M8 X 1.25
180
250100177
Panel nut M6
190
250000957
Extruded Panel Nut M6
200
708302584
Deflector
210
293150108
Pop Rivet 3/16?
220
517124300
Шайба
300
708301227
Outside Tailgate
305a
708302913
Handle Support
305b
708302911
Руль
305c
250000760
Torx Screw Truss Head K50X20 T20
305d
250200025
Washer M5
340
708301500
Handle Rod
350
708301634
Pivot bushing
360
708301653
Шайба
370
269800431
Hairpin
380
705009468
Пружина
390
705009470
Пружина
400
705009471
Пружина
430
708301647
LH Tailgate Support
440
708301649
RH Tailgate Support
450
207663554
Screw Hex Flange M6 X 35
460
207662554
Hex. Flanged Screw M6 X 25
470
250200162
Flat Washer M6.6 X 22
480
233261414
Hex. Flanged Elastic Nut M6 x 1.0
490
708300737
Втулка
500
708301491
Провод
540
708301501
Lock
590
207662554
Hex. Flanged Screw M6 X 25
600
207663554
Screw Hex Flange M6 X 35
610
224061121
Шайба
620
708300737
Втулка
650
233261414
Hex. Flanged Elastic Nut M6 x 1.0
700
250000760
Torx Screw Truss Head K50X20 T20
710
250200025
Washer M5
720
250000807
Torx Screw M6 X 25
730
250200162
Flat Washer M6.6 X 22
800
708302740
Cargo Box Frame
830
708001827
Резиновые стопоры
840
293830005
Rubber Bumper
1210
708301576
Pivot Bracket
1220
293300131
Уплотнительное кольцо
1610
708300358
Cap Latch Lever
1640
705500033
Half Ring
1660
708301479
Clamp Retainer
1670
210261640
Hex Flanged Screw M6 X 16
1720
708301983
Пружина
1730
708301984
Пружина
1740
708302267
Deflector
1750
293150230
Tuflok Plastic Rivet
2000
708301461
Shock
2010
250400075
Clevis Pin
2020
414575600
Hair Pin
3000
708301480
Retaining Plate
3020
207662054
Hex. Flanged Screw M6 X 20
3300
704905074
Отражатель
3500
705011221
Red Reflector
3520
232551414
Elastic Stop Nut M5
4000
708302326
Headache Rack Kit
4000a
715003498
Adjuster Foot
4000b
708301759
LH Corner Support
4000c
708301760
RH Corner Support
4000d
229000037
Hexagonal Flanged Screw M6 X 40
4000e
233261494
Hex. Elastic Flanged Nut M6
4000f
229000023
Hexagonal Flanged Screw M6 X 55
4000g
705204964
Крышка
4000h
708301907
Пластина
4000j
250000841
Screw Hex Flange M6 X 25
4000k
293830179
Амортизатор ударов
4000m
390401600
Pop Rivet 1/8
4010
708302307
Firearm Support
4011
207686044
Hex. Flanged Screw M8 x 60
4012
233281414
Hex. Flanged Elastic Nut M8 X 1.25
4013
250200158
Flat Washer M8
4020
705011442
Firearm Boot Case
4030
715003059
Tool Holder Kit
4030a
705010209
Tool Holder Base
4030b
232561494
Elastic Stop Nut M6
4030c
235563054
Torx Screw M6 X 30
4040
705011441
Firearm Mount
4041
230602546
Hex. Flanged Screw M10 X 125
4042
233201436
Flanged Elastic Nut M10
4060
715003058
Adaptor Kit
4060a
293150102
Rivet 3/16
4070
708302424
LH Protector Support
4080
708302425
RH Protector Support
4090
250200158
Flat Washer M8
4100
233261414
Hex. Flanged Elastic Nut M6 x 1.0
4110
207663554
Screw Hex Flange M6 X 35
